KT3225K26000DEU33T,智能穿戴設備晶振,3225無線通信模塊晶振
頻率：26MHz
尺寸：3.20mm x 2.50mm
KT3225K26000DEU33T,智能穿戴設備晶振,3225無線通信模塊晶振是一款專為智能穿戴設備和3225無線通信模塊打造的優質晶振.其3.2mm×2.5mm的3225振蕩器封裝尺寸,完美適配設備內部緊湊空間.26MHz的標稱頻率,京瓷晶振為無線通信模塊的信號處理和數據傳輸提供穩定時鐘基準,在智能穿戴設備中,低功耗設計延長電池續航,出色的溫度穩定性確保設備在日常溫度變化下精準運行.具備良好的環境適應能力,可應對一定振動和溫度波動,為智能穿戴設備的健康監測等功能和無線通信模塊的穩定運行保駕護航.
訂購熱線：0755-27837162
KT3225K26000DEU33T,智能穿戴設備晶振,3225無線通信模塊晶振

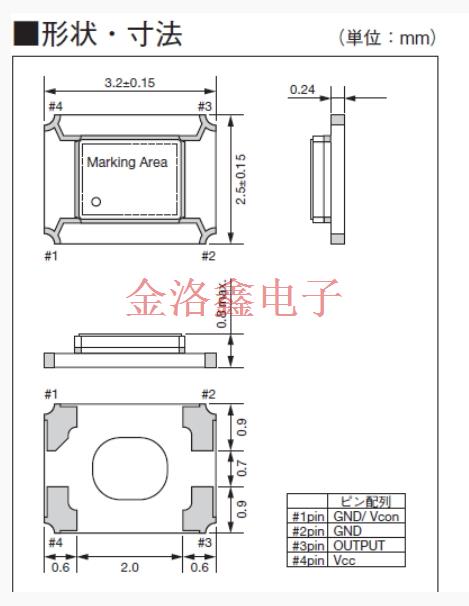

KT3225K26000DEU33T的型號包含了關鍵的規格信息,3225石英晶體清晰表明其封裝尺寸為3.2mm×2.5mm,屬于3225系列晶振的標準規格.這種尺寸在保證一定性能的同時,兼顧了小型化需求,能夠較好地適應智能穿戴設備和無線通信模塊內部緊湊的空間布局.
該晶振的標稱頻率為26MHz,這一頻率在無線通信領域應用廣泛,能夠為無線通信模塊中的信號處理,數據傳輸?shù)拳h(huán)節提供穩定的時鐘基準,確保模塊高效,準確地完成通信任務.同時,作為表面貼裝型晶振,它可與其他表面貼裝元器件兼容自動化生產流程,提高生產效率,保障產品質量的一致性.在功耗方面,智能穿戴設備通常依賴電池供電,續航能力是用戶關注的重點.KT3225K26000DEU33T采用低功耗設計,工作電流小,能夠有效降低設備的整體能耗,延長電池續航時間,滿足用戶對設備長時間使用的需求.
該晶振的標稱頻率為26MHz,這一頻率在無線通信領域應用廣泛,能夠為無線通信模塊中的信號處理,數據傳輸?shù)拳h(huán)節提供穩定的時鐘基準,確保模塊高效,準確地完成通信任務.同時,作為表面貼裝型晶振,它可與其他表面貼裝元器件兼容自動化生產流程,提高生產效率,保障產品質量的一致性.在功耗方面,智能穿戴設備通常依賴電池供電,續航能力是用戶關注的重點.KT3225K26000DEU33T采用低功耗設計,工作電流小,能夠有效降低設備的整體能耗,延長電池續航時間,滿足用戶對設備長時間使用的需求.
KT3225K26000DEU33T,智能穿戴設備晶振,3225無線通信模塊晶振
| 原廠型號 Original model ： | KT3225K26000DEU33T | 品牌 brand ： | 京瓷晶振 |
| Manufacturer品牌 | 京瓷晶振 | Operating Temperature溫度 | -20 ~ +75°C |
| Series型號 | KT3225K | Current - Supply (Max) | - |
| Type 類型 | TCXO | Package Height高度 | 0.8mm |
| Frequency 頻率 | 26M | Termination 腳位 | 4 pads |
| 輸出方式 Output： | 削峰正弦波晶振 | Package Type 封裝類型 | 4-SMD |
| Voltage - Supply電壓 | 3.3V | Packaging 包裝 | Tape and Reel |
| Frequency Stability頻率穩定度 | ±2.0ppm | 安裝方式 Installation ： | Surface mount |
| Size / Dimension 尺寸 | 3225mm | 最小包裝數 MPQ ： | 3000 |
KT3225K26000DEU33T,智能穿戴設備晶振,3225無線通信模塊晶振
KT3225K26000DEU33T,智能穿戴設備晶振,3225無線通信模塊晶振
| KC2016K1.50000C10E00 | 2.0 x 1.6mm | 0.8 | 1.5 | -10 | 70 | ± 50 | CMOS |
| KC2016K1.50000C16E00 | 2.0 x 1.6mm | 0.8 | 1.5 | -40 | 105 | ± 50 | CMOS |
| KC2016K1.50000C1GE00 | 2.0 x 1.6mm | 0.8 | 1.5 | -40 | 85 | ± 50 | CMOS |
| KC2016K1.50000C1SE00 | 2.0 x 1.6mm | 0.8 | 1.5 | -10 | 70 | ± 30 | CMOS |
| KC2016K1.50000C1UE00 | 2.0 x 1.6mm | 0.8 | 1.5 | -10 | 70 | ± 25 | CMOS |
| KC2016K1.84320C10E00 | 2.0 x 1.6mm | 0.8 | 1.8432 | -10 | 70 | ± 50 | CMOS |
| KC2016K1.84320C16E00 | 2.0 x 1.6mm | 0.8 | 1.8432 | -40 | 105 | ± 50 | CMOS |
| KC2016K1.84320C1GE00 | 2.0 x 1.6mm | 0.8 | 1.8432 | -40 | 85 | ± 50 | CMOS |
| KC2016K1.84320C1SE00 | 2.0 x 1.6mm | 0.8 | 1.8432 | -10 | 70 | ± 30 | CMOS |
| KC2016K1.84320C1UE00 | 2.0 x 1.6mm | 0.8 | 1.8432 | -10 | 70 | ± 25 | CMOS |
| KC2016K10.0000C10E00 | 2.0 x 1.6mm | 0.8 | 10 | -10 | 70 | ± 50 | CMOS |
| KC2016K10.0000C16E00 | 2.0 x 1.6mm | 0.8 | 10 | -40 | 105 | ± 50 | CMOS |
| KC2016K10.0000C1GE00 | 2.0 x 1.6mm | 0.8 | 10 | -40 | 85 | ± 50 | CMOS |
| KC2016K10.0000C1SE00 | 2.0 x 1.6mm | 0.8 | 10 | -10 | 70 | ± 30 | CMOS |
| KC2016K10.0000C1UE00 | 2.0 x 1.6mm | 0.8 | 10 | -10 | 70 | ± 25 | CMOS |
| KC2016K10.2400C10E00 | 2.0 x 1.6mm | 0.8 | 10.24 | -10 | 70 | ± 50 | CMOS |
| KC2016K10.2400C16E00 | 2.0 x 1.6mm | 0.8 | 10.24 | -40 | 105 | ± 50 | CMOS |
| KC2016K10.2400C1GE00 | 2.0 x 1.6mm | 0.8 | 10.24 | -40 | 85 | ± 50 | CMOS |
| KC2016K10.2400C1SE00 | 2.0 x 1.6mm | 0.8 | 10.24 | -10 | 70 | ± 30 | CMOS |
| KC2016K10.2400C1UE00 | 2.0 x 1.6mm | 0.8 | 10.24 | -10 | 70 | ± 25 | CMOS |
| KC2016K10.5554C10E00 | 2.0 x 1.6mm | 0.8 | 10.5554 | -10 | 70 | ± 50 | CMOS |
| KC2016K10.5554C16E00 | 2.0 x 1.6mm | 0.8 | 10.5554 | -40 | 105 | ± 50 | CMOS |
| KC2016K10.5554C1GE00 | 2.0 x 1.6mm | 0.8 | 10.5554 | -40 | 85 | ± 50 | CMOS |
| KC2016K10.5554C1SE00 | 2.0 x 1.6mm | 0.8 | 10.5554 | -10 | 70 | ± 30 | CMOS |
| KC2016K10.5554C1UE00 | 2.0 x 1.6mm | 0.8 | 10.5554 | -10 | 70 | ± 25 | CMOS |
| KC2016K100.000C10E00 | 2.0 x 1.6mm | 0.8 | 100 | -10 | 70 | ± 50 | CMOS |
| KC2016K100.000C16E00 | 2.0 x 1.6mm | 0.8 | 100 | -40 | 105 | ± 50 | CMOS |
| KC2016K100.000C1GE00 | 2.0 x 1.6mm | 0.8 | 100 | -40 | 85 | ± 50 | CMOS |
| KC2016K100.000C1SE00 | 2.0 x 1.6mm | 0.8 | 100 | -10 | 70 | ± 30 | CMOS |
| KC2016K100.000C1UE00 | 2.0 x 1.6mm | 0.8 | 100 | -10 | 70 | ± 25 | CMOS |
| KC2016K11.2896C10E00 | 2.0 x 1.6mm | 0.8 | 11.2896 | -10 | 70 | ± 50 | CMOS |
| KC2016K11.2896C16E00 | 2.0 x 1.6mm | 0.8 | 11.2896 | -40 | 105 | ± 50 | CMOS |
| KC2016K11.2896C1GE00 | 2.0 x 1.6mm | 0.8 | 11.2896 | -40 | 85 | ± 50 | CMOS |
| KC2016K11.2896C1SE00 | 2.0 x 1.6mm | 0.8 | 11.2896 | -10 | 70 | ± 30 | CMOS |
| KC2016K11.2896C1UE00 | 2.0 x 1.6mm | 0.8 | 11.2896 | -10 | 70 | ± 25 | CMOS |
| KC2016K12.0000C10E00 | 2.0 x 1.6mm | 0.8 | 12 | -10 | 70 | ± 50 | CMOS |
| KC2016K12.0000C16E00 | 2.0 x 1.6mm | 0.8 | 12 | -40 | 105 | ± 50 | CMOS |
| KC2016K12.0000C1GE00 | 2.0 x 1.6mm | 0.8 | 12 | -40 | 85 | ± 50 | CMOS |
| KC2016K12.0000C1SE00 | 2.0 x 1.6mm | 0.8 | 12 | -10 | 70 | ± 30 | CMOS |
| KC2016K12.0000C1UE00 | 2.0 x 1.6mm | 0.8 | 12 | -10 | 70 | ± 25 | CMOS |
| KC2016K12.2880C10E00 | 2.0 x 1.6mm | 0.8 | 12.288 | -10 | 70 | ± 50 | CMOS |
| KC2016K12.2880C16E00 | 2.0 x 1.6mm | 0.8 | 12.288 | -40 | 105 | ± 50 | CMOS |
| KC2016K12.2880C1GE00 | 2.0 x 1.6mm | 0.8 | 12.288 | -40 | 85 | ± 50 | CMOS |
| KC2016K12.2880C1SE00 | 2.0 x 1.6mm | 0.8 | 12.288 | -10 | 70 | ± 30 | CMOS |
| KC2016K12.2880C1UE00 | 2.0 x 1.6mm | 0.8 | 12.288 | -10 | 70 | ± 25 | CMOS |
| KC2016K12.4560C10E00 | 2.0 x 1.6mm | 0.8 | 12.456 | -10 | 70 | ± 50 | CMOS |
| KC2016K12.4560C16E00 | 2.0 x 1.6mm | 0.8 | 12.456 | -40 | 105 | ± 50 | CMOS |
| KC2016K12.4560C1GE00 | 2.0 x 1.6mm | 0.8 | 12.456 | -40 | 85 | ± 50 | CMOS |
| KC2016K12.4560C1SE00 | 2.0 x 1.6mm | 0.8 | 12.456 | -10 | 70 | ± 30 | CMOS |
| KC2016K12.4560C1UE00 | 2.0 x 1.6mm | 0.8 | 12.456 | -10 | 70 | ± 25 | CMOS |
| KC2016K12.5000C10E00 | 2.0 x 1.6mm | 0.8 | 12.5 | -10 | 70 | ± 50 | CMOS |
| KC2016K12.5000C16E00 | 2.0 x 1.6mm | 0.8 | 12.5 | -40 | 105 | ± 50 | CMOS |
| KC2016K12.5000C1GE00 | 2.0 x 1.6mm | 0.8 | 12.5 | -40 | 85 | ± 50 | CMOS |
| KC2016K12.5000C1SE00 | 2.0 x 1.6mm | 0.8 | 12.5 | -10 | 70 | ± 30 | CMOS |
| KC2016K12.5000C1UE00 | 2.0 x 1.6mm | 0.8 | 12.5 | -10 | 70 | ± 25 | CMOS |
| KC2016K125.000C10E00 | 2.0 x 1.6mm | 0.8 | 125 | -10 | 70 | ± 50 | CMOS |
| KC2016K125.000C16E00 | 2.0 x 1.6mm | 0.8 | 125 | -40 | 105 | ± 50 | CMOS |
| KC2016K125.000C1GE00 | 2.0 x 1.6mm | 0.8 | 125 | -40 | 85 | ± 50 | CMOS |
| KC2016K125.000C1SE00 | 2.0 x 1.6mm | 0.8 | 125 | -10 | 70 | ± 30 | CMOS |
| KC2016K125.000C1UE00 | 2.0 x 1.6mm | 0.8 | 125 | -10 | 70 | ± 25 | CMOS |
