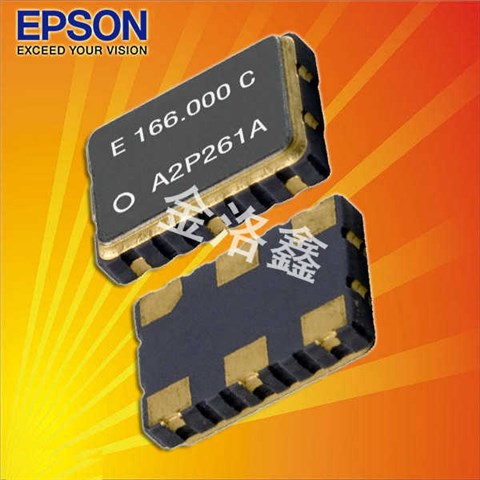

SG5032VAN 156.250000M-KJGA|156.25MHz|5032mm|50ppm|LVDS差分輸出晶振,SG5032VAN 156.250000M-KJGA晶振,頻率156.25MHz,尺寸5032mm,精度50ppm,LVDS差分輸出晶振,工作溫度-40~85℃,衛星通訊晶振,智能家居晶振,車載安防晶振.
SG5032VAN156.250000MKJGA|156.25MHz|5032mm|50ppm|LVDS差分輸出晶振
|

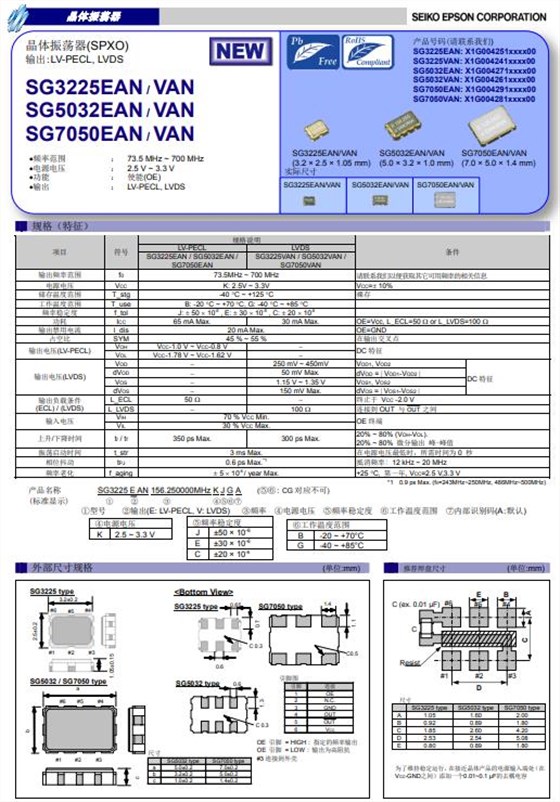

愛普生晶振規格 |
SG5032VAN晶振 |
石英晶振基本條件 |
|
標準頻率 |
156.25MHz |
標準頻率，可提供其他頻率 |
|
儲存溫度 |
-40℃~+125℃ |
裸存 |
|
工作溫度 |
-40℃~+85℃ |
標準溫度 |
|
上升(Tr) /下降(Tf)時間 |
3 ns Max. |
|
|
頻率穩定度 |
±50ppm
|
+25°C對于超出標準的規格說明,
請聯系我們以便獲取相關的信息,http://www.kyoceracrystal.com/
|
|
啟動時間 |
3 ms Max. |
超出標準的規格請聯系我們. |
|
輸出負載 |
15pF |
超出標準說明,請聯系我們. |
| 輸出方式 | LVDS |
|
| 電源電流 |
30mA Max. |
|
|
電源電壓 |
2.5~3.3V
|
|
|
頻率老化 |
±5×10-6/year Max. |
+25°C,第一年 |
SG5032VAN 156.250000M-KJGA|156.25MHz|5032mm|50ppm|LVDS差分輸出晶振
| 編碼 | Model/型號 | Frequency/頻率 | LxWxH/尺寸 | Output Wave/輸出方式 | Supply Voltage/電源電壓 | Ope Temperature/工作溫度 |
| X1G0042610001 | SG5032VAN | 100.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042610002 | SG5032VAN | 125.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042610003 | SG5032VAN | 125.006250 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042610005 | SG5032VAN | 200.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042610006 | SG5032VAN | 156.250000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042610007 | SG5032VAN | 400.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042610008 | SG5032VAN | 106.250000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042610009 | SG5032VAN | 212.500000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042610010 | SG5032VAN | 74.250000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042610011 | SG5032VAN | 148.500000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042610012 | SG5032VAN | 75.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042610013 | SG5032VAN | 150.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042610015 | SG5032VAN | 312.500000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042610016 | SG5032VAN | 312.515625 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042610017 | SG5032VAN | 161.132800 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042610020 | SG5032VAN | 125.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042610021 | SG5032VAN | 125.006250 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042610023 | SG5032VAN | 100.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042610024 | SG5032VAN | 200.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042610025 | SG5032VAN | 400.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042610026 | SG5032VAN | 106.250000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042610027 | SG5032VAN | 212.500000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042610028 | SG5032VAN | 74.250000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042610029 | SG5032VAN | 148.500000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042610030 | SG5032VAN | 75.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042610031 | SG5032VAN | 150.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042610033 | SG5032VAN | 156.250000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042610034 | SG5032VAN | 312.500000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042610035 | SG5032VAN | 312.515625 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042610036 | SG5032VAN | 161.132800 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -40 to 85 °C |
| X1G0042610039 | SG5032VAN | 125.000000 MHz | 5.00 x 3.20 x 1.20 mm | LVDS | 2.250 to 3.630 V | -20 to 70 °C |
