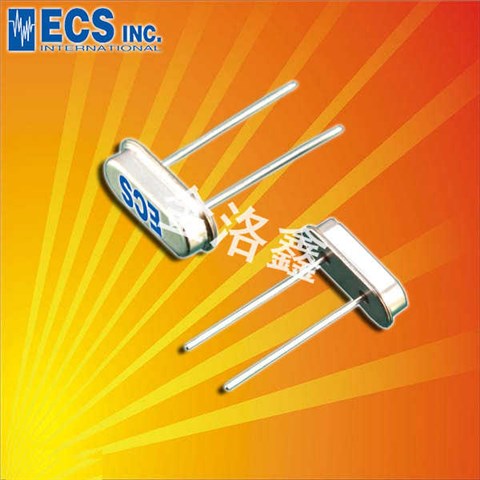

ECS-200-20-4VX,ECS進口晶振,20MHz,20pf,ECS-200-20-4VX晶振,ECS進口晶振,HC-49USSX插件晶振,美國晶振,石英晶體諧振器,頻率20MHz,負載20pf,工作溫度-10~70°C,無源晶振,無鉛環保晶振,家用電視機頂盒晶振,智能家居晶振,數碼影音晶振,數字水表晶振.

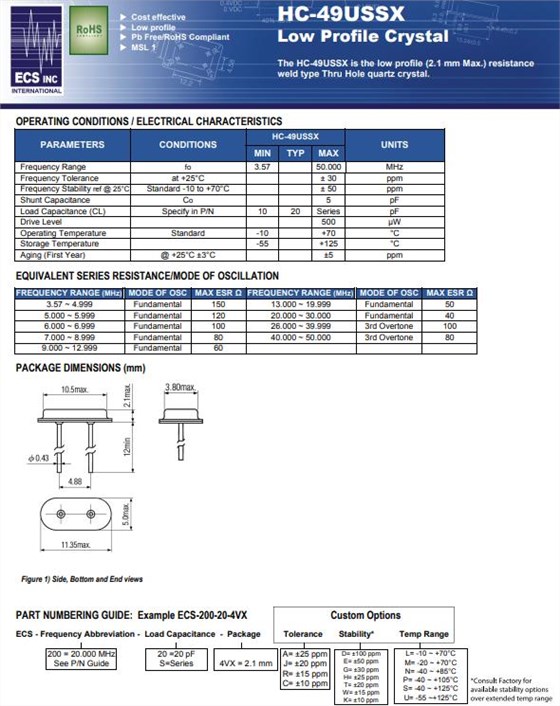

ECS-200-20-4VX,ECS進口晶振,20MHz,20pf參數表
參數
條件
HC-49USSX
頻率
20MHz
頻率公差
at +25°C
±30PPM
頻率穩定性
-10°Cto+70°C
±50PPM
負載電容
Specify in P/N
20pF
激勵功率
500μWMax
工作溫度
-10°Cto+70°C
保存溫度
-55°Cto+125°C
并聯電容
5.0pF
老化
@ +25°C ±3°C
±5ppm

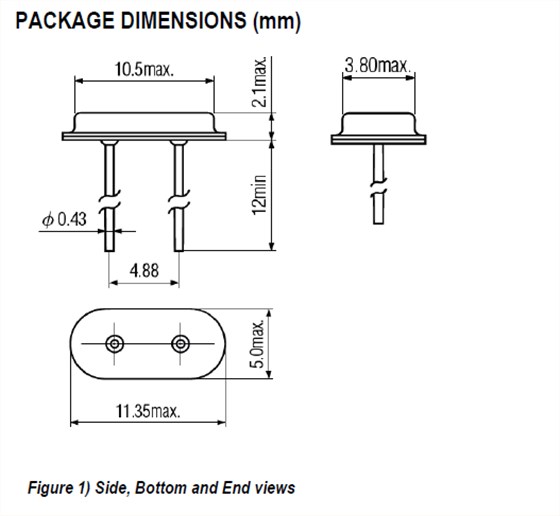

ECS-200-20-4VX,ECS進口晶振,20MHz,20pf尺寸圖
| ECS原廠編碼 | 型號 | 頻率 | 頻率穩定度 | 頻率偏差 | 負載電容 | 工作溫度 |
| ECS-100-20-4VX | HC-49USSX | 10MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-110.5-20-4VX | HC-49USSX | 11.0592MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-120-18-4VX | HC-49USSX | 12MHz | ±50ppm | ±30ppm | 18pF | -10°C ~ 70°C |
| ECS-120-32-4VX | HC-49USSX | 12MHz | ±50ppm | ±30ppm | 32pF | -10°C ~ 70°C |
| ECS-122.8-20-4VX | HC-49USSX | 12.288MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-143-20-4VX | HC-49USSX | 14.31818MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-147.4-20-4VX | HC-49USSX | 14.7456MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-160-20-4VX | HC-49USSX | 16MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-184-20-4VX | HC-49USSX | 18.432MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-200-20-4VX | HC-49USSX | 20MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-240-20-4VX | HC-49USSX | 24MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-245.7-20-4VX | HC-49USSX | 24.576MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-250-20-4VX | HC-49USSX | 25MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-270-20-4VX | HC-49USSX | 27MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-35-18-4VX | HC-49USSX | 3.579545MHz | ±50ppm | ±30ppm | 18pF | -10°C ~ 70°C |
| ECS-36-20-4VX | HC-49USSX | 3.6864MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-40-20-4VX | HC-49USSX | 4MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-60-20-4VX | HC-49USSX | 6MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-80-20-4VX | HC-49USSX | 8MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-98.3-20-4VX | HC-49USSX | 9.8304MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
