TX0283D晶振,TST嘉碩晶振,3225有源晶振
頻率：24MHz

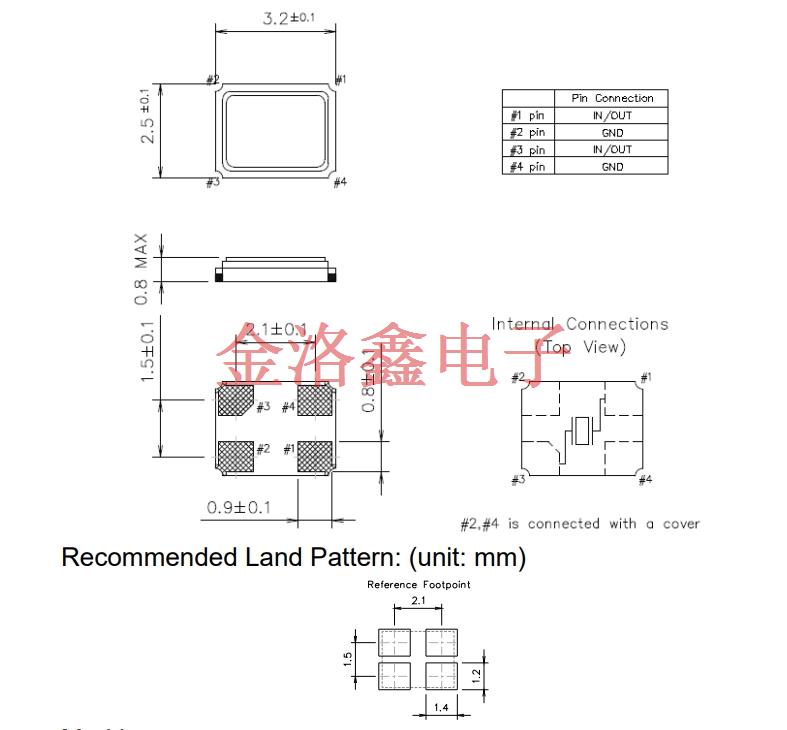

尺寸：3.20mm x 2.50mm
TX0283D晶振,TST嘉碩晶振,3225有源晶振
TX0283D晶振采用無鉛環保陶瓷封裝,完全符合RoHS2.0(限制10項有害物質)與REACH(SVHC清單合規)環保標準,規避下游產品環保認證風險.引腳采用高附著力鍍錫工藝(錫層厚度≥8μm),可直接適配0201-3225全尺寸SMT表面貼裝技術,與高速貼片機(如松下NPM-D3)高效兼容,貼裝良率可達99.8%以上,大幅降低電子設備的組裝成本與生產周期.3225貼裝晶振緊湊封裝尺寸能在PCB板上節省約40%布局空間,尤其適配TWS耳機充電盒,智能手環主板,小型家電控制器等高密度集成產品,為設備小型化,輕薄化設計提供關鍵支持.
TX0283D晶振,TST嘉碩晶振,3225有源晶振
| 原廠型號 Originalmodel： | TX0283D | 品牌brand： | TST嘉碩 |
| Manufacturer品牌 |
           TST嘉碩電子
|
OperatingTemperature溫度 | -20°C ~ 85°C |
| Series型號 |
          TAI-SAW
|
Current-Supply(Max) | - |
| Type類型 | xo | PackageHeight高度 | 0.80mm |
| Frequency頻率 |
    24MHz
|
Termination 腳位 |
 4-pad
|
| 輸出方式 Output： | CMOS | PackageType 封裝類型 | 4-SMD |
| Voltage-Supply電壓 | 3.3V | Packaging 包裝 | TapeandReel |
| FrequencyStability頻率穩定度 |
      ±2ppm
|
安裝方式 Installation： | Surfacemount |
| Size/Dimension尺寸 | 3225mm | 最小包裝數MPQ： | 3000 |
TX0283D晶振,TST嘉碩晶振,3225有源晶振
TX0283D晶振,TST嘉碩晶振,3225有源晶振
| ECS-2333-160-BN-TR | ECS晶振 | ECS-2333 | XO | 16 MHz | HCMOS | 3.3V | ±50ppm |
| ECS-2033-250-BN | ECS晶振 | ECS-2033 | XO | 25 MHz | CMOS | 3.3V | ±50ppm |
| ECS-2333-500-BN-TR | ECS晶振 | ECS-2333 | XO | 50 MHz | HCMOS | 3.3V | ±50ppm |
| ECS-2018-270-BN | ECS晶振 | ECS-2018 | XO | 27 MHz | HCMOS | 1.8V | ±50ppm |
| ECS-2018-240-BN-TR3 | ECS晶振 | ECS-2018 | XO | 24 MHz | HCMOS | 1.8V | ±50ppm |
| ECS-2033-500-BN | ECS晶振 | ECS-2033 | XO | 50 MHz | CMOS | 3.3V | ±50ppm |
| ECS-3963-250-BN-TR | ECS晶振 | ECS-3963-BN | XO | 25 MHz | HCMOS | 3.3V | ±50ppm |
| ECS-2033-240-BN | ECS晶振 | ECS-2033 | XO | 24 MHz | CMOS | 3.3V | ±50ppm |
| ECS-2033-120-BN | ECS晶振 | ECS-2033 | XO | 12 MHz | CMOS | 3.3V | ±50ppm |
| ECS-327MVATX-2-CN-TR3 | ECS晶振 | ECS-327MVATX | XO | 32.768 kHz | CMOS | 1.6V ~ 3.6V | ±25ppm |
| ECS-327MVATX-3-CN-TR | ECS晶振 | ECS-327MVATX | XO | 32.768 kHz | CMOS | 1.6V ~ 3.6V | ±25ppm |
| ECS-3225MV-260-CN-TR | ECS晶振 | ECS-3225MV | XO | 26 MHz | HCMOS | 1.62V ~ 3.63V | ±25ppm |
| ECS-3225MV-240-BN-TR | ECS晶振 | ECS-3225MV | XO | 24 MHz | HCMOS | 1.62V ~ 3.63V | ±50ppm |
| ECS-2018-250-BN | ECS晶振 | ECS-2018 | XO | 25 MHz | HCMOS | 1.8V | ±50ppm |
| ECS-3225MV-500-CN-TR | ECS晶振 | ECS-3225MV | XO | 50 MHz | HCMOS | 1.62V ~ 3.63V | ±25ppm |
| ECS-3225MV-120-BN-TR | ECS晶振 | ECS-3225MV | XO | 12 MHz | HCMOS | 1.62V ~ 3.63V | ±50ppm |
| ECS-3225MV-250-CN-TR3 | ECS晶振 | ECS-3225MV | XO | 25 MHz | HCMOS | 1.8V ~ 3.3V | ±25ppm |
| ECS-3225MV-160-BN-TR | ECS晶振 | ECS-3225MV | XO | 16 MHz | HCMOS | 1.62V ~ 3.63V | ±50ppm |
| ECS-3225MV-500-BN-TR | ECS晶振 | ECS-3225MV | XO | 50 MHz | HCMOS | 1.62V ~ 3.63V | ±50ppm |
| ECS-3225MV-160-CN-TR | ECS晶振 | ECS-3225MV | XO | 16 MHz | HCMOS | 1.62V ~ 3.63V | ±25ppm |
| ECS-2520MV-160-CN-TR | ECS晶振 | ECS-2520MV | XO | 16 MHz | HCMOS | 1.6V ~ 3.6V | ±25ppm |
| ECS-2520MV-250-CN-TR | ECS晶振 | ECS-2520MV | XO | 25 MHz | HCMOS | 1.6V ~ 3.6V | ±25ppm |
| ECS-2520MV-250-BN-TR | ECS晶振 | ECS-2520MV | XO | 25 MHz | HCMOS | 1.6V ~ 3.6V | ±50ppm |
| ECS-2520MV-240-BN-TR | ECS晶振 | ECS-2520MV | XO | 24 MHz | HCMOS | 1.6V ~ 3.6V | ±50ppm |
| ECS-2520MV-120-BL-TR | ECS晶振 | ECS-2520MV | XO | 12 MHz | HCMOS | 1.6V ~ 3.6V | ±50ppm |
| ECS-5032MV-250-CN-TR | ECS晶振 | ECS-5032MV | XO | 25 MHz | HCMOS | 1.6V ~ 3.6V | ±25ppm |
| ECS-2520MV-480-BN-TR | ECS晶振 | ECS-2520MV | XO | 48 MHz | HCMOS | 1.6V ~ 3.6V | ±50ppm |
| ECS-2520MV-080-CN-TR | ECS晶振 | ECS-2520MV | XO | 8 MHz | HCMOS | 1.6V ~ 3.6V | ±25ppm |
| ECS-2033-240-BN-TR3 | ECS晶振 | ECS-2033 | XO | 24 MHz | CMOS | 3.3V | ±50ppm |
| ECS-2033-250-BN-TR3 | ECS晶振 | ECS-2033 | XO | 25 MHz | CMOS | 3.3V | ±50ppm |
| ECS-2520MV-500-BL-TR | ECS晶振 | ECS-2520MV | XO | 50 MHz | HCMOS | 1.6V ~ 3.6V | ±50ppm |
| ECS-2520MV-480-CN-TR | ECS晶振 | ECS-2520MV | XO | 48 MHz | HCMOS | 1.6V ~ 3.6V | ±25ppm |
| ECS-3225MV-250-CN-TR | ECS晶振 | ECS-3225MV | XO | 25 MHz | HCMOS | 1.62V ~ 3.63V | ±25ppm |
| ECS-5032MV-240-CN-TR | ECS晶振 | ECS-5032MV | XO | 24 MHz | HCMOS | 1.6V ~ 3.6V | ±25ppm |
| ECS-3953M-480-B-TR | ECS晶振 | ECS-3953M | XO | 48 MHz | HCMOS | 3.3V | ±50ppm |
| ECS-5032MV-200-CN-TR | ECS晶振 | ECS-5032MV | XO | 20 MHz | HCMOS | 1.6V ~ 3.6V | ±25ppm |
| ECS-2520MVQ-250-CN-TR | ECS晶振 | ECS-2520MVQ | XO | 25 MHz | HCMOS | 1.6V ~ 3.6V | ±25ppm |
| ECS-5032MV-500-CN-TR | ECS晶振 | ECS-5032MV | XO | 50 MHz | HCMOS | 1.6V ~ 3.6V | ±25ppm |
| ECS-3963-040-BN-TR | ECS晶振 | ECS-3963-BN | XO | 4 MHz | HCMOS | 3.3V | ±50ppm |
| ECS-2520MVLC-075-BN-TR | ECS晶振 | ECS-2520MVLC | XO | 7.5728 MHz | CMOS | 1.6V ~ 3.6V | ±50ppm |
| ECS-2520MVLC-081.92-BN-TR | ECS晶振 | ECS-2520MVLC | XO | 8.192 MHz | CMOS | 1.6V ~ 3.6V | ±50ppm |
| ECS-2520MVLC-120-CN-TR | ECS晶振 | ECS-2520MVLC | XO | 12 MHz | CMOS | 1.6V ~ 3.6V | ±25ppm |
| ECS-2520MVLC-271.2-BN-TR | ECS晶振 | ECS-2520MVLC | XO | 27.12 MHz | CMOS | 1.6V ~ 3.6V | ±50ppm |
| ECS-2520MVLC-049-BN-TR | ECS晶振 | ECS-2520MVLC | XO | 4.9152 MHz | CMOS | 1.6V ~ 3.6V | ±50ppm |
| ECS-2520MVLC-250-CN-TR | ECS晶振 | ECS-2520MVLC | XO | 25 MHz | CMOS | 1.6V ~ 3.6V | ±25ppm |
| ECS-3951M-160-B-TR | ECS晶振 | ECS-3951M | XO | 16 MHz | HCMOS | 5V | ±50ppm |
| ECS-5032MV-122.8-CN-TR | ECS晶振 | ECS-5032MV | XO | 12.288 MHz | HCMOS | 1.6V ~ 3.6V | ±25ppm |
| ECS-327MVATX-7-CN-TR | ECS晶振 | ECS-327MVATX | XO | 32.768 kHz | CMOS | 1.6V ~ 3.6V | ±25ppm |
| ECS-5032MV-1250-CN-TR | ECS晶振 | ECS-5032MV | XO | 125 MHz | HCMOS | 1.6V ~ 3.6V | ±25ppm |
| ECS-2018-143-BN | ECS晶振 | ECS-2018 | XO | 14.31818 MHz | HCMOS | 1.8V | ±50ppm |
| ECS-327ATQMV-AS-TR | ECS晶振 | ECS-327ATQMV | XO | 32.768 kHz | CMOS | 1.62V ~ 3.63V | ±100ppm |
| ECS-3963-120-BN-TR | ECS晶振 | ECS-3963-BN | XO | 12 MHz | HCMOS | 3.3V | ±50ppm |
| ECS-3225MVQ-1000-CN-TR | ECS晶振 | ECS-3225MVQ | XO | 100 MHz | HCMOS | 1.7V ~ 3.6V | ±25ppm |
| ECS-3953M-250-B-TR | ECS晶振 | ECS-3953M | XO | 25 MHz | HCMOS | 3.3V | ±50ppm |
| ECS-3963-250-AU-TR | ECS晶振 | ECS-3963 | XO | 25 MHz | HCMOS | 3.3V | ±100ppm |
| ECS-3953M-500-BN-TR | ECS晶振 | ECS-3953M-BN | XO | 50 MHz | HCMOS | 3.3V | ±50ppm |
| ECS-3951M-160-BN-TR | ECS晶振 | ECS-3951M-BN | XO | 16 MHz | HCMOS | 5V | ±50ppm |
| ECS-3953M-250-BN-TR | ECS晶振 | ECS-3953M-BN | XO | 25 MHz | HCMOS | 3.3V | ±50ppm |
| ECS-3953M-120-BN-TR | ECS晶振 | ECS-3953M-BN | XO | 12 MHz | HCMOS | 3.3V | ±50ppm |
| ECS-3953M-018-BN-TR | ECS晶振 | ECS-3953M-BN | XO | 1.8432 MHz | HCMOS | 3.3V | ±50ppm |
