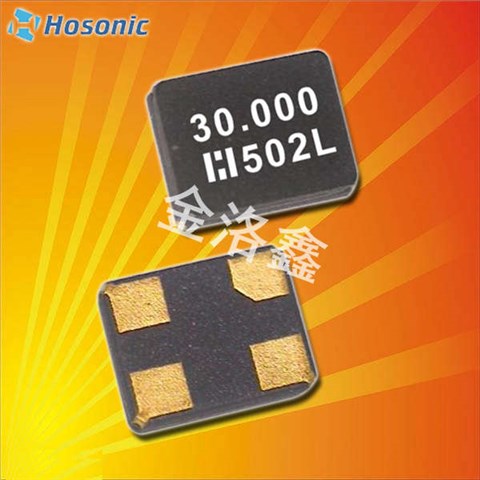

E3FB16.0000F18E33-16MHz-3225mm-臺灣鴻星晶振,E3FB16.0000F18E33晶振,頻率16MHz,負載18pf,工作溫度-20~70°C,3225mm晶振,臺灣鴻星晶振,E3FB小體積晶振,石英晶體諧振器,無源SMD晶振,低老化晶振,便攜式消費產品晶振,無線控制器設備晶振,可穿戴設備晶振,藍牙音響晶振.
E3FB16.0000F18E33-16MHz-3225mm-臺灣鴻星晶振 特點
1.非常緊湊和薄(3.2*2.5*0.90mm)
2.頻率范圍為10M至115M，范圍寬廣
3.用于設計空間有限的非射頻應用的通用解決方案，如無線控制器設備和其他便攜式消費產品
4.優異的耐熱性和抗震性
5.無鉛,滿足使用鉛的再流動剖面的要求-無焊
E3FB16.0000F18E33-16MHz-3225mm-臺灣鴻星晶振 參數
| 項目 | 符號 | E3FB |
| 頻率 | f0 | 16MHz |
| 振動模式 |
|
Fundamental |
| 頻率公差 | △f/f0 | ±30ppm |
| 溫度穩定性 | TC |
±30ppm |
| 負載電容 | CL | 18pf |
| 工作溫度 | TOPR | －20℃～＋70℃ |
| 保存溫度 | TSTR | －55℃～＋125℃ |
| 串聯阻力 | R1 | 100Ω Max. |
| 驅動級別 | DL | 200μW Max |
| 老化（第一年） | △f/f0 | ±2ppm Max. |
| 并聯電容 | C0 | 3pF Typ. |
| 絕緣電阻 |
IR |
500MΩmin. (At 100VDC ) |

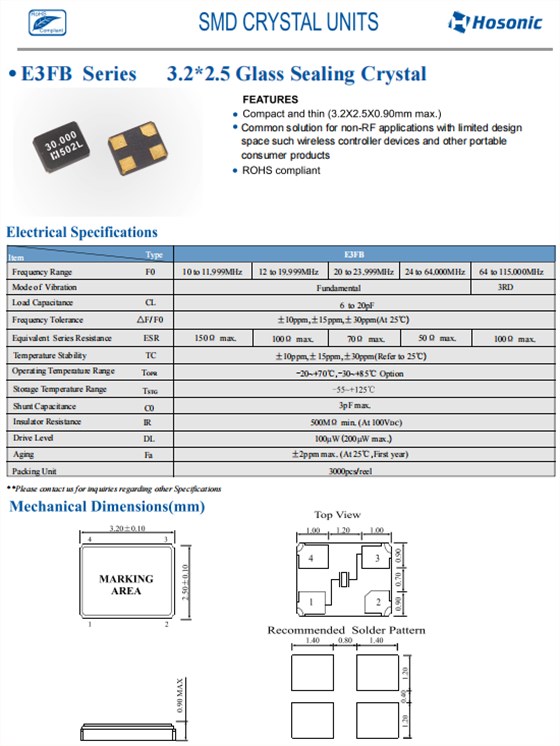

E3FB16.0000F18E33-16MHz-3225mm-臺灣鴻星晶振尺寸圖
| 原廠編碼 | 制造廠家 | 型號 | 頻率 | 負載電容 | 頻率容差 | 頻率穩定度 | 尺寸 |
| E3FB16.0000F18E33 | Hosonic晶振 | E3FB | 16MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB17.0000F18E33 | Hosonic晶振 | E3FB | 17MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB18.0000F18E33 | Hosonic晶振 | E3FB | 18MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB19.0000F18E33 | Hosonic晶振 | E3FB | 19MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB20.0000F18E33 | Hosonic晶振 | E3FB | 20MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB21.0000F18E33 | Hosonic晶振 | E3FB | 21MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB22.0000F18E33 | Hosonic晶振 | E3FB | 22MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB23.0000F18E33 | Hosonic晶振 | E3FB | 23MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB24.0000F18E33 | Hosonic晶振 | E3FB | 24MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB25.0000F18E33 | Hosonic晶振 | E3FB | 25MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB26.0000F18E33 | Hosonic晶振 | E3FB | 26MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB27.0000F18E33 | Hosonic晶振 | E3FB | 27MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB28.0000F18E33 | Hosonic晶振 | E3FB | 28MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB29.0000F18E33 | Hosonic晶振 | E3FB | 29MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB30.0000F18E33 | Hosonic晶振 | E3FB | 30MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB31.0000F18E33 | Hosonic晶振 | E3FB | 31MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB32.0000F18E33 | Hosonic晶振 | E3FB | 32MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB33.0000F18E33 | Hosonic晶振 | E3FB | 33MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB34.0000F18E33 | Hosonic晶振 | E3FB | 34MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB35.0000F18E33 | Hosonic晶振 | E3FB | 35MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB36.0000F18E33 | Hosonic晶振 | E3FB | 36MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB37.0000F18E33 | Hosonic晶振 | E3FB | 37MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB38.0000F18E33 | Hosonic晶振 | E3FB | 38MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB39.0000F18E33 | Hosonic晶振 | E3FB | 39MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB40.0000F18E33 | Hosonic晶振 | E3FB | 40MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB41.0000F18E33 | Hosonic晶振 | E3FB | 41MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB42.0000F18E33 | Hosonic晶振 | E3FB | 42MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB43.0000F18E33 | Hosonic晶振 | E3FB | 43MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB44.0000F18E33 | Hosonic晶振 | E3FB | 44MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB45.0000F18E33 | Hosonic晶振 | E3FB | 45MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB46.0000F18E33 | Hosonic晶振 | E3FB | 46MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB47.0000F18E33 | Hosonic晶振 | E3FB | 47MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB48.0000F18E33 | Hosonic晶振 | E3FB | 48MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB49.0000F18E33 | Hosonic晶振 | E3FB | 49MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB50.0000F18E33 | Hosonic晶振 | E3FB | 50MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB51.0000F18E33 | Hosonic晶振 | E3FB | 51MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB52.0000F18E33 | Hosonic晶振 | E3FB | 52MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB53.0000F18E33 | Hosonic晶振 | E3FB | 53MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB54.0000F18E33 | Hosonic晶振 | E3FB | 54MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB55.0000F18E33 | Hosonic晶振 | E3FB | 55MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB56.0000F18E33 | Hosonic晶振 | E3FB | 56MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB57.0000F18E33 | Hosonic晶振 | E3FB | 57MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB58.0000F18E33 | Hosonic晶振 | E3FB | 58MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB59.0000F18E33 | Hosonic晶振 | E3FB | 59MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB60.0000F18E33 | Hosonic晶振 | E3FB | 60MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB61.0000F18E33 | Hosonic晶振 | E3FB | 61MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB62.0000F18E33 | Hosonic晶振 | E3FB | 62MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB63.0000F18E33 | Hosonic晶振 | E3FB | 63MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB64.0000F18E33 | Hosonic晶振 | E3FB | 64MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB65.0000F18E33 | Hosonic晶振 | E3FB | 65MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
| E3FB66.0000F18E33 | Hosonic晶振 | E3FB | 66MHz | 18pF | ±30ppm | ±30ppm | 3.2 x 2.5 x 0.8 mm |
