NKG晶振,S2SM20.0000F16M23-EXT,2016mm晶振,6G無線模塊晶振特點：

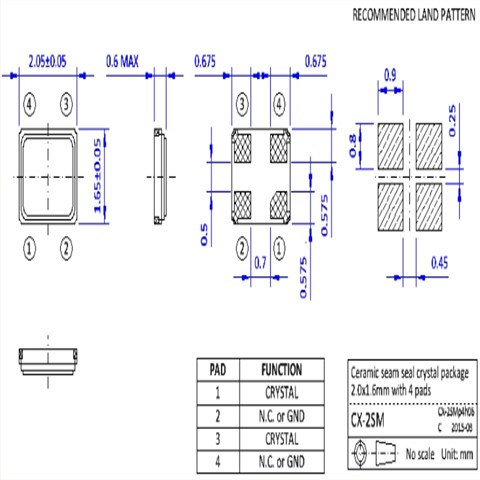

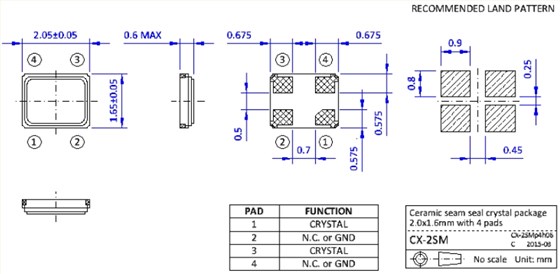

●微型包裝尺寸2.0 x 1.6 x 0.5mm與4個墊
●優異的耐熱性和抗震性
●真空密封，可靠性高，老化率低
●符合AEC-Q200標準的汽車級產品可供選擇

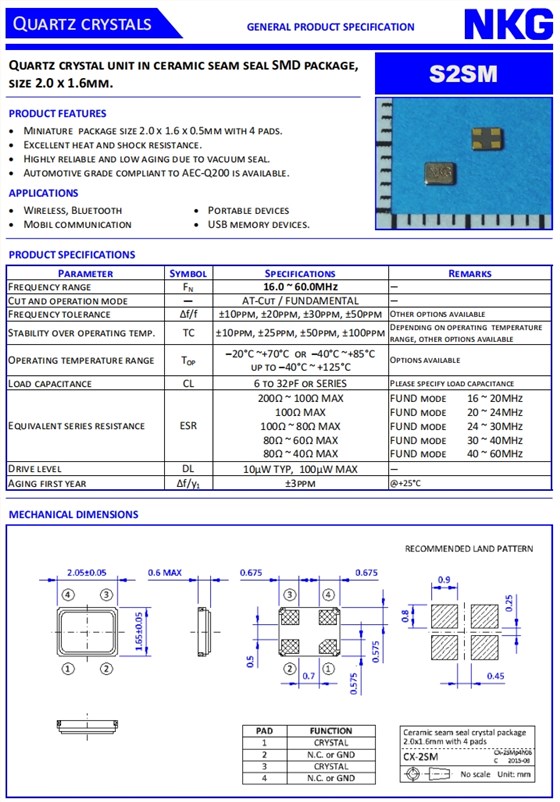

NKG晶振,S2SM20.0000F16M23-EXT,2016mm晶振,6G無線模塊晶振規格表
Parameter
Symbol
Specifications
Remarks
Frequency range
FN
20MHz
-
Cut and operation mode
-
FUNDAMENTAL
-
Frequency tolerance
Δf/f
±20ppm
Other options available
Stability over operating temp.
TC
±30ppm
Depending on operating temperaturerange, other options available
Operating temperature range
TOP
–40°C ~+85°C
Options available
Load capacitance
CL
16pF
Please specify load capacitance
Equivalent series resistance
ESR
100Ω MAX
FUND MODE 20~ 24MHz
Drive level
DL
10µW TYP, 100µW MAX
-
Aging first year
Δf/y1
±3ppm
@+25°C
