NKG Crystal,S1M24.0000F18E1Y-EXT,1612mm晶振,6G移動通信晶振,NKG Crystal,S1M無源晶振,石英晶體諧振器,S1M24.0000F18E1Y-EXT晶振,進口晶振,四腳貼片晶振,1612mm晶振,SMD晶體,頻率24MHz,負載18pF,頻率容差10ppm,工作溫度-20~70°C,超小型晶振,高可靠性晶振,低老化晶振,6G移動通信晶振,藍牙音響耳機晶振,便攜式設備晶振,USB存儲設備晶振.
NKG Crystal,S1M24.0000F18E1Y-EXT,1612mm晶振,6G移動通信晶振特點：

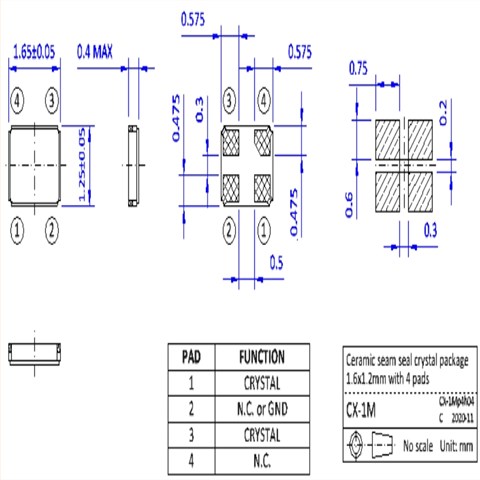

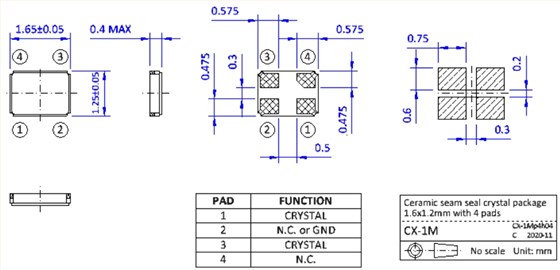

●微型包裝尺寸1.6 x 1.2 x 0.4mm與4個墊

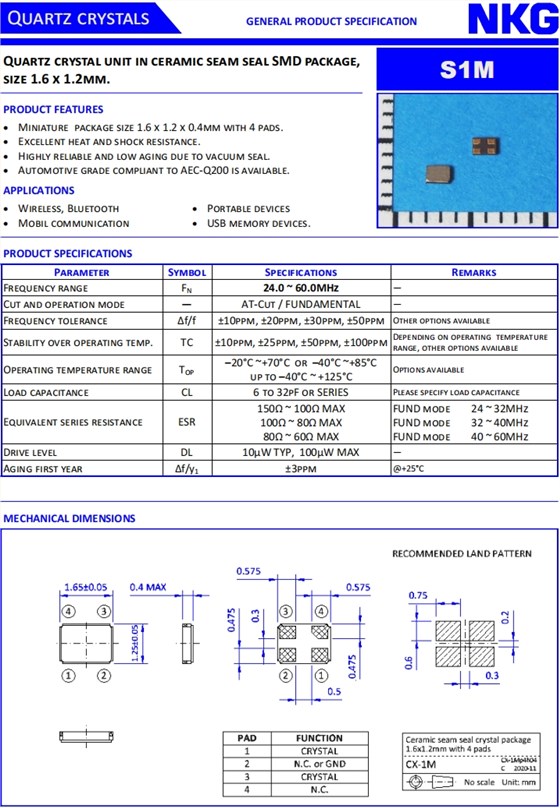

NKG Crystal,S1M24.0000F18E1Y-EXT,1612mm晶振,6G移動通信晶振規(guī)格表
Parameter
Symbol
Specifications
Remarks
Frequency range
FN
24MHz
-
Cut and operation mode
-
FUNDAMENTAL
-
Frequency tolerance
Δf/f
±10ppm
Other options available
Stability over operating temp.
TC
±15ppm
Depending on operating temperaturerange, other options available
Operating temperature range
TOP
–20°C ~+70°C
Options available
Load capacitance
CL
18pF
Please specify load capacitance
Equivalent series resistance
ESR
150Ω ~ 100Ω MAX
FUND mode 24 ~ 32MHz
Drive level
DL
10µW TYP, 100µW MAX
-
Aging first year
Δf/y1
±3ppm
@+25°C
