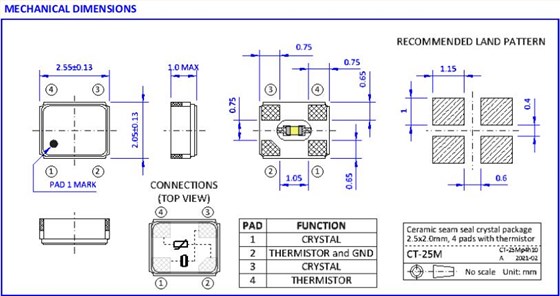

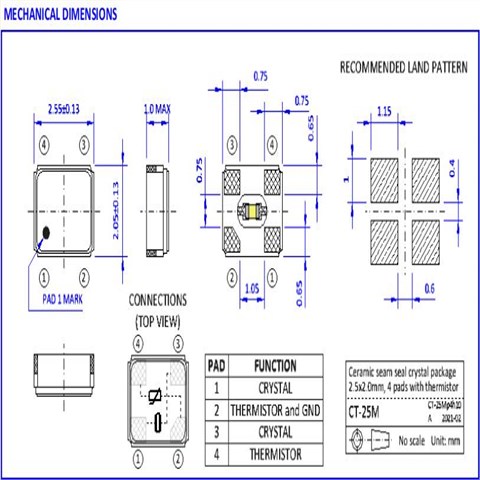

NKG香港晶體,CT25M13.4456F10V1T-100航天飛機晶振,CT25M貼片晶振,NKG晶振,CT25M晶振,CT25M13.4456F10V1T-100晶振,2520晶振,進口晶振,熱敏晶振,四腳貼片晶振,SMD晶振,高品質晶振,高精度晶振,輕薄小晶振,6G移動通信晶振,便攜式設備晶振,藍牙音響晶振,消費電子晶振，數碼產品晶振.特點：內置熱敏電阻100kΩ用于溫度測量，非常適合與內置溫度補償振蕩器電路的ICs一起使用，高度可靠的包裝尺寸2.5x2.0x0.8mm，帶有4個襯墊。

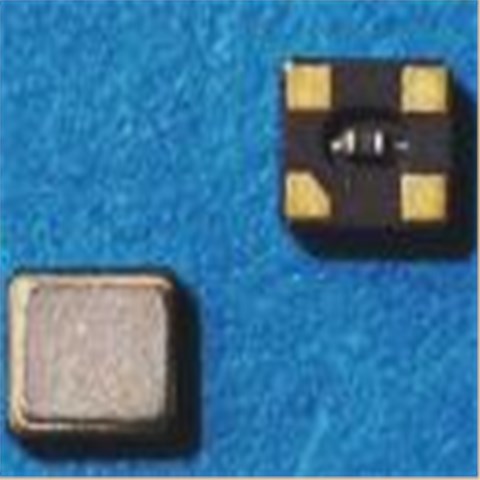

NKG香港晶體,CT25M13.4456F10V1T-100航天飛機晶振,CT25M貼片晶振
Parameter
Symbol
Specifications
Remarks
Frequency range
FN
19.2MHz
-
Cut and operation mode
-
FUNDAMENTAL
-
Frequency tolerance
Δf/f
±10ppm
Other options available
Stability over operating temp.
TC
±12ppm
Depending on operating temperaturerange, other options available
Operating temperature range
TOP
–30°C ~+85°C
Options available
Load capacitance
CL
10pF
Please specify load capacitance
Equivalent series resistance
ESR
80Ω MAX
19.2MHz
Drive level
DL
10µW TYP, 100µW MAX
-
Spurious mode resistance
RSPUR
≥1,100Ω
Over ±1.0MHz from main mode
Aging first year
Δf/y1
±1ppm
@+25°C
Storage temperature range
TST
–40°C ~+105°C
-
