IQXO-406-25超小型時鐘振蕩器提供小型化和高速運行
對于更小、更高性能和更可靠的電子解決方案的需求不斷增長。這促使頻率產品制造商生產更小、更高頻率的器件，以達到設計目標并支持縮小PCB尺寸。與CMOS邏輯信號相比，LVPECL和LVDS輸出提供“互補對”邏輯，有助于在更高頻率下降低噪聲。新型時鐘貼片振蕩器提供2.5 V或3.3 V兩種電壓，相位抖動小于0.5 PS RMS(12 kHz至20 MHz范圍內)，與指定輸出無關。
IQD推出其最新的LVDS/LVPECL時鐘振蕩器IQXO-406和IQXO-439，差分晶振，采用超微型尺寸2.0x1.6mm封裝，四腳貼片晶振，有源晶振，石英晶振振蕩器，新型時鐘振蕩器的頻率范圍從50MHz到250MHz，在一個完整的器件中提供小型化和高速運行。常見的應用包括5G、以太網(10G/100G/1000G)、光纖通道、物聯網、SONET/SDH和可穿戴設備。IQXO-406-25超小型時鐘振蕩器提供小型化和高速運行
| 制造商零件編碼 | 制造商 | 系列 | 描述 | 頻率 |
| LFXTAL059597REEL | IQD Crystal | IQXC-42 | CRYSTAL 32.0000MHZ 10PF SMD | 32 MHz |
| LFXTAL081613Reel | IQD Crystal | IQXC-26 | CRYSTAL 32.0000MHZ 8PF SMD | 32 MHz |
| LFXTAL082130Reel | IQD Crystal | IQXC-42 | CRYSTAL 37.4000MHZ 8PF SMD | 37.4 MHz |
| LFXTAL082125Reel | IQD Crystal | IQXC-42 | CRYSTAL 25.0000MHZ 8PF SMD | 25 MHz |
| LFXTAL073170REEL | IQD Crystal | IQXC-42 | CRYSTAL 32.0000MHZ 10PF SMD | 32 MHz |
| LFXTAL082127Reel | 貼片晶振 | IQXC-42 | CRYSTAL 27.1200MHZ 8PF SMD | 27.12 MHz |
| LFXTAL069527REEL | IQD Crystal | IQXC-26 | CRYSTAL 40.0000MHZ 8PF SMD | 40 MHz |
| LFXTAL059627REEL | IQD Crystal | IQXC-42 | CRYSTAL 38.4000MHZ 10PF SMD | 38.4 MHz |
| LFXTAL081620Reel | IQD Crystal | IQXC-26 | CRYSTAL 48.0000MHZ 8PF SMD | 48 MHz |
| LFXTAL081610Reel | IQD Crystal | IQXC-26 | CRYSTAL 27.0000MHZ 8PF SMD | 27 MHz |
| LFXTAL081608Reel | IQD Crystal | IQXC-26 | CRYSTAL 24.0000MHZ 8PF SMD | 24 MHz |
| LFXTAL069526REEL | IQD Crystal | IQXC-26 | CRYSTAL 32.0000MHZ 8PF SMD | 32 MHz |
| LFXTAL082131Reel | IQD Crystal | IQXC-42 | CRYSTAL 38.4000MHZ 8PF SMD | 38.4 MHz |
| LFXTAL082129Reel | IQD Crystal | IQXC-42 | CRYSTAL 32.0000MHZ 8PF SMD | 32 MHz |
| LFXTAL059596REEL | IQD Crystal | IQXC-42 | CRYSTAL 30.0000MHZ 10PF SMD | 30 MHz |
| LFXTAL051643REEL | IQD Crystal | IQXC-25 | CRYSTAL 32.7680KHZ 9PF SMD | 32.768 kHz |
| LFXTAL050789REEL | IQD Crystal | IQXC-25 | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz |
| LFXTAL081612Reel | IQD Crystal | IQXC-26 | CRYSTAL 30.0000MHZ 8PF SMD | 30 MHz |
| LFXTAL081614Reel | IQD Crystal | IQXC-26 | CRYSTAL 26.0000MHZ 8PF SMD | 26 MHz |
| LFXTAL059632REEL | IQD Crystal | IQXC-42 | CRYSTAL 40.0000MHZ 10PF SMD | 40 MHz |
| LFXTAL078377REEL | IQD Crystal | IQXC-42 | CRYSTAL 26.0000MHZ 12PF SMD | 26 MHz |
| LFXTAL081781Reel | IQD Crystal | IQXC-42 | CRYSTAL 16.0000MHZ 8PF SMD | 16 MHz |
| LFXTAL069493REEL | IQD Crystal | IQXC-42 | CRYSTAL 24.0000MHZ 10PF SMD | 24 MHz |
| LFXTAL072543REEL | IQD Crystal | IQXC-42 | CRYSTAL 27.0000MHZ 10PF SMD | 27 MHz |
| LFXTAL072541REEL | IQD Crystal | IQXC-26 | CRYSTAL 27.0000MHZ 8PF SMD | 27 MHz |
| LFXTAL069494REEL | IQD Crystal | IQXC-42 | CRYSTAL 25.0000MHZ 10PF SMD | 25 MHz |
| LFXTAL082132RL3K | IQD Crystal | IQXC-42 | CRYSTAL 40.0000MHZ 8PF SMD | 40 MHz |
| LFXTAL059591REEL | IQD Crystal | IQXC-42 | CRYSTAL 26.0000MHZ 10PF SMD | 26 MHz |
| LFXTAL081616Reel | IQD Crystal | IQXC-26 | CRYSTAL 37.4000MHZ 8PF SMD | 37.4 MHz |
| LFXTAL066198REEL | IQD Crystal | IQXC-90 | CRYSTAL 32.7680KHZ 9PF SMD | 32.768 kHz |
| LFXTAL073264Reel | IQD Crystal | IQXC-25 | CRYSTAL 32.7680KHZ 6PF SMD | 32.768 kHz |
| LFXTAL072546REEL | IQD Crystal | IQXC-42 | CRYSTAL 48.0000MHZ 10PF SMD | 48 MHz |
| LFXTAL059461REEL | IQD Crystal | IQXC-25 | CRYSTAL 32.7680KHZ 7PF SMD | 32.768 kHz |
| LFXTAL069528REEL | IQD Crystal | IQXC-26 | CRYSTAL 48.0000MHZ 8PF SMD | 48 MHz |
| LFXTAL082128Reel | IQD Crystal | IQXC-42 | CRYSTAL 30.0000MHZ 8PF SMD | 30 MHz |
| LFXTAL066742REEL | IQD Crystal | IQXC-26 | CRYSTAL 26.0000MHZ 8PF SMD | 26 MHz |
| LFXTAL062558REEL | IQD Crystal | IQXC-25 | CRYSTAL 32.7680KHZ 9PF SMD | 32.768 kHz |
| LFXTAL082887RL3K | IQD Crystal | IQXC-42 | CRYSTAL 10.0000MHZ 12PF SMD | 16 MHz |
| LFXTAL081609Reel | 石英晶振 | IQXC-26 | CRYSTAL 25.0000MHZ 8PF SMD | 25 MHz |
| LFXTAL081619Reel | IQD Crystal | IQXC-26 | CRYSTAL 40.0000MHZ 8PF SMD | 40 MHz |
| LFXTAL065455Reel | IQD Crystal | IQXC-25 | CRYSTAL 32.7680KHZ 6PF SMD | 32.768 kHz |
| LFXTAL025159REEL | IQD Crystal | CFPX-56 | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz |
| LFXTAL025159BULK | IQD Crystal | CFPX-56 | CRYSTAL 32.7680KHZ 12.5PF TH | 32.768 kHz |
| LFXTAL082468Reel | IQD Crystal | IQXC-42 | CRYSTAL 38.4000MHZ 10PF SMD | 38.4 MHz |
| LFXTAL082126Reel | IQD Crystal | IQXC-42 | CRYSTAL 26.0000MHZ 8PF SMD | 26 MHz |
| LFXTAL059585REEL | IQD Crystal | IQXC-42 | CRYSTAL 20.0000MHZ 10PF SMD | 20 MHz |
| LFXTAL082135Reel | IQD Crystal | IQXC-42 | CRYSTAL 48.0000MHZ 8PF SMD | 48 MHz |
| LFXTAL066431REEL | IQD Crystal | IQXC-90 | CRYSTAL 32.7680KHZ 7PF SMD | 32.768 kHz |
| LFXTAL082123Reel | IQD Crystal | IQXC-42 | CRYSTAL 24.0000MHZ 8PF SMD | 24 MHz |
| LFXTAL065253REEL | IQD Crystal | IQXC-90 | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz |
| LFXTAL082131RL3K | IQD Crystal | IQXC-42 | CRYSTAL 38.4000MHZ 8PF SMD | 38.4 MHz |
| LFXTAL082130RL3K | IQD Crystal | IQXC-42 | CRYSTAL 37.4000MHZ 8PF SMD | 37.4 MHz |
| LFXTAL082125RL3K | IQD Crystal | IQXC-42 | CRYSTAL 25.0000MHZ 8PF SMD | 25 MHz |
| LFXTAL081781RL3K | IQD Crystal | IQXC-42 | CRYSTAL 16.0000MHZ 8PF SMD | 16 MHz |
| LFXTAL082123RL3K | IQD Crystal | IQXC-42 | CRYSTAL 24.0000MHZ 8PF SMD | 24 MHz |
| LFXTAL082126RL3K | IQD Crystal | IQXC-42 | CRYSTAL 26.0000MHZ 8PF SMD | 26 MHz |
| LFXTAL082127RL3K | IQD Crystal | IQXC-42 | CRYSTAL 27.1200MHZ 8PF SMD | 27.12 MHz |
| LFXTAL082135RL3K | IQD Crystal | IQXC-42 | CRYSTAL 48.0000MHZ 8PF SMD | 48 MHz |
| LFXTAL082128RL3K | IQD Crystal | IQXC-42 | CRYSTAL 30.0000MHZ 8PF SMD | 30 MHz |
| LFXTAL082132Reel | IQD Crystal | IQXC-42 | CRYSTAL 40.0000MHZ 8PF SMD | 40 MHz |
| LFXTAL082468RL3K | IQD Crystal | IQXC-42 | CRYSTAL 38.4000MHZ 10PF SMD | 38.4 MHz |

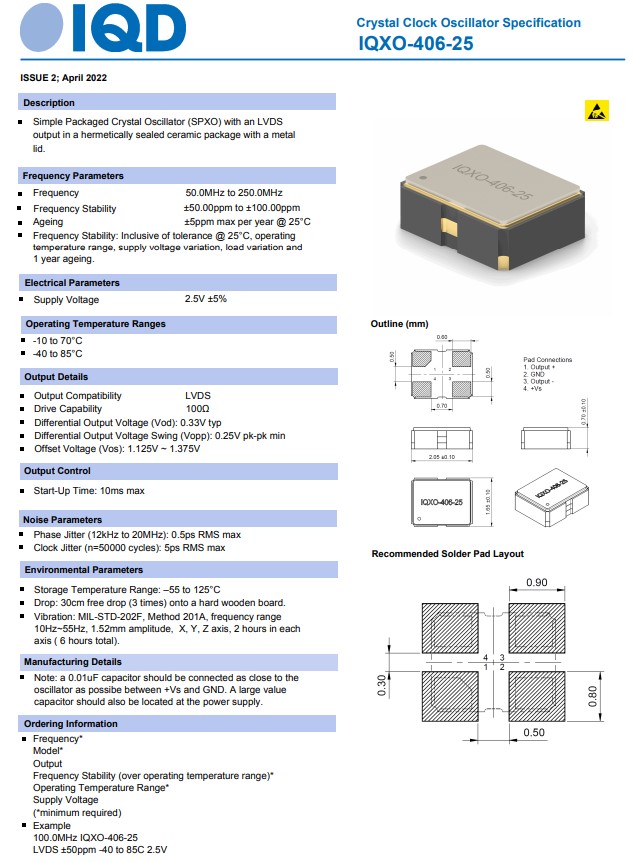

頻率參數：頻率50.0兆赫至250.0兆赫，頻率穩定性:50.00ppm至100.00ppm 25°C時每年最大老化5ppm，頻率穩定性:包括25°C工作溫度下的容差，溫度范圍，電源電壓變化，負載變化和1年老化。
電氣參數：電源電壓2.5V±5%
工作溫度范圍：-10至70攝氏度，-40至85攝氏度
輸出詳細信息：輸出兼容性LVDS 驅動能力100ω 差分輸出電壓(Vod):典型值0.33V 差分輸出電壓擺幅(Vopp): 0.25V峰峰值最小值 失調電壓(Vos): 1.125V ~ 1.375V
輸出控制：?jiǎn)?dòng)時間:最大10ms
噪聲參數：相位抖動(12kHz至20MHz):最大0.5皮秒均方根值 時鐘抖動(n=50000個周期):最大5ps RMS
