數字視頻專用HCMOS時鐘振蕩器CE3291-33.333

來源：金洛鑫瀏覽：- 發布日期：2023-05-25 10:26:39【大中小】

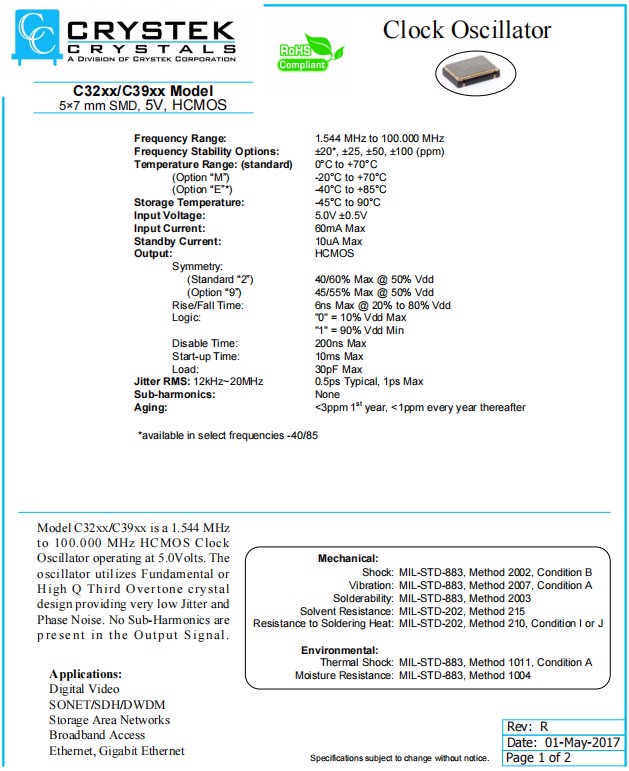

美國Crystek瑞斯克晶振C32xx系列，C3291晶振是一個小體積晶振尺寸7.0x5.0mm四腳貼片晶振，有源晶振，石英晶振，石英晶體振蕩器，SMD晶振，頻率范圍為：1.544MHz至100.000MHz的HCMOS時鐘振蕩器，工作電壓5.0V。該振蕩器利用基本或高Q第三泛音晶體設計，該石英晶振提供非常低的抖動和相位噪聲。輸出信號中沒有子諧波。應用范圍：數字視頻，聲波儀/SDH/DWDM，存儲區域網絡，寬帶接入，以太網、千兆以太網。數字視頻專用HCMOS時鐘振蕩器CE3291-33.333

原廠代碼	品牌	型號	類型	頻率	頻率穩定度	工作溫度
C3291-1.544	Crystek晶振	C3291	XO (Standard)	1.544MHz	±25ppm	0°C ~ 70°C
C3291-1.843200	Crystek晶振	C3291	XO (Standard)	1.8432MHz	±25ppm	0°C ~ 70°C
C3291-10.000	Crystek晶振	C3291	XO (Standard)	10MHz	±25ppm	0°C ~ 70°C
C3291-12.000	Crystek晶振	C3291	XO (Standard)	12MHz	±25ppm	0°C ~ 70°C
C3291-12.288	Crystek晶振	C3291	XO (Standard)	12.288MHz	±25ppm	0°C ~ 70°C
C3291-12.352	Crystek晶振	C3291	XO (Standard)	12.352MHz	±25ppm	0°C ~ 70°C
C3291-14.318180	Crystek晶振	C3291	XO (Standard)	14.31818MHz	±25ppm	0°C ~ 70°C
C3291-15.360	Crystek晶振	C3291	XO (Standard)	15.36MHz	±25ppm	0°C ~ 70°C
C3291-16.000	Crystek晶振	C3291	XO (Standard)	16MHz	±25ppm	0°C ~ 70°C
C3291-16.384	Crystek晶振	C3291	XO (Standard)	16.384MHz	±25ppm	0°C ~ 70°C
C3291-18.432	瑞斯克晶振	C3291	XO (Standard)	18.432MHz	±25ppm	0°C ~ 70°C
C3291-19.440	Crystek晶振	C3291	XO (Standard)	19.44MHz	±25ppm	0°C ~ 70°C
C3291-2.048	Crystek晶振	C3291	XO (Standard)	2.048MHz	±25ppm	0°C ~ 70°C
C3291-20.000	Crystek晶振	C3291	XO (Standard)	20MHz	±25ppm	0°C ~ 70°C
C3291-20.480	Crystek晶振	C3291	XO (Standard)	20.48MHz	±25ppm	0°C ~ 70°C
C3291-24.000	Crystek晶振	C3291	XO (Standard)	24MHz	±25ppm	0°C ~ 70°C
C3291-24.704	Crystek晶振	C3291	XO (Standard)	24.704MHz	±25ppm	0°C ~ 70°C
C3291-25.000	Crystek晶振	C3291	XO (Standard)	25MHz	±25ppm	0°C ~ 70°C
C3291-3.686400	Crystek晶振	C3291	XO (Standard)	3.6864MHz	±25ppm	0°C ~ 70°C
C3291-30.000	Crystek晶振	C3291	XO (Standard)	30MHz	±25ppm	0°C ~ 70°C
C3291-32.000	Crystek晶振	C3291	XO (Standard)	32MHz	±25ppm	0°C ~ 70°C
C3291-32.768	Crystek晶振	C3291	XO (Standard)	32.768MHz	±25ppm	0°C ~ 70°C
C3291-33.000	Crystek晶振	C3291	XO (Standard)	33MHz	±25ppm	0°C ~ 70°C
C3291-33.333	Crystek晶振	C3291	XO (Standard)	33.333MHz	±25ppm	0°C ~ 70°C
C3291-35.000	Crystek晶振	C3291	XO (Standard)	35MHz	±25ppm	0°C ~ 70°C
C3291-4.000	Crystek晶振	C3291	XO (Standard)	4MHz	±25ppm	0°C ~ 70°C
C3291-40.000	Crystek晶振	C3291	XO (Standard)	40MHz	±25ppm	0°C ~ 70°C
C3291-44.736	Crystek晶振	C3291	XO (Standard)	44.736MHz	±25ppm	0°C ~ 70°C
C3291-45.000	Crystek晶振	C3291	XO (Standard)	45MHz	±25ppm	0°C ~ 70°C
C3291-49.152	Crystek晶振	C3291	XO (Standard)	49.152MHz	±25ppm	0°C ~ 70°C
C3291-50.000	Crystek晶振	C3291	XO (Standard)	50MHz	±25ppm	0°C ~ 70°C
C3291-51.840	Crystek晶振	C3291	XO (Standard)	51.84MHz	±25ppm	0°C ~ 70°C
C3291-6.176	Crystek晶振	C3291	XO (Standard)	6.176MHz	±25ppm	0°C ~ 70°C
C3291-7.372800	Crystek晶振	C3291	XO (Standard)	7.3728MHz	±25ppm	0°C ~ 70°C
C3291-8.000	Crystek晶振	C3291	XO (Standard)	8MHz	±25ppm	0°C ~ 70°C
CE3291-1.544	Crystek晶振	C3291	XO (Standard)	1.544MHz	±25ppm	-40°C ~ 85°C
CE3291-1.843200	Crystek晶振	C3291	XO (Standard)	1.8432MHz	±25ppm	-40°C ~ 85°C
CE3291-10.000	Crystek晶振	C3291	XO (Standard)	10MHz	±25ppm	-40°C ~ 85°C
CE3291-12.000	Crystek晶振	C3291	XO (Standard)	12MHz	±25ppm	-40°C ~ 85°C
CE3291-12.288	Crystek晶振	C3291	XO (Standard)	12.288MHz	±25ppm	-40°C ~ 85°C
CE3291-12.352	Crystek晶振	C3291	XO (Standard)	12.352MHz	±25ppm	-40°C ~ 85°C
CE3291-14.318180	Crystek晶振	C3291	XO (Standard)	14.31818MHz	±25ppm	-40°C ~ 85°C
CE3291-15.360	Crystek晶振	C3291	XO (Standard)	15.36MHz	±25ppm	-40°C ~ 85°C
CE3291-16.000	Crystek晶振	C3291	XO (Standard)	16MHz	±25ppm	-40°C ~ 85°C
CE3291-16.384	Crystek晶振	C3291	XO (Standard)	16.384MHz	±25ppm	-40°C ~ 85°C
CE3291-18.432	Crystek晶振	C3291	XO (Standard)	18.432MHz	±25ppm	-40°C ~ 85°C
CE3291-19.440	Crystek晶振	C3291	XO (Standard)	19.44MHz	±25ppm	-40°C ~ 85°C
CE3291-2.048	Crystek晶振	C3291	XO (Standard)	2.048MHz	±25ppm	-40°C ~ 85°C
CE3291-20.000	Crystek晶振	C3291	XO (Standard)	20MHz	±25ppm	-40°C ~ 85°C
CE3291-20.480	Crystek晶振	C3291	XO (Standard)	20.48MHz	±25ppm	-40°C ~ 85°C
CE3291-24.000	Crystek晶振	C3291	XO (Standard)	24MHz	±25ppm	-40°C ~ 85°C
CE3291-24.704	Crystek晶振	C3291	XO (Standard)	24.704MHz	±25ppm	-40°C ~ 85°C
CE3291-25.000	Crystek晶振	C3291	XO (Standard)	25MHz	±25ppm	-40°C ~ 85°C
CE3291-3.686400	Crystek晶振	C3291	XO (Standard)	3.6864MHz	±25ppm	-40°C ~ 85°C
CE3291-30.000	Crystek晶振	C3291	XO (Standard)	30MHz	±25ppm	-40°C ~ 85°C
CE3291-32.000	Crystek晶振	C3291	XO (Standard)	32MHz	±25ppm	-40°C ~ 85°C
CE3291-32.768	Crystek晶振	C3291	XO (Standard)	32.768MHz	±25ppm	-40°C ~ 85°C
CE3291-33.000	Crystek晶振	C3291	XO (Standard)	33MHz	±25ppm	-40°C ~ 85°C
CE3291-33.333	Crystek晶振	C3291	XO (Standard)	33.333MHz	±25ppm	-40°C ~ 85°C
CE3291-35.000	Crystek晶振	C3291	有源晶振	35MHz	±25ppm	-40°C ~ 85°C
CE3291-4.000	Crystek晶振	C3291	XO (Standard)	4MHz	±25ppm	-40°C ~ 85°C
CE3291-40.000	Crystek晶振	C3291	XO (Standard)	40MHz	±25ppm	-40°C ~ 85°C
CE3291-6.176	Crystek晶振	C3291	XO (Standard)	6.176MHz	±25ppm	-40°C ~ 85°C
CE3291-7.372800	Crystek晶振	C3291	XO (Standard)	7.3728MHz	±25ppm	-40°C ~ 85°C
CE3291-8.000	Crystek晶振	C3291	XO (Standard)	8MHz	±25ppm	-40°C ~ 85°C
C3291-60.000	Crystek晶振	C3291	XO (Standard)	60MHz	±25ppm	0°C ~ 70°C
C3291-64.000	Crystek晶振	C3291	XO (Standard)	64MHz	±25ppm	0°C ~ 70°C
C3291-66.666600	Crystek晶振	C3291	XO (Standard)	66.6666MHz	±25ppm	0°C ~ 70°C
CE3291-44.736	Crystek晶振	C3291	XO (Standard)	44.736MHz	±25ppm	-40°C ~ 85°C
CE3291-45.000	Crystek晶振	C3291	XO (Standard)	45MHz	±25ppm	-40°C ~ 85°C
CE3291-49.152	Crystek晶振	C3291	XO (Standard)	49.152MHz	±25ppm	-40°C ~ 85°C
C3291-75.000	Crystek晶振	C3291	XO (Standard)	75MHz	±25ppm	0°C ~ 70°C
CE3291-50.000	Crystek晶振	C3291	XO (Standard)	50MHz	±25ppm	-40°C ~ 85°C
CE3291-51.840	Crystek晶振	C3291	XO (Standard)	51.84MHz	±25ppm	-40°C ~ 85°C
CE3291-60.000	Crystek晶振	C3291	XO (Standard)	60MHz	±25ppm	-40°C ~ 85°C
CE3291-64.000	Crystek晶振	C3291	XO (Standard)	64MHz	±25ppm	-40°C ~ 85°C
CE3291-66.666600	Crystek晶振	C3291	XO (Standard)	66.6666MHz	±25ppm	-40°C ~ 85°C
CE3291-75.000	Crystek晶振	C3291	XO (Standard)	75MHz	±25ppm	-40°C ~ 85°C
C3291-80.000	Crystek晶振	C3291	XO (Standard)	80MHz	±25ppm	0°C ~ 70°C
CE3291-80.000	Crystek晶振	C3291	XO (Standard)	80MHz	±25ppm	-40°C ~ 85°C
C3291-100.000	Crystek晶振	C3291	XO (Standard)	100MHz	±25ppm	0°C ~ 70°C
C3291-106.250	Crystek晶振	C3291	XO (Standard)	106.25MHz	±25ppm	0°C ~ 70°C
CE3291-100.000	Crystek晶振	C3291	XO (Standard)	100MHz	±25ppm	-40°C ~ 85°C
CE3291-106.250	Crystek晶振	C3291	XO (Standard)	106.25MHz	±25ppm	-40°C ~ 85°C

數字視頻專用HCMOS時鐘振蕩器CE3291-33.333，Crystek Corporation一直提供頻率產品，包括石英晶體、XOs(時鐘振蕩器)、TCXOs(溫度補償晶體振蕩器)、VCO(壓控振蕩器)和VCXOs(壓控晶體振蕩器)，石英晶體振蕩器。Crystek運營著兩個致力于頻率控制的部門。Crystek Crystal致力于開發和制造使用石英諧振器的頻率產品。Crystek Microwave為微波行業開發頻率控制和支持產品。其它產品包括:PLL(鎖相環)頻率合成器、RedBox VCOs、RF同軸電纜組件、RF電纜連接器、散裝RF同軸電纜、RF功率檢波器、濾波器、衰減器、DC模塊、無源倍頻器、RFPRO(袖珍參考振蕩器)、連接器放大器、VCO評估板和看見基于時鐘振蕩器和VCO。
