瑞士微晶提供超薄石英晶體CM9V-T1A32.768kHz12.5pF±20ppmTAQC

來源：金洛鑫瀏覽：- 發布日期：2023-07-15 18:13:06【大中小】

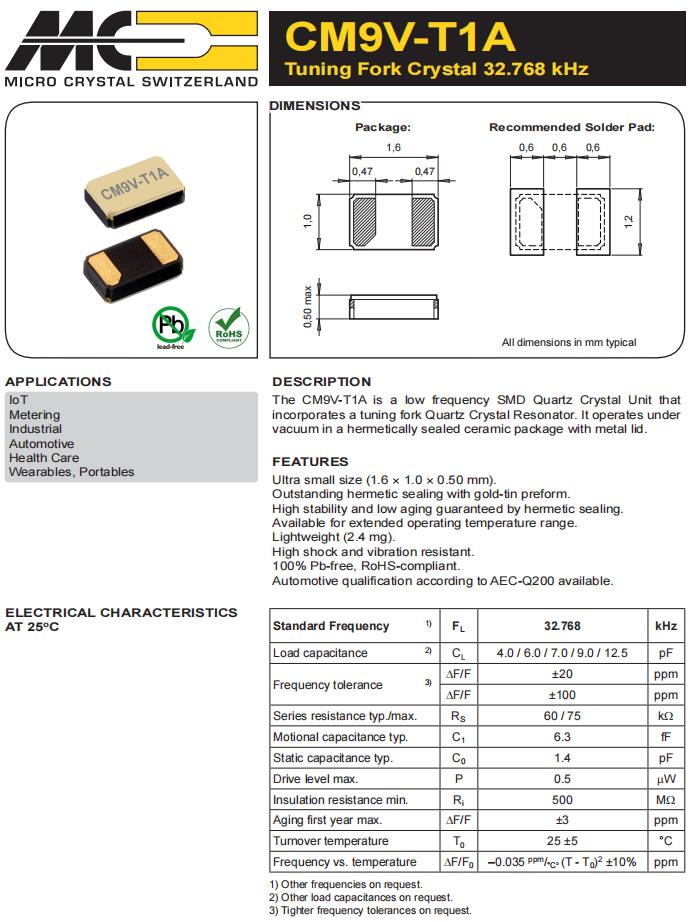

瑞士微晶生產的CM9V-T1A是32.768KHz石英晶體,最大厚度為0.35英寸，尺寸僅為1.6 x 1.0毫米。CM9V-T1A是一個低頻SMD石英晶體單元，其中包括一個音叉石英晶體諧振器，它在一個陶瓷包裝與金屬蓋密封的真空下工作。先進的封裝幾何結構增強了產品在移動中的機械靈活性，這種新的微小幾何形狀增強了彎曲半徑至關重要的應用中的電路，它補充了來自www.renata.com的新的可彎曲薄膜電池。

CM9V-T1A石英晶振特性：

超小尺寸(1.6 × 1.0 × 0.50 mm)

卓越的密封與金-錫預制

高穩定性，低老化，密封保證

可擴展工作溫度范圍

重量輕(2.4毫克)

高抗沖擊和抗振動

100%不含鉛，符合rohs標準

具備AEC-Q200汽車資質

該晶振非常適合于：

物聯網

計量

工業

汽車

智能卡、筆記本電腦

醫療保健、電子醫療治療膏貼

可穿戴設備和活動腕帶

制造商零件編號	制造商	描述	頻率	容差
MS1V-T1K-32.768kHz-12.5pF-20PPM-TA-QC-Au	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C	32.768 kHz	20 PPM
CM7V-T1A-32.768kHz-7pF-100PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C	32.768 kHz	100 PPM
CM8V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C	32.768 kHz	20 PPM
MS1V-T1K-32.768kHz-7pF-20PPM-TA-QC-Au	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C	32.768 kHz	20 PPM
CC4V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C	32.768 kHz	20 PPM
CC5V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C	32.768 kHz	20 PPM
CC5V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C	32.768 kHz	20 PPM
CM7V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C	32.768 kHz	20 PPM
CM7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C	32.768 kHz	20 PPM
CC7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C	32.768 kHz	20 PPM
MS3V-T1R-32.768kHz-12.5pF-20PPM-TA-QC-Au	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C	32.768 kHz	20 PPM
MS3V-T1R-32.768kHz-7pF-20PPM-TA-QC-Au	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C	32.768 kHz	20 PPM
CC7V-T1A-32.768kHz-7pF-100PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C	32.768 kHz	100 PPM
CC7V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C	32.768 kHz	20 PPM
CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	32.768 kHz	20 PPM
CM8V-T1A-32.768k-9pF-20PPM-TB-QA	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+125C	32.768 kHz	20 PPM
MS1V-T1K-32.768kHz-10pF-20PPM-TA-QC-Au	Micro 晶振	晶體 32.768 kHz 10.0 pF +/-20 PPM -40/+85C	32.768 kHz	20 PPM
CC5V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C	32.768 kHz	20 PPM
CM8V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C	32.768 kHz	20 PPM
CM7V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C	32.768 kHz	20 PPM
CM8V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C	32.768 kHz	20 PPM
MS3V-T1R-32.768kHz-9pF-20PPM-TA-QC-Au	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C	32.768 kHz	20 PPM
CM7V-T1A-Low-ESR-32.768kHz-9pF-20-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM LOW ESR	32.768 kHz	20 PPM
CC7V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C	32.768 kHz	20 PPM
CM7VT1A-LowESR-32.768kHz-12.5pF-20-TA-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM LOW ESR	32.768 kHz	20 PPM
CM7V-T1A-Low-ESR-32.768kHz-7pF-20-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM LOW ESR	32.768 kHz	20 PPM
CM7V-T1A-32.768k-12.5pF-20PPM-TA-QA	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	32.768 kHz	20 PPM
CM7V-T1A-32.768k-7pF-20PPM-TA-QA	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200	32.768 kHz	20 PPM
CM7V-T1A-32.768k-7pF-100PPM-TB-QA	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-100 PPM AEC-Q200	32.768 kHz	100 PPM
CC7V-T1A-32.768k-9pF-20PPM-TA-QA	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200	32.768 kHz	20 PPM
CM7V-T1A-32.768kHz-12.5pF-100PPM-TC-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF 100 PPM -55/+125C	32.768 kHz	100 PPM
CC4V-T1A-32.768kHz-12.5pF-10PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C	32.768 kHz	10 PPM
CM7V-T1A-32.768k-12.5pF-20PPM-TB-QA	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	32.768 kHz	20 PPM
CM7V-T1A-32.768k-9pF-20PPM-TB-QA	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200	32.768 kHz	20 PPM
CC7V-T1A-32.768k-7pF-20PPM-TB-QA	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200	32.768 kHz	20 PPM
CM7V-T1A-32.768kHz-9pF-20PPM-TC-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM -55/+125C	32.768 kHz	20 PPM
CC7V-T1A-32.768k-12.5pF-20PPM-TB-QA	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	32.768 kHz	20 PPM
CM7V-T1A-Low-ESR-32.768kHz-6pF-20-TA-QC	Micro 晶振	晶體 32.768 kHz 6.0 pF +/-20 PPM LOW ESR	32.768 kHz	20 PPM
CM7V-T1A-32.768kHz-6pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C	32.768 kHz	20 PPM
CM7V-T1A-32.768k-7pF-20PPM-TC-QA	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200	32.768 kHz	20 PPM
CC7V-T1A-32.768k-9pF-100PPM-TC-QA	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200	32.768 kHz	100 PPM
CM7V-T1A-32.768k-9pF-20PPM-TC-QA	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200	32.768 kHz	20 PPM
CC7V-T1A-32.768k-12.5pF-20PPM-TC-QA	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	32.768 kHz	20 PPM
CM7V-T1A-32.768kHz-6pF-10PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 6.0 pF +/-10 PPM -40/+85C	32.768 kHz	10 PPM
CC4V-T1A-32.768kHz-9pF-100PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C	32.768 kHz	100 PPM
CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C	32.768 kHz	20 PPM
CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+125C	32.768 kHz	20 PPM
CC4V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C	32.768 kHz	20 PPM
CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C	32.768 kHz	20 PPM
CC4V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C	32.768 kHz	20 PPM
CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C	32.768 kHz	100 PPM
CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C	32.768 kHz	20 PPM
CC5V-T1A-32.768kHz-12.5pF-20PPM-TB-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+125C	32.768 kHz	20 PPM
CC5V-T1A-32.768kHz-7pF-20PPM-TB-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C	32.768 kHz	20 PPM
CM7V-T1A-0.3-32.768kHz-7pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM 0.3mm	32.768 kHz	20 PPM
CM7V-T1A-0.3-32.768kHz-9pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM 0.3mm	32.768 kHz	20 PPM
CM7VT1A-0.3-32.768kHz-12.5pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM 0.3mm	32.768 kHz	20 PPM
CM7V-T1A-100.000kHz-9pF-100PPM-TA-QC	Micro 晶振	晶體 100.000 kHz 9.0 pF +/-100 PPM -40/+85C	100 kHz	100 PPM
CM7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C	32.768 kHz	10 PPM
CM7V-T1A-32.768kHz-9pF-10PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-10 PPM -40/+85C	32.768 kHz	10 PPM
CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C	32.768 kHz	20 PPM
CM7V-T1A-32.768kHz-12.5pF-20PPM-TB-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+125C	32.768 kHz	20 PPM
CM7V-T1A-32.768kHz-7pF-20PPM-TB-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C	32.768 kHz	20 PPM
CC7V-T1A-32.768k-12.5pF-20PPM-TA-QA	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	32.768 kHz	20 PPM
CC7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C	32.768 kHz	10 PPM
CC7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -55/+125C	32.768 kHz	20 PPM
CM9V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C	32.768 kHz	20 PPM

瑞士微晶陶瓷或金屬封裝的32.768 kHz和低頻(LF)石英晶體單元有低ESR和寬負載電容(CL)范圍的音叉晶體可供選擇，這些XTAL產品滿足市場對振蕩器或微控制器等低功耗定時器件、高可靠性、擴展工作溫度和符合AEC-Q200汽車認證的要求，已在全球數千種應用中取得了良好的成績！
