Silicon品牌,514BBC000932BAG,6G無線網絡晶振
頻率：70.656MHz
尺寸：5.0mm x 3.2mm
Silicon品牌,514BBC000932BAG,6G無線網絡晶振,Silicon晶振,Si514進口有源晶振,514BBC000932BAG晶振,貼片石英晶振,LVDS輸出差分晶振,5032mm晶振,六腳貼片晶振,頻率70.656MHz,電壓3.3V,頻率偏差25ppm,工作溫度-40~85°C,無鉛環保晶振,高性能晶振,低功耗晶振,6G無線網絡晶振,工業自動化晶振,SONET/SDH/OTN晶振,FPGA同步晶振.
訂購熱線：0755-27837162
Silicon品牌,514BBC000932BAG,6G無線網絡晶振,Silicon晶振,Si514進口有源晶振,514BBC000932BAG晶振,貼片石英晶振,LVDS輸出差分晶振,5032mm晶振,六腳貼片晶振,頻率70.656MHz,電壓3.3V,頻率偏差25ppm,工作溫度-40~85°C,無鉛環保晶振,高性能晶振,低功耗晶振,6G無線網絡晶振,工業自動化晶振,SONET/SDH/OTN晶振,FPGA同步晶振.

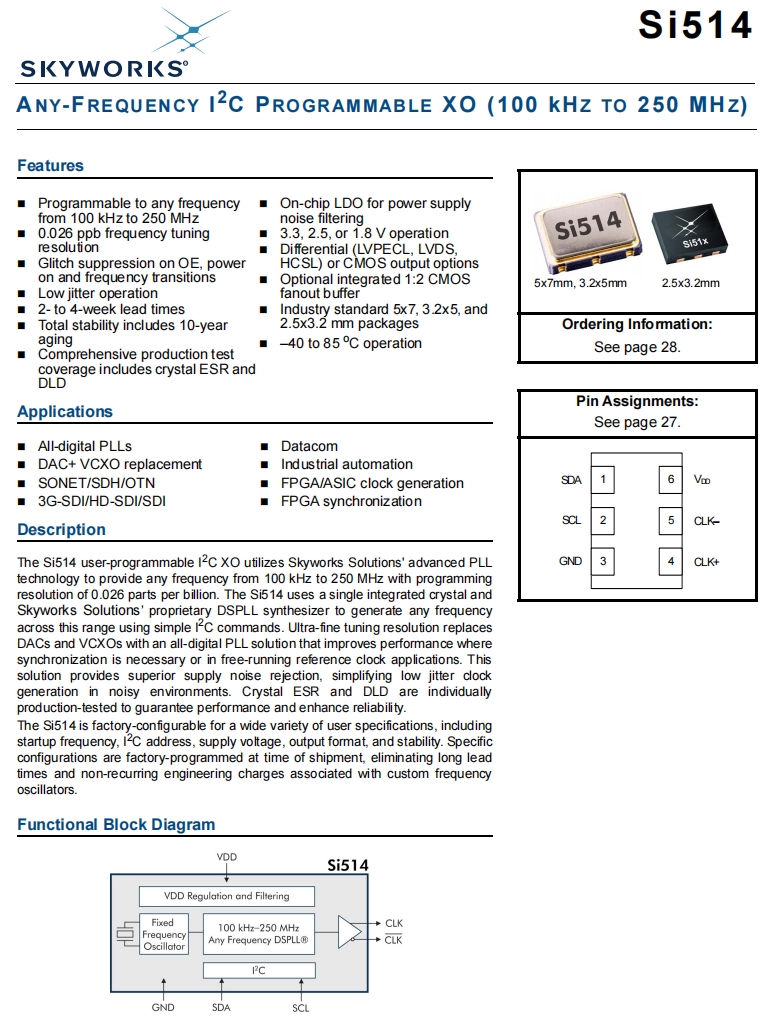

Silicon品牌,514BBC000932BAG,6G無線網絡晶振特點：
-支持100KHz ~ 250MHz的任意頻率
-0.026 PPB頻率調諧分辨率
-對OE、上電、頻率轉換等故障進行抑制
-低抖動操作
-2 - 4周的交貨期
-總穩定性包括10年老化
-全面的生產測試覆蓋范圍包括晶體ESR和DLD
-片上LDO穩壓器，用于電源噪聲濾波
-3.3、2.5或1.8 V操作
-差分(LVPECL, LVDS, HCSL)或CMOS輸出選項
-可選集成1:2 CMOS扇出緩沖器
-在OE和電源上進行微弱抑制
-行業標準5 × 7、3.2 × 5和2.5 × 3.2 mm封裝
-無鉛，符合RoHS標準
-工作溫度-40至85℃操作
Silicon品牌,514BBC000932BAG,6G無線網絡晶振規格表
項目
符號
規格說明
條件
額定頻率
f_nom
70.656MHz
請聯系我們以便獲取其它可用頻率的相關信息
電源電壓
Vcc
3.3V
儲存溫度
T_stg
-55℃~+125℃
裸存
工作溫度
T_use
-40℃~ +85℃
頻率穩定性
f_tol
±25ppm
+25℃,超出標準的規格說明請聯系我們以便獲取相關信息
電源電流
IDD
23mA Max
LVDS
對稱性（占空比）
SYM
48%~52%
在輸出交叉點
LVDS輸出模式
VOC
1.33V Max
100 Ω line-line, 3.3/2.5 V
LVDS輸出擺幅
VOH
0.45VPPSE Max
Single-ended 100Ω differential termination
輸入電壓
VIH
0.8×VDD Min
VIL
0.2×VDD Max
上升下降時間
tr/tf
800ps Max
LVDS
起始時間
t str
10ms Max
相位抖動
tpj
1.0ps Max
12 kHz to 20 MHz integration band-width2 (brickwall)
Silicon品牌,514BBC000932BAG,6G無線網絡晶振尺寸圖
