535FB125M000DG,Silicon品牌,6G通信差分晶振
頻率：125MHz
尺寸：7.0mm x 5.0mm
535FB125M000DG,Silicon品牌,6G通信差分晶振,Silicon晶振,Si535有源晶振,石英晶體振蕩器,535FB125M000DG晶振,LVDS輸出晶振,7050mm晶振,SMD晶體,差分晶振,頻率125MHz,電壓2.5V,頻率偏差20ppm,工作溫度-40~85°C,高穩定性晶振,低抖動性能晶振,低相位噪聲晶振,6G通信晶振,數據中心晶振,電信交換機晶振,企業服務器晶振.
訂購熱線：0755-27837162
535FB125M000DG,Silicon品牌,6G通信差分晶振,Silicon晶振,Si535有源晶振,石英晶體振蕩器,535FB125M000DG晶振,LVDS輸出晶振,7050mm晶振,SMD晶體,差分晶振,頻率125MHz,電壓2.5V,頻率偏差20ppm,工作溫度-40~85°C,高穩定性晶振,低抖動性能晶振,低相位噪聲晶振,6G通信晶振,數據中心晶振,電信交換機晶振,企業服務器晶振.

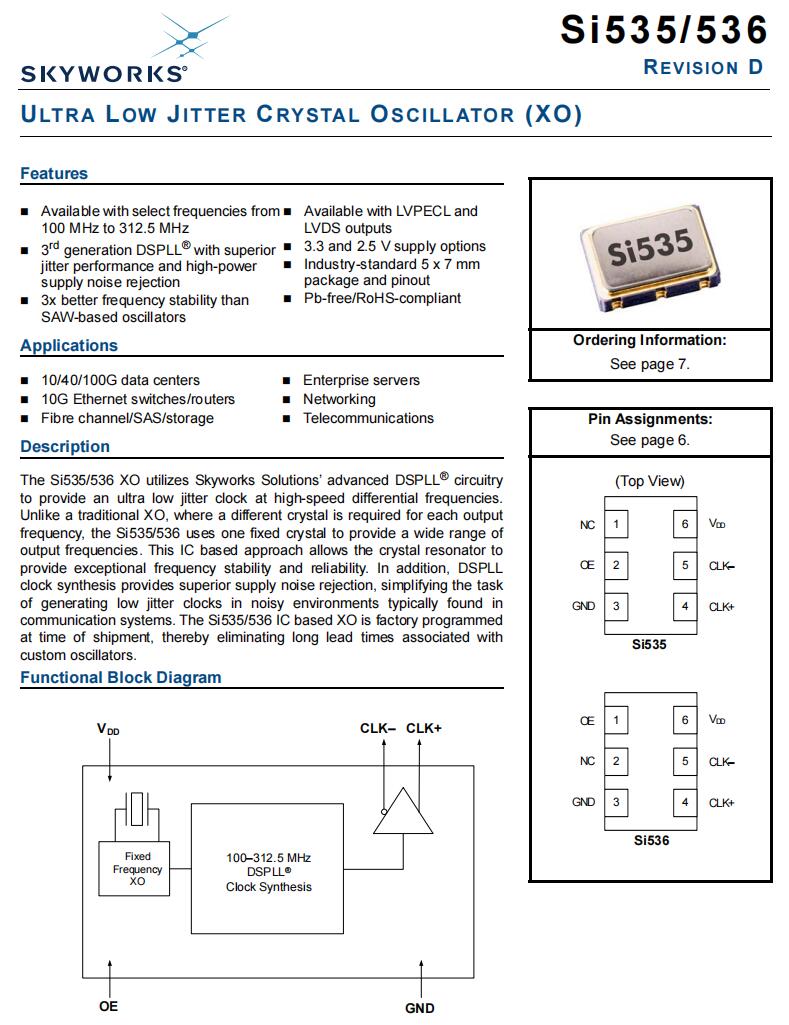

535FB125M000DG,Silicon品牌,6G通信差分晶振特點：
-可選擇10MHz ~ 312.5MHz的任意頻率
-第三代DSPLL®具有優越的抖動性能和高電源噪聲抑制
-頻率穩定性?xún)?yōu)于SAW-based振蕩器
-3.3、2.5供電選項
-可與LVPECL和LVDS輸出
-行業標準的5 × 7 mm封裝和引腳
-無鉛，符合RoHS標準
535FB125M000DG,Silicon品牌,6G通信差分晶振規格表
項目
符號
規格說明
條件
額定頻率
f_nom
125MHz
請聯系我們以便獲取其它可用頻率的相關信息
電源電壓
Vcc
2.5V
儲存溫度
T_stg
-55℃~+125℃
裸存
工作溫度
T_use
-40℃~ +85℃
頻率穩定性
f_tol
±20ppm
+25℃,超出標準的規格說明請聯系我們以便獲取相關信息
電源電流
IDD
98mA Max
LVDS
對稱性（占空比）
SYM
45%~55%
在輸出交叉點
LVDS輸出選項
VO
1.275V Max
mid-level
VOD
0.9Vpp Max
swing (diff)
輸入電壓
VIH
0.75×VDD Min
VIL
0.5V Max
上升下降時間
tr/tf
350ps Max
LVDS
起始時間
t str
10ms Max
相位抖動
tpj
0.40ps Max
12 kHz to 20 MHz brickwall

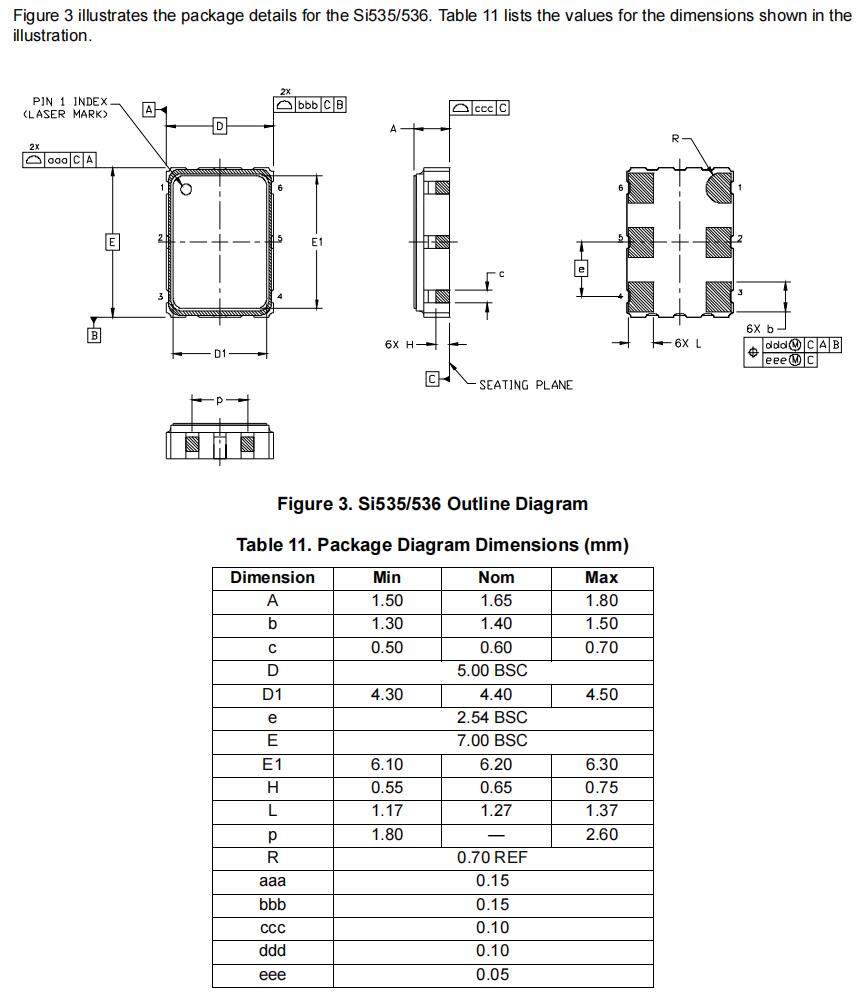

535FB125M000DG,Silicon品牌,6G通信差分晶振尺寸圖
