XRCGB27M120F0Z00R0,2016mm,27.12MHz,100ppm,6pf
頻率：27.12MHZ
尺寸：2.0mm×1.6mm
XRCGB27M120F0Z00R0,2016mm,27.12MHz,100ppm,6pf,XRCGB27M120F0Z00R0晶振,HCR2016石英晶體,尺寸2016mm,頻率27.12MHz,精度100ppm,負載電容6pf,數字電表晶振,智能家居晶振,醫療設備晶振,無線模塊應用晶振.
XRCGB27M120F0Z00R0,2016mm,27.12MHz,100ppm,6pf,XRCGB27M120F0Z00R0晶振,HCR2016石英晶體,尺寸2016mm,頻率27.12MHz,精度100ppm,負載電容6pf,數字電表晶振,智能家居晶振,醫療設備晶振,無線模塊應用晶振.
XRCGB27M120F0Z00R0,2016mm,27.12MHz,100ppm,6pf
| 型號 | HCR2016 |
| 頻率 | 27.1200MHz |
| 頻率公差 | ±10ppm max.(25±3℃) |
| 工作溫度范圍 | -40℃ to 105℃ |
| 頻率溫度特性 | ±100ppm max. |
| 頻率老化 | ±5ppm max./year |
| 清洗 | Notavailable |
| 負載電容量 | 6pF |
| 等效串聯電阻(max.) | 150Ω |
| 驅動電平(max.) | 300μW |
| 形狀 | SMD |

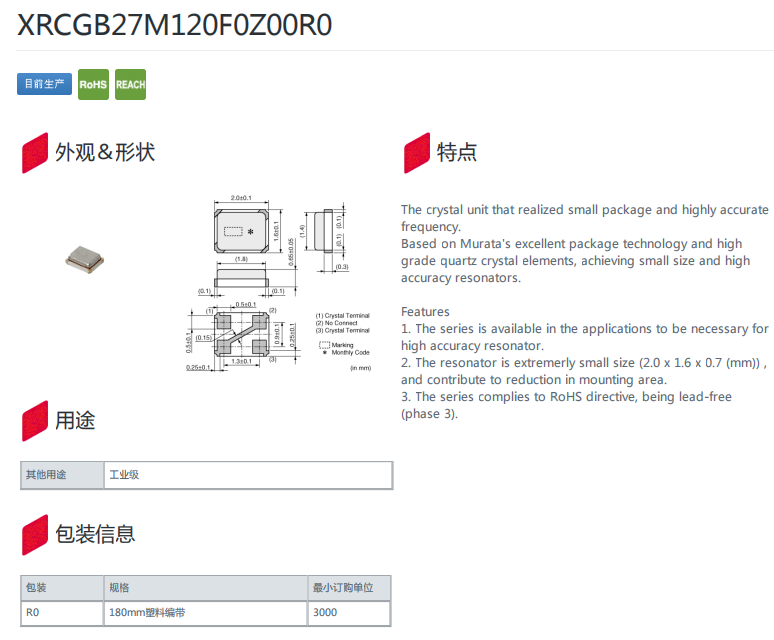

XRCGB27M120F0Z00R0,2016mm,27.12MHz,100ppm,6pf 特性
1. 該系列適用于各種應用場合，是高精度諧振器

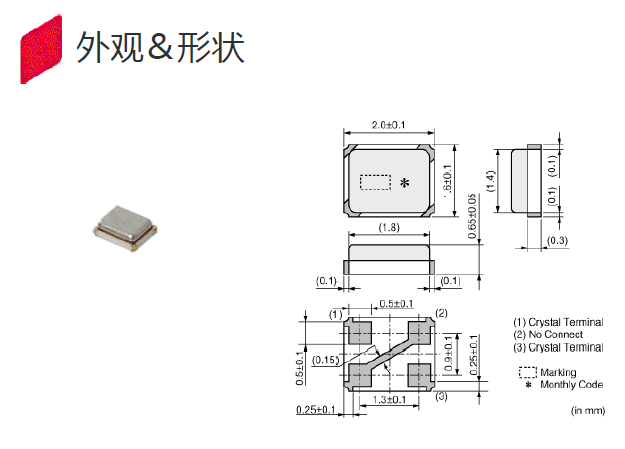

2.諧振器的尺寸非常小(2.0 x 1.6 x 0.7 (mm))，并有助于減少安裝面積
3.該系列產品符合RoHS指令，無鉛
4.基于村田公司優良的封裝技術和高優質石英晶體元件，實現小尺寸、高品質準確性諧振器
XRCGB27M120F0Z00R0,2016mm,27.12MHz,100ppm,6pf
| 原廠編碼 | 型號 | 頻率 | 頻率公差 | 頻率溫度特性 | 負載電容量 | 工作溫度 |
| XRCGB24M000F0G00R0 | HCR2016 | 24.0000MHz | ±100ppm | ±50ppm | 6pF | -40℃ to 85℃ |
| XRCGB24M000F0L00R0 | HCR2016 | 24.0000MHz | ±100ppm | ±50ppm | 6pF | -30℃ to 85℃ |
| XRCGB24M000F0Z00R0 | HCR2016 | 24.0000MHz | ±100ppm | ±100ppm | 6pF | -40℃ to 105℃ |
| XRCGB24M000F1H00R0 | HCR2016 | 24.0000MHz | ±10ppm | ±10ppm | 6pF | -20℃ to 70℃ |
| XRCGB24M000F1H01R0 | HCR2016 | 24.0000MHz | ±10ppm | ±10ppm | 8pF | -20℃ to 70℃ |
| XRCGB24M000F1H02R0 | HCR2016 | 24.0000MHz | ±10ppm | ±10ppm | 10pF | -20℃ to 70℃ |
| XRCGB24M000F1H03R0 | HCR2016 | 24.0000MHz | ±10ppm | ±10ppm | 12pF | -20℃ to 70℃ |
| XRCGB24M000F2P00R0 | HCR2016 | 24.0000MHz | ±20ppm | ±20ppm | 6pF | -30℃ to 85℃ |
| XRCGB24M000F2P01R0 | HCR2016 | 24.0000MHz | ±20ppm | ±20ppm | 8pF | -30℃ to 85℃ |
| XRCGB24M000F2P02R0 | HCR2016 | 24.0000MHz | ±20ppm | ±20ppm | 10pF | -30℃ to 85℃ |
| XRCGB24M000F3A00R0 | HCR2016 | 24.0000MHz | ±30ppm | ±35ppm | 6pF | -40℃ to 125℃ |
| XRCGB24M000F3G00R0 | HCR2016 | 24.0000MHz | ±30ppm | ±50ppm | 6pF | -40℃ to 85℃ |
| XRCGB24M000F3M00R0 | HCR2016 | 24.0000MHz | ±30ppm | ±40ppm | 6pF | -30℃ to 85℃ |
| XRCGB24M000F3M01R0 | HCR2016 | 24.0000MHz | ±30ppm | ±40ppm | 8pF | -30℃ to 85℃ |
| XRCGB24M000F3M02R0 | HCR2016 | 24.0000MHz | ±30ppm | ±40ppm | 10pF | -30℃ to 85℃ |
| XRCGB24M000F3M13R0 | HCR2016 | 24.0000MHz | ±30ppm | ±40ppm | 8.5pF | -30℃ to 85℃ |
| XRCGB24M000F3M19R0 | HCR2016 | 24.0000MHz | ±30ppm | ±40ppm | 6pF | -40℃ to 85℃ |
| XRCGB24M000F3N00R0 | HCR2016 | 24.0000MHz | ±30ppm | ±30ppm | 6pF | -20℃ to 85℃ |
| XRCGB24M000FAN00R0 | HCR2016 | 24.0000MHz | ±25ppm | ±25ppm | 6pF | -10℃ to 70℃ |
| XRCGB24M000FBP12R0 | HCR2016 | 24.0000MHz | ±15ppm | ±20ppm | 6pF | -30℃ to 85℃ |
| XRCGB24M576F0G00R0 | HCR2016 | 24.5760MHz | ±100ppm | ±50ppm | 6pF | -40℃ to 85℃ |
| XRCGB24M576F0L00R0 | HCR2016 | 24.5760MHz | ±100ppm | ±50ppm | 6pF | -30℃ to 85℃ |
| XRCGB24M576F0Z00R0 | HCR2016 | 24.5760MHz | ±100ppm | ±100ppm | 6pF | -40℃ to 100℃ |
| XRCGB24M576F3G00R0 | HCR2016 | 24.5760MHz | ±30ppm | ±50ppm | 6pF | -40℃ to 85℃ |
| XRCGB24M576F3M00R0 | HCR2016 | 24.5760MHz | ±30ppm | ±40ppm | 6pF | -30℃ to 85℃ |
| XRCGB24M576F3M01R0 | HCR2016 | 24.5760MHz | ±30ppm | ±40ppm | 8pF | -30℃ to 85℃ |
| XRCGB24M576F3M02R0 | HCR2016 | 24.5760MHz | ±30ppm | ±40ppm | 10pF | -30℃ to 85℃ |
| XRCGB24M576F3N00R0 | HCR2016 | 24.5760MHz | ±30ppm | ±30ppm | 6pF | -30℃ to 85℃ |
| XRCGB24M576FAN00R0 | HCR2016 | 24.5760MHz | ±25ppm | ±25ppm | 6pF | -10℃ to 70℃ |
| XRCGB25M000F0G00R0 | HCR2016 | 25.0000MHz | ±100ppm | ±50ppm | 6pF | -40℃ to 85℃ |
| XRCGB25M000F0L00R0 | HCR2016 | 25.0000MHz | ±100ppm | ±50ppm | 6pF | -30℃ to 85℃ |
| XRCGB25M000F0Z00R0 | HCR2016 | 25.0000MHz | ±100ppm | ±100ppm | 6pF | -40℃ to 105℃ |
| XRCGB25M000F1H00R0 | HCR2016 | 25.0000MHz | ±10ppm | ±10ppm | 6pF | -20℃ to 70℃ |
| XRCGB25M000F1H01R0 | HCR2016 | 25.0000MHz | ±10ppm | ±10ppm | 8pF | -20℃ to 70℃ |
| XRCGB25M000F1H02R0 | HCR2016 | 25.0000MHz | ±10ppm | ±10ppm | 10pF | -20℃ to 70℃ |
| XRCGB25M000F1H03R0 | HCR2016 | 25.0000MHz | ±10ppm | ±10ppm | 12pF | -20℃ to 70℃ |
| XRCGB25M000F2P00R0 | HCR2016 | 25.0000MHz | ±20ppm | ±20ppm | 6pF | -30℃ to 85℃ |
| XRCGB25M000F2P01R0 | HCR2016 | 25.0000MHz | ±20ppm | ±20ppm | 8pF | -30℃ to 85℃ |
| XRCGB25M000F2P02R0 | HCR2016 | 25.0000MHz | ±20ppm | ±20ppm | 10pF | -30℃ to 85℃ |
| XRCGB25M000F3A00R0 | HCR2016 | 25.0000MHz | ±30ppm | ±35ppm | 6pF | -40℃ to 125℃ |
| XRCGB25M000F3G00R0 | HCR2016 | 25.0000MHz | ±30ppm | ±50ppm | 6pF | -40℃ to 85℃ |
| XRCGB25M000F3M00R0 | HCR2016 | 25.0000MHz | ±30ppm | ±40ppm | 6pF | -30℃ to 85℃ |
| XRCGB25M000F3M01R0 | HCR2016 | 25.0000MHz | ±30ppm | ±40ppm | 8pF | -30℃ to 85℃ |
| XRCGB25M000F3M02R0 | HCR2016 | 25.0000MHz | ±30ppm | ±40ppm | 10pF | -30℃ to 85℃ |
| XRCGB25M000F3M04R0 | HCR2016 | 25.0000MHz | ±30ppm | ±40ppm | 4.5pF | -30℃ to 85℃ |
| XRCGB25M000F3M18R0 | HCR2016 | 25.0000MHz | ±30ppm | ±40ppm | 12pF | -30℃ to 85℃ |
| XRCGB25M000F3N00R0 | HCR2016 | 25.0000MHz | ±30ppm | ±30ppm | 6pF | -20℃ to 85℃ |
