TXEAPDSANF-19.200000,GPS定位導航晶振,VCTCXO晶振,Taitien泰藝晶振

頻率：19.2 MHz

尺寸：3.20mm x 2.50mm

TXEAPDSANF-19.200000,GPS定位導航晶振,VCTCXO晶振,Taitien泰藝晶振,憑借數十年晶振研發經驗,將工業級品質標準融入TXEAPDSANF-19.200000產品設計中.該晶振不僅具備VCTCXO晶振技術帶來的寬溫域(通常支持-40℃~+85℃)頻率穩定能力,還通過嚴苛的環境適應性測試,可抵御振動,沖擊等復雜工況影響.19.200000MHz的標準頻率完美匹配GPS導航系統的時鐘需求,同時兼容多種電路設計,為工業級導航設備,智能穿戴定位模塊等提供長期穩定的頻率基準,降低設備故障率.

訂購熱線：0755-27837162

TXEAPDSANF-19.200000,GPS定位導航晶振,VCTCXO晶振,Taitien泰藝晶振

針對便攜式GPS定位系統晶振設備(如手持終端,戶外運動手表)對功耗的嚴苛要求(通常需支持數天至數周續航),Taitien研發團隊對TXEAPDSANF-19.200000晶振的內部電路進行了深度優化,采用低功耗CMOS驅動芯片,將工作電流控制在3mA以下(待機電流僅0.5mA),相比同類型傳統晶振功耗降低40%,在實現低功耗運行的同時,仍保持VCTCXO技術的高精度頻率輸出(頻率穩定度±0.5ppm@-40℃~+85℃).19.200000MHz頻率信號可直接接入主流GPS芯片,無需額外的頻率轉換電路,減少了信號轉換過程中的損耗(信號衰減率低于1dB),既提升了設備續航能力(手持導航儀續航延長20%),又保障了定位精度(靜態定位誤差≤1米),適用于手持GPS導航儀(地質勘探專用設備),戶外運動定位設備(登山,徒步專用手表),物聯網定位終端(物流包裹追蹤器)等場景,尤其適配電池供電的移動定位設備.

JLX-2

TXEAPDSANF-19.200000,GPS定位導航晶振,VCTCXO晶振,Taitien泰藝晶振

原廠型號 Originalmodel：	TXEAPDSANF-19.200000	品牌brand：	Taitien
Manufacturer品牌	臺灣泰藝晶振	OperatingTemperature溫度	-30°C ~ 85°C
Series型號	TX	Current-Supply(Max)	2mA
Type類型	VCTCXO	PackageHeight高度	1.00mm
Frequency頻率	19.2 MHz	Termination 腳位	4pad
輸出方式 Output：	Clipped Sine Wave	PackageType 封裝類型	4-SMD
Voltage-Supply電壓	2.8V ~ 3.3V	Packaging 包裝	TapeandReel
FrequencyStability頻率穩定度	±1.5ppm	安裝方式 Installation：	Surfacemount
Size/Dimension尺寸	3.20mm x 2.50mm	最小包裝數MPQ：	3000

JLX-3

TXEAPDSANF-19.200000,GPS定位導航晶振,VCTCXO晶振,Taitien泰藝晶振

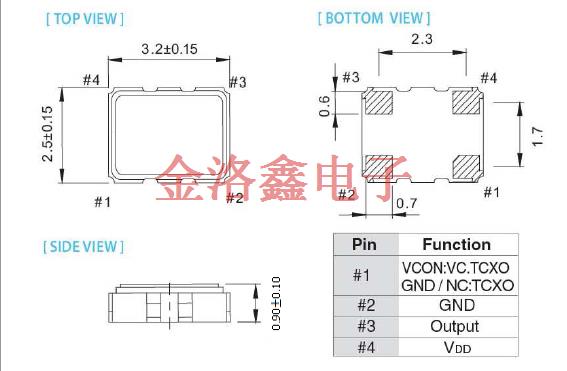

TX 3225

TXEAPDSANF-19.200000,GPS定位導航晶振,VCTCXO晶振,Taitien泰藝晶振

OCETGCJTNF-48.000000	Taitien	OC	XO (Standard)	48 MHz	CMOS	3.3V	±50ppm	-20°C ~ 70°C
OXETDCJANF-0.032768	Taitien	OX	XO (Standard)	32.768 kHz	CMOS	3.3V	±25ppm	-20°C ~ 70°C
OCETDLJANF-25.000000	Taitien	OC	XO (Standard)	25 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
TZKTADSANF-26.000000	Taitien	TZ	TCXO	26 MHz	Clipped Sine Wave	1.8V	±500ppb	-30°C ~ 85°C
TXEABLSANF-24.000000	Taitien	TX	VCTCXO	24 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-40°C ~ 85°C
TXEABLSANF-26.000000	Taitien	TX	VCTCXO	26 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-40°C ~ 85°C
TXKTPCSANF-32.000000	Taitien	TX	TCXO	32 MHz	Clipped Sine Wave	1.8V	±1.5ppm	-20°C ~ 70°C
TXEAADSANF-20.000000	Taitien	TX	VCTCXO	20 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-30°C ~ 85°C
TXETALSANF-10.000000	Taitien	TX	TCXO	10 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-40°C ~ 85°C
TYETBCSANF-32.000000	Taitien	TY	TCXO	32 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-20°C ~ 70°C
TYETBLSANF-40.000000	Taitien	TY	TCXO	40 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-40°C ~ 85°C
TYEAPLSANF-40.000000	Taitien	TY	VCTCXO	40 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1.5ppm	-40°C ~ 85°C
TYETACSANF-26.000000	Taitien	TY	TCXO	26 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-20°C ~ 70°C
TYEAACSANF-38.400000	Taitien	TY	VCTCXO	38.4 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-20°C ~ 70°C
VLCUWCWTNF-100.000000	Taitien	VLCU	VCXO	100 MHz	Sine Wave	5V	±35ppm	-20°C ~ 70°C
TSEAALJANF-10.000000	Taitien	TS	VCTCXO	10 MHz	CMOS	3.3V	±500ppb	-40°C ~ 85°C
TWETALJANF-40.000000	Taitien	TW	TCXO	40 MHz	CMOS	3.3V	±500ppb	-40°C ~ 85°C
TWEAKLJANF-20.000000	Taitien	TW	VCTCXO	20 MHz	CMOS	3.3V	±280ppb	-40°C ~ 85°C
TTETKLJANF-10.000000	Taitien	TT	TCXO	10 MHz	CMOS	3.3V	±280ppb	-40°C ~ 85°C
TTEAKLJANF-10.000000	Taitien	TT	VCTCXO	10 MHz	CMOS	3.3V	±280ppb	-40°C ~ 85°C
TTETKLSANF-10.000000	Taitien	TT	TCXO	10 MHz	Clipped Sine Wave	3.3V	±280ppb	-40°C ~ 85°C
TSEATLJANF-10.000000	Taitien	TS	VCTCXO	10 MHz	CMOS	3.3V	±4.6ppm	-40°C ~ 85°C
TWETMCJANF-10.000000	Taitien	TW	TCXO	10 MHz	CMOS	3.3V	±100ppb	-20°C ~ 70°C
TTEAALJANF-50.000000	Taitien	TT	VCTCXO	50 MHz	CMOS	3.3V	±500ppb	-40°C ~ 85°C
NNENCLJNNF-10.000000	Taitien	NN	OCXO	10 MHz	CMOS	3.3V	±20ppb	-40°C ~ 85°C
NI-10M-2400	Taitien	NI-10M-2400	OCXO	10 MHz	LVTTL	5V	±3ppb	-30°C ~ 70°C
NI-10M-2403	Taitien	NI-10M-2400	OCXO	10 MHz	LVTTL	5V	±3ppb	-40°C ~ 85°C
NI-10M-2503	Taitien	NI-10M-2500	OCXO	10 MHz	Sine Wave	5V	±3ppb	-40°C ~ 85°C
NI-100M-2900	Taitien	NI-100M-2900	OCXO	100 MHz	Sine Wave	12V	±50ppb	-40°C ~ 85°C
NA-100M-6822	Taitien	NA-100M-6800	OCXO	100 MHz	Sine Wave	12V	±100ppb	-40°C ~ 85°C
OCKTGLJANF-0.032768	Taitien	OC	XO (Standard)	32.768 kHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
OCETGLJTNF-100.000000	Taitien	OC	XO (Standard)	100 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
TXETCLSANF-40.000000	Taitien	TX	TCXO	40 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±2ppm	-40°C ~ 85°C
TXETDDSANF-16.000000	Taitien	TX	TCXO	16 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±2.5ppm	-30°C ~ 85°C
TXETDCSANF-20.000000	Taitien	TX	TCXO	20 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±2.5ppm	-20°C ~ 70°C
TXETBLSANF-40.000000	Taitien	TX	TCXO	40 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-40°C ~ 85°C
TXEABDSANF-32.000000	Taitien	TX	VCTCXO	32 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-30°C ~ 85°C
TXETDDSANF-30.000000	Taitien	TX	TCXO	30 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±2.5ppm	-30°C ~ 85°C
TXETBLSANF-26.000000	Taitien	TX	TCXO	26 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-40°C ~ 85°C
TXEAPDSANF-19.200000	Taitien	TX	VCTCXO	19.2 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1.5ppm	-30°C ~ 85°C
TXEAPLSANF-40.000000	Taitien	TX	VCTCXO	40 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1.5ppm	-40°C ~ 85°C
TXEACDSANF-26.000000	Taitien	TX	VCTCXO	26 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±2ppm	-30°C ~ 85°C
TXEACDSANF-20.000000	Taitien	TX	VCTCXO	20 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±2ppm	-30°C ~ 85°C
TXETBLSANF-27.000000	Taitien	TX	TCXO	27 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-40°C ~ 85°C
TXETBLSANF-19.200000	Taitien	TX	TCXO	19.2 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-40°C ~ 85°C
TXETALSANF-26.000000	Taitien	TX	TCXO	26 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-40°C ~ 85°C
TXEAACSANF-40.000000	Taitien	TX	VCTCXO	40 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-20°C ~ 70°C
TXEAADSANF-25.000000	Taitien	TX	VCTCXO	25 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-30°C ~ 85°C
TYETBLSANF-38.400000	Taitien	TY	TCXO	38.4 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-40°C ~ 85°C
TYETBCSANF-50.000000	Taitien	TY	TCXO	50 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±1ppm	-20°C ~ 70°C
TYETACSANF-32.000000	Taitien	TY	TCXO	32 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-20°C ~ 70°C
TYETACSANF-20.000000	Taitien	TY	TCXO	20 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±500ppb	-20°C ~ 70°C
PYEUCJJANF-100.000000	Taitien	FASTXO	XO (Standard)	100 MHz	CMOS	2.8V ~ 3.3V	±20ppm	-40°C ~ 105°C
TWEAALSANF-10.000000	Taitien	TW	VCTCXO	10 MHz	Clipped Sine Wave	3.3V	±500ppb	-40°C ~ 85°C
TTETKLJANF-30.720000	Taitien	TT	TCXO	30.72 MHz	CMOS	3.3V	±280ppb	-40°C ~ 85°C
TTEAMCSANF-10.000000	Taitien	TT	VCTCXO	10 MHz	Clipped Sine Wave	3.3V	±100ppb	-20°C ~ 70°C
OYKTGLJANF-0.032768	Taitien	OY	XO (Standard)	32.768 kHz	CMOS	1.8V	±50ppm	-40°C ~ 85°C
OYETDLJANF-25.000000	Taitien	OY	XO	25 MHz	CMOS	3.3V	±25ppm	-40°C ~ 85°C
TXETDDSANF-19.200000	Taitien	TX	TCXO	19.2 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±2.5ppm	-30°C ~ 85°C
TXETCLSANF-25.000000	Taitien	TX	TCXO	25 MHz	Clipped Sine Wave	2.8V ~ 3.3V	±2ppm	-40°C ~ 85°C
