當前位置：首頁 » 貼片晶振 » Jauch晶振 » Q 19.2-JXS22-12-10/10-WA-LF,19.2MHz,Jauch進口晶振

prevnext

Q 19.2-JXS22-12-10/10-WA-LF,19.2MHz,Jauch進口晶振

頻率：19.2MHz

尺寸：2.5mm x 2.0mm

Q 19.2-JXS22-12-10/10-WA-LF,19.2MHz,Jauch進口晶振,Q 19.2-JXS22-12-10/10-WA-LF晶振,JXS22-WA無源晶振,石英晶體諧振器,頻率19.2MHz,Jauch進口晶振,2520mm晶振,超小型晶振,低老化晶振,負載12pf,工作溫度-20~70°C,四腳貼片晶振,家電影音系統晶振,數碼相機晶振,小型通信設備晶振,智能家居晶振.

訂購熱線：0755-27837162

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

Q 19.2-JXS22-12-10/10-WA-LF,19.2MHz,Jauch進口晶振 參數

型號		JXS22-WA
頻率		19.2MHz
頻率公差 at 25 °C		± 10 ppm
頻率穩定度		± 10 ppm
負載電容 CL		12pF
工作溫度		-20°C ~ +70 °C
并聯電容 Co		<3 pF
串聯電阻最大值 (ESR)		70Ω Max
儲存溫度		-40°C ~ +105 °C
最大驅動電平		100 µW
第一年老化		< ± 1 ppm

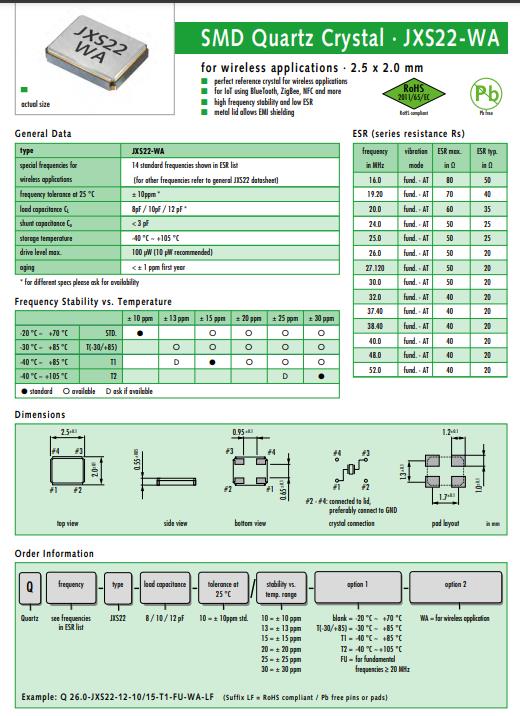

Q 19.2-JXS22-12-10/10-WA-LF,19.2MHz,Jauch進口晶振尺寸圖

Jauch晶振原廠編碼	制造商	型號	頻率	頻率容差	負載電容	Operating Mode	工作溫度
Q 19.2-JXS22-10-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	10pF	Fundamental	-20°C ~ 70°C
Q 19.2-JXS22-12-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	12pF	Fundamental	-20°C ~ 70°C
Q 19.2-JXS22-8-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	8pF	Fundamental	-20°C ~ 70°C
Q 19.2-JXS22-9-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	9pF	Fundamental	-20°C ~ 70°C
Q 20.0-JXS22-10-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	10pF	Fundamental	-20°C ~ 70°C
Q 20.0-JXS22-12-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	12pF	Fundamental	-20°C ~ 70°C
Q 20.0-JXS22-8-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	8pF	Fundamental	-20°C ~ 70°C
Q 20.0-JXS22-9-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	9pF	Fundamental	-20°C ~ 70°C
Q 24.0-JXS22-10-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	10pF	Fundamental	-20°C ~ 70°C
Q 24.0-JXS22-12-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	12pF	Fundamental	-20°C ~ 70°C
Q 24.0-JXS22-8-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	8pF	Fundamental	-20°C ~ 70°C
Q 24.0-JXS22-9-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	9pF	Fundamental	-20°C ~ 70°C
Q 26.0-JXS22-10-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	10pF	Fundamental	-20°C ~ 70°C
Q 26.0-JXS22-12-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	12pF	Fundamental	-20°C ~ 70°C
Q 26.0-JXS22-8-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	8pF	Fundamental	-20°C ~ 70°C
Q 26.0-JXS22-9-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	9pF	Fundamental	-20°C ~ 70°C
Q 27.12-JXS22-10-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	27.12MHz	±10ppm	10pF	Fundamental	-20°C ~ 70°C
Q 27.12-JXS22-12-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	27.12MHz	±10ppm	12pF	Fundamental	-20°C ~ 70°C
Q 27.12-JXS22-8-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	27.12MHz	±10ppm	8pF	Fundamental	-20°C ~ 70°C
Q 27.12-JXS22-9-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	27.12MHz	±10ppm	9pF	Fundamental	-20°C ~ 70°C
Q 16.0-JXS22-10-10/10-WA-LF	Jauch晶振	JXS22-WA	16MHz	±10ppm	10pF	Fundamental	-20°C ~ 70°C
Q 16.0-JXS22-12-10/10-WA-LF	Jauch晶振	JXS22-WA	16MHz	±10ppm	12pF	Fundamental	-20°C ~ 70°C
Q 16.0-JXS22-8-10/10-WA-LF	Jauch晶振	JXS22-WA	16MHz	±10ppm	8pF	Fundamental	-20°C ~ 70°C
Q 16.0-JXS22-8-10/10-WA-LF	Jauch晶振	JXS22-WA	16MHz	±10ppm	8pF	Fundamental	-20°C ~ 70°C
Q 16.0-JXS22-8-10/10-WA-LF	Jauch晶振	JXS22-WA	16MHz	±10ppm	8pF	Fundamental	-20°C ~ 70°C
Q 16.0-JXS22-9-10/10-WA-LF	Jauch晶振	JXS22-WA	16MHz	±10ppm	9pF	Fundamental	-20°C ~ 70°C
Q 16.0-JXS22-9-10/10-WA-LF	Jauch晶振	JXS22-WA	16MHz	±10ppm	9pF	Fundamental	-20°C ~ 70°C
Q 16.0-JXS22-9-10/10-WA-LF	Jauch晶振	JXS22-WA	16MHz	±10ppm	9pF	Fundamental	-20°C ~ 70°C
Q 19.2-JXS22-10-10/15-T1-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	10pF	Fundamental	-40°C ~ 85°C
Q 19.2-JXS22-10-10/15-T1-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	10pF	Fundamental	-40°C ~ 85°C
Q 19.2-JXS22-10-10/15-T1-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	10pF	Fundamental	-40°C ~ 85°C
Q 19.2-JXS22-12-10/15-T1-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	12pF	Fundamental	-40°C ~ 85°C
Q 19.2-JXS22-12-10/15-T1-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	12pF	Fundamental	-40°C ~ 85°C
Q 19.2-JXS22-12-10/15-T1-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	12pF	Fundamental	-40°C ~ 85°C
Q 19.2-JXS22-8-10/15-T1-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	8pF	Fundamental	-40°C ~ 85°C
Q 19.2-JXS22-8-10/15-T1-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	8pF	Fundamental	-40°C ~ 85°C
Q 19.2-JXS22-8-10/15-T1-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	8pF	Fundamental	-40°C ~ 85°C
Q 19.2-JXS22-9-10/15-T1-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	9pF	Fundamental	-40°C ~ 85°C
Q 19.2-JXS22-9-10/15-T1-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	9pF	Fundamental	-40°C ~ 85°C
Q 19.2-JXS22-9-10/15-T1-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	9pF	Fundamental	-40°C ~ 85°C
Q 20.0-JXS22-10-10/15-T1-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	10pF	Fundamental	-40°C ~ 85°C
Q 20.0-JXS22-10-10/15-T1-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	10pF	Fundamental	-40°C ~ 85°C
Q 20.0-JXS22-10-10/15-T1-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	10pF	Fundamental	-40°C ~ 85°C
Q 20.0-JXS22-12-10/15-T1-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	12pF	Fundamental	-40°C ~ 85°C
Q 20.0-JXS22-12-10/15-T1-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	12pF	Fundamental	-40°C ~ 85°C
Q 20.0-JXS22-12-10/15-T1-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	12pF	Fundamental	-40°C ~ 85°C
Q 20.0-JXS22-8-10/15-T1-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	8pF	Fundamental	-40°C ~ 85°C
