NX1610SA-32.768KHZ-EXS00A-MU00658,32.768KHz,1610mm
頻率：32.768KHz
尺寸：1.6mm×1.0mm
NX1610SA-32.768KHZ-EXS00A-MU00658,32.768KHz,1610mm ,日本NDK晶振,NX1610SA-32.768KHZ-EXS00A-MU00658晶振,32.768KHz晶振,1610mm晶振,超小型晶振,兩腳貼片晶振,石英晶體諧振器,移動通信晶振,辦公自動化晶振,多媒體視聽設備晶振,影音設備晶振.
NX1610SA-32.768KHZ-EXS00A-MU00658,32.768KHz,1610mm ,日本NDK晶振,NX1610SA-32.768KHZ-EXS00A-MU00658晶振,32.768KHz晶振,1610mm晶振,超小型晶振,兩腳貼片晶振,石英晶體諧振器,移動通信晶振,辦公自動化晶振,多媒體視聽設備晶振,影音設備晶振.
NX1610SA-32.768KHZ-EXS00A-MU00658,32.768KHz,1610mm 特點
超緊湊,薄,重量輕音叉晶體單位
●超薄緊湊(1.6× 1.0 × 0.45mm)
●優異的電氣性能，適用于移動通信、辦公辦公自動化)和AV(視聽)應用展示
●表面貼裝晶體振蕩器(回流焊是可能的)
●無鉛。滿足使用無鉛焊料的回流剖面要求

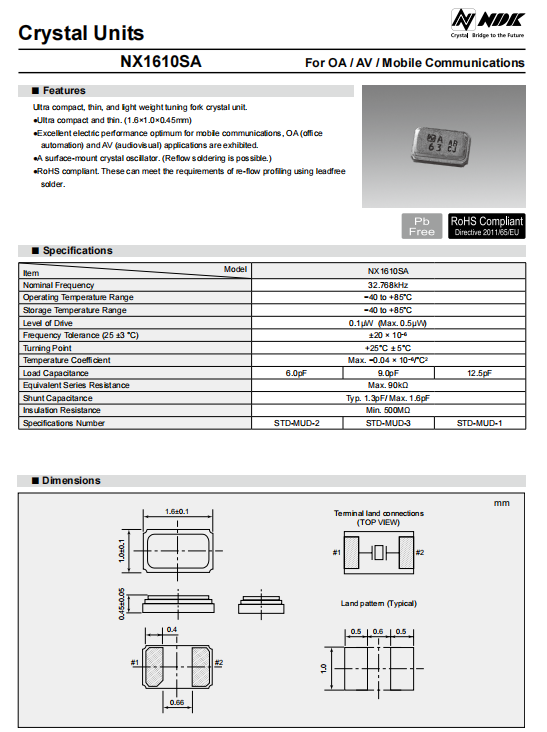

NX1610SA-32.768KHZ-EXS00A-MU00658,32.768KHz,1610mm 參數表
| 規格參數 | NX1610SA |
| 頻率 | 32.768KHz |
| 頻率公差 (25 ±3 °C) | ± 20PPM |
| 溫度系數 | Max. −0.04 × 10−6/°C2 |
| 工作溫度 | -40°C to +85°C |
| 保存溫度 | -40°C to +85°C |
| 等效串聯電阻(ESR) | 90 KΩ |
| 驅動電平 | 5.0 μW Max |
| 負載電容 (CL) | 6 pF |
| 并聯電容 |
Typ. 1.3pF/ Max. 1.6pF |
| 絕緣電阻 |
Min. 500MΩ |
| 規格編號 | STD-MUD-2 |
NX1610SA-32.768KHZ-EXS00A-MU00658,32.768KHz,1610mm 尺寸圖
| 原廠編碼 | 生產廠家 | 型號 | 頻率 | 頻率偏差 | 負載電容 | 工作溫度 | 尺寸 |
| NX3215SA-32.768K-STD-MUA-8 | NDK晶振 | NX3215SA | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| NX3215SA-32.768K-STD-MUA-8 | NDK晶振 | NX3215SA | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| NX3215SA-32.768K-STD-MUA-8 | NDK晶振 | NX3215SA | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| NX3215SA-32.768K-STD-MUA-9 | NDK晶振 | NX3215SA | 32.768kHz | ±20ppm | 9pF | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| NX3215SA-32.768K-STD-MUA-9 | NDK晶振 | NX3215SA | 32.768kHz | ±20ppm | 9pF | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| NX3215SA-32.768K-STD-MUA-9 | NDK晶振 | NX3215SA | 32.768kHz | ±20ppm | 9pF | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| NX3215SA-32.768K-STD-MUA-14 | NDK晶振 | NX3215SA | 32.768kHz | ±20ppm | 6pF | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| NX3215SA-32.768K-STD-MUA-14 | NDK晶振 | NX3215SA | 32.768kHz | ±20ppm | 6pF | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| NX3215SA-32.768K-STD-MUA-14 | NDK晶振 | NX3215SA | 32.768kHz | ±20ppm | 6pF | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| NX3215SA-32.768K-STD-MUS-2 | NDK晶振 | NX3215SA | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 125°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| NX3215SA-32.768K-STD-MUS-2 | NDK晶振 | NX3215SA | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 125°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| NX3215SA-32.768K-STD-MUS-2 | NDK晶振 | NX3215SA | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 125°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| NX2012SA-32.768K-STD-MUB-1 | NDK晶振 | NX2012SA | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C | 0.081" L x 0.047" W (2.05mm x 1.20mm) |
| NX2012SA-32.768K-STD-MUB-1 | NDK晶振 | NX2012SA | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C | 0.081" L x 0.047" W (2.05mm x 1.20mm) |
| NX2012SA-32.768K-STD-MUB-1 | NDK晶振 | NX2012SA | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C | 0.081" L x 0.047" W (2.05mm x 1.20mm) |
| NX1610SA-32.768KHZ-EXS00A-MU00658 | NDK晶振 | NX1610SA | 32.768kHz | ±20ppm | 6pF | -40°C ~ 85°C | 0.063" L x 0.039" W (1.60mm x 1.00mm) |
| NX1610SA-32.768KHZ-EXS00A-MU00658 | NDK晶振 | NX1610SA | 32.768kHz | ±20ppm | 6pF | -40°C ~ 85°C | 0.063" L x 0.039" W (1.60mm x 1.00mm) |
| NX1610SA-32.768KHZ-EXS00A-MU00658 | NDK晶振 | NX1610SA | 32.768kHz | ±20ppm | 6pF | -40°C ~ 85°C | 0.063" L x 0.039" W (1.60mm x 1.00mm) |
