NX1210AB-32MHZ-EXS00A-CS10192|日本NDK晶振|1210mm|10pf
頻率：32MHZ
尺寸：1.2mm×1.0mm
NX1210AB-32MHZ-EXS00A-CS10192|日本NDK晶振|1210mm|10pf ,NX1210AB-32MHZ-EXS00A-CS10192晶振,日本NDK晶振,1210mm,負載10pf,頻率32MHz,超小型晶振,輕薄型晶振,工作溫度-30~85°C,無線局域網晶振,藍牙模塊晶振,智能手機晶振,平板電腦晶振,通信設備晶振,智能音響晶振.
NX1210AB-32MHZ-EXS00A-CS10192|日本NDK晶振|1210mm|10pf ,NX1210AB-32MHZ-EXS00A-CS10192晶振,日本NDK晶振,1210mm,負載10pf,頻率32MHz,超小型晶振,輕薄型晶振,工作溫度-30~85°C,無線局域網晶振,藍牙模塊晶振,智能手機晶振,平板電腦晶振,通信設備晶振,智能音響晶振.
NX1210AB-32MHZ-EXS00A-CS10192|日本NDK晶振|1210mm|10pf 特點
超緊湊和薄的表面貼裝型晶體單元
NX1210AB-32MHZ-EXS00A-CS10192|日本NDK晶振|1210mm|10pf 參數表
規格參數
NX1210AB
頻率
32MHz
振蕩模式
Fundamental
頻率公差 (25 ±3 °C)
± 10PPM
頻率溫度特性(with reference to +25 °C)
± 15PPM
工作溫度
-30°C to +85°C
保存溫度
-40°C to +85°C
等效串聯電阻(ESR)
100 Ω
驅動電平
10 μW
負載電容 (CL)
10 pF
規格編號
STD-CIX-1

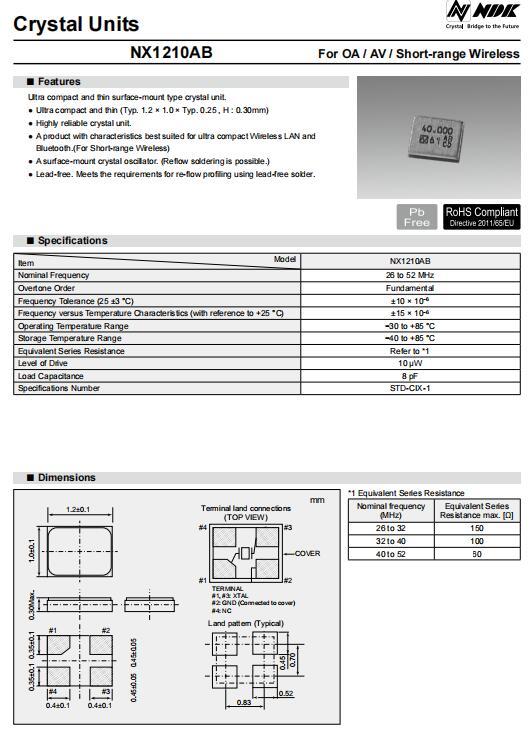

NX1210AB-32MHZ-EXS00A-CS10192|日本NDK晶振|1210mm|10pf 尺寸圖
| 原廠編碼 | 生產廠家 | 型號 | 頻率 | 頻率穩定度 | 頻率偏差 | 負載電容 | 工作溫度 |
| NX1210AB-26MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 26MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-27MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 27MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-28MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 28MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-29MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 29MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-30MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 30MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-31MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 31MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-32MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 32MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-33MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 33MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-34MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 34MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-35MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 35MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-36MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 36MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-37MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 37MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-38MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 38MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-39MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 39MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-40MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 40MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-41MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 41MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-42MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 42MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-43MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 43MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-44MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 44MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-45MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 45MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-46MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 46MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-47MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 47MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-48MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 48MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-49MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 49MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-50MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 50MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-51MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 51MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| NX1210AB-52MHZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 52MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
| MNX1210AB-38.8HZ-EXS00A-CS10192 | NDK晶振 | NX1210AB | 38.8MHz | ±15ppm | ±10ppm | 10pF | -30°C ~ 85°C |
