MXO45HSTLV-2I-24M5760,CTS石英晶振,6G模塊晶振
頻率：24.576MHZ
尺寸：13.2 × 13.2 × 5.5mm
MXO45HSTLV-2I-24M5760,CTS石英晶振,6G模塊晶振,CTS石英晶振,MXO45HSLV有源晶振,MXO45HSTLV-2I-24M5760晶振,正方形鐘振,石英振蕩器,頻率24.576MHz,電壓3.3V,工作溫度-40~85°C,頻率穩定度100ppm,提供低成本的設計,支持舊的HCMOS / TTL應用程序,數據通信晶振,微控制器/ FPGAs晶振,組網設備晶振,以太網/千兆以太網晶振,光纖通道晶振,測試與測量設備晶振.
MXO45HSTLV-2I-24M5760,CTS石英晶振,6G模塊晶振,CTS石英晶振,MXO45HSLV有源晶振,MXO45HSTLV-2I-24M5760晶振,正方形鐘振,進口晶體振蕩器,頻率24.576MHz,電壓3.3V,工作溫度-40~85°C,頻率穩定度100ppm,提供低成本的設計,支持舊的HCMOS / TTL應用程序,數據通信晶振,微控制器/ FPGAs晶振,組網設備晶振,以太網/千兆以太網晶振,光纖通道晶振,測試與測量設備晶振.
MXO45HSTLV-2I-24M5760,CTS石英晶振,6G模塊晶振 特點：
1.標準8針金屬DIP封裝
2.基本和第三泛音晶體設計
3.低相位抖動性能
5.+ 3.3 v操作
6.輸出啟用選項可用
7.三種批準的包裝方法。
MXO45HSTLV-2I-24M5760,CTS石英晶振,6G模塊晶振 參數
項目
符號
規格說明
條件
額定頻率
f_nom
24.576MHz
請聯系我們以便獲取其它可用頻率的相關信息
電源電壓
Vcc
3.3V
儲存溫度
T_stg
-40℃~+100℃
開封裸存
工作溫度
T_use
-40℃~ +85℃
頻率穩定度
f_tol
±100 ppm
-20℃~ +70℃
功耗
Icc
25mA Max
輸出占空比
SYM
45%MIN
55%MAX
輸出電壓
VOH
Vcc-0.9V Min
CMOS Load
VOL
Vcc-0.1V Max
CMOS Load
輸出方式
HCMOS
輸出電流電平
IOH
-8mA Max.
VOH = 2.2V, VCC = 3.3V
IOL
8mA Max.
VOL = 0.4V, VCC = 3.3V
上升/下降時間
tr/ tf
8ns max
20.001MHz to 80MHz [CL = 15pF]
振蕩啟動時間
t_str
10ms max
Application of VCC, CL = 15pF
頻率老化
f_aging
±5ppm max
+25 °C, 第一年,nominal VCC

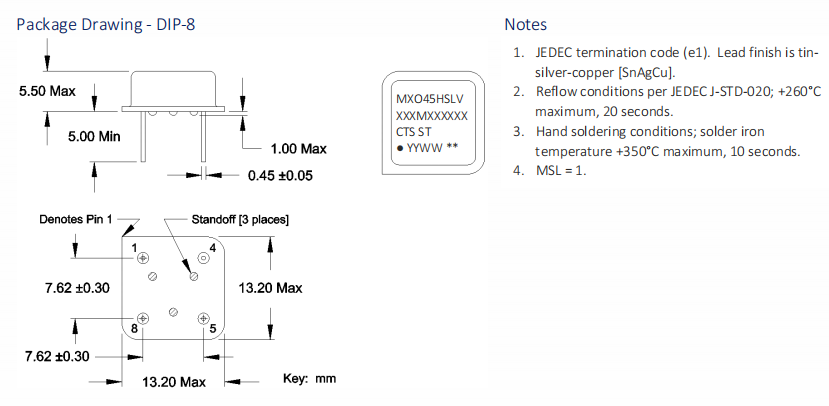

MXO45HSTLV-2I-24M5760,CTS石英晶振,6G模塊晶振尺寸圖
| 原廠代碼 | 晶振品牌 | 型號 | 頻率 | 電壓 | 頻率穩定度 | 工作溫度 | 電流 |
| MXO45HSLV-2C-50M0000 | CTS晶振 | MXO45HSLV | 50MHz | 5V | ±100ppm | -20°C ~ 70°C | 60mA |
| MXO45HSLV-2C-1M0000 | CTS晶振 | MXO45HSLV | 1MHz | 3.3V | ±100ppm | -20°C ~ 70°C | 17mA |
| MXO45HSLV-2I-20M0000 | CTS晶振 | MXO45HSLV | 20MHz | 3.3V | ±100ppm | -40°C ~ 85°C | 17mA |
| MXO45HSLV-3C-12M2880 | CTS晶振 | MXO45HSLV | 12.288MHz | 3.3V | ±50ppm | -20°C ~ 70°C | 17mA |
| MXO45HSLV-3C-13M0000 | CTS晶振 | MXO45HSLV | 13MHz | 3.3V | ±50ppm | -20°C ~ 70°C | 17mA |
| MXO45HSLV-3C-20M0000 | CTS晶振 | MXO45HSLV | 20MHz | 3.3V | ±50ppm | -20°C ~ 70°C | 17mA |
| MXO45HSLV-3C-25M0000 | CTS晶振 | MXO45HSLV | 25MHz | 3.3V | ±50ppm | -20°C ~ 70°C | 25mA |
| MXO45HSLV-3C-40M0000 | CTS晶振 | MXO45HSLV | 40MHz | 3.3V | ±50ppm | -20°C ~ 70°C | 25mA |
| MXO45HSLV-3C-45M0000 | CTS晶振 | MXO45HSLV | 45MHz | 3.3V | ±50ppm | -20°C ~ 70°C | 35mA |
| MXO45HSLV-3C-50M0000 | CTS晶振 | MXO45HSLV | 50MHz | 3.3V | ±50ppm | -20°C ~ 70°C | 35mA |
| MXO45HSLV-3I-20M0000 | CTS晶振 | MXO45HSLV | 20MHz | 3.3V | ±50ppm | -40°C ~ 85°C | 17mA |
| MXO45HSLV-3I-25M0000 | CTS晶振 | MXO45HSLV | 25MHz | 3.3V | ±50ppm | -40°C ~ 85°C | 25mA |
| MXO45HSLV-3I-40M0000 | CTS晶振 | MXO45HSLV | 40MHz | 3.3V | ±50ppm | -40°C ~ 85°C | 25mA |
| MXO45HSTLV-2C-20M0000 | CTS晶振 | MXO45HSTLV | 20MHz | 3.3V | ±100ppm | -20°C ~ 70°C | 17mA |
| MXO45HSTLV-2C-40M0000 | CTS晶振 | MXO45HSTLV | 40MHz | 3.3V | ±100ppm | -20°C ~ 70°C | 25mA |
| MXO45HSTLV-2C-4M0000 | CTS晶振 | MXO45HSTLV | 4MHz | 3.3V | ±100ppm | -20°C ~ 70°C | 17mA |
| MXO45HSTLV-2I-20M0000 | CTS晶振 | MXO45HSTLV | 20MHz | 3.3V | ±100ppm | -40°C ~ 85°C | 17mA |
| MXO45HSTLV-2I-24M5760 | CTS晶振 | MXO45HSTLV | 24.576MHz | 3.3V | ±100ppm | -40°C ~ 85°C | 25mA |
| MXO45HSTLV-3C-20M0000 | CTS晶振 | MXO45HSTLV | 20MHz | 3.3V | ±50ppm | -20°C ~ 70°C | 17mA |
| MXO45HSTLV-3C-24M0000 | CTS晶振 | MXO45HSTLV | 24MHz | 3.3V | ±50ppm | -20°C ~ 70°C | 25mA |
| MXO45HSTLV-3C-2M0480 | CTS晶振 | MXO45HSTLV | 2.048MHz | 3.3V | ±50ppm | -20°C ~ 70°C | 17mA |
| MXO45HSTLV-3C-4M0000 | CTS晶振 | MXO45HSTLV | 4MHz | 3.3V | ±50ppm | -20°C ~ 70°C | 17mA |
| MXO45HSTLV-3C-50M0000 | CTS晶振 | MXO45HSTLV | 50MHz | 3.3V | ±50ppm | -20°C ~ 70°C | 35mA |
| MXO45HSTLV-3C-60M0000 | CTS晶振 | MXO45HSTLV | 60MHz | 3.3V | ±50ppm | -20°C ~ 70°C | 35mA |
| MXO45HSTLV-3C-8M1920 | CTS晶振 | MXO45HSTLV | 8.192MHz | 3.3V | ±50ppm | -20°C ~ 70°C | 17mA |
| MXO45HSTLV-3I-25M0000 | CTS晶振 | MXO45HSTLV | 25MHz | 3.3V | ±50ppm | -40°C ~ 85°C | 25mA |
| MXO45HSTLV-3I-4M0000 | CTS晶振 | MXO45HSTLV | 4MHz | 3.3V | ±50ppm | -40°C ~ 85°C | 17mA |
| MXO45T-2C-11M0592 | CTS晶振 | MXO45T | 11.0592MHz | 5V | ±100ppm | -20°C ~ 70°C | 26mA |
| MXO45T-2C-1M5440 | CTS晶振 | MXO45T | 1.544MHz | 5V | ±100ppm | -20°C ~ 70°C | 26mA |
| MXO45T-2C-33M0000 | CTS晶振 | MXO45T | 33MHz | 5V | ±100ppm | -20°C ~ 70°C | 40mA |
| MXO45T-2C-4M0960 | CTS晶振 | MXO45T | 4.096MHz | 5V | ±100ppm | -20°C ~ 70°C | 26mA |
| MXO45T-2I-10M0000 | CTS晶振 | MXO45T | 10MHz | 5V | ±100ppm | -40°C ~ 85°C | 26mA |
| MXO45T-2I-12M0000 | CTS晶振 | MXO45T | 12MHz | 5V | ±100ppm | -40°C ~ 85°C | 26mA |
| MXO45T-2I-16M0000 | CTS晶振 | MXO45T | 16MHz | 5V | ±100ppm | -40°C ~ 85°C | 26mA |
| MXO45T-2I-16M6700 | CTS晶振 | MXO45T | 16.67MHz | 5V | ±100ppm | -40°C ~ 85°C | 26mA |
| MXO45T-2I-20M0000 | CTS晶振 | MXO45T | 20MHz | 5V | ±100ppm | -40°C ~ 85°C | 26mA |
| MXO45T-2I-25M0000 | CTS晶振 | MXO45T | 25MHz | 5V | ±100ppm | -40°C ~ 85°C | 40mA |
| MXO45T-2I-33M3300 | CTS晶振 | MXO45T | 33.33MHz | 5V | ±100ppm | -40°C ~ 85°C | 40mA |
| MXO45T-2I-40M0000 | CTS晶振 | MXO45T | 40MHz | 5V | ±100ppm | -40°C ~ 85°C | 40mA |
| MXO45T-2I-60M0000 | CTS晶振 | MXO45T | 60MHz | 5V | ±100ppm | -40°C ~ 85°C | 60mA |
| MXO45T-3C-11M0592 | CTS晶振 | MXO45T | 11.0592MHz | 5V | ±50ppm | -20°C ~ 70°C | 26mA |
| MXO45T-3C-1M5440 | CTS晶振 | MXO45T | 1.544MHz | 5V | ±50ppm | -20°C ~ 70°C | 26mA |
| MXO45T-3C-60M0000 | CTS晶振 | MXO45T | 60MHz | 5V | ±50ppm | -20°C ~ 70°C | 60mA |
| MXO45T-3I-10M0000 | CTS晶振 | MXO45T | 10MHz | 5V | ±50ppm | -40°C ~ 85°C | 26mA |
| MXO45T-3I-20M0000 | CTS晶振 | MXO45T | 20MHz | 5V | ±50ppm | -40°C ~ 85°C | 26mA |
| MXO45T-3I-3M6864 | CTS晶振 | MXO45T | 3.6864MHz | 5V | ±50ppm | -40°C ~ 85°C | 26mA |
| MXO45T-3I-40M0000 | CTS晶振 | MXO45T | 40MHz | 5V | ±50ppm | -40°C ~ 85°C | 40mA |
| MXO45T-3I-6M1440 | CTS晶振 | MXO45T | 6.144MHz | 5V | ±50ppm | -40°C ~ 85°C | 26mA |
| MXO46-2I-25M0000 | CTS晶振 | MXO46 | 25MHz | 5V | ±100ppm | -40°C ~ 85°C | 40mA |
| MXO46-2I-50M0000 | CTS晶振 | MXO46 | 50MHz | 5V | ±100ppm | -40°C ~ 85°C | 60mA |
| MXO46HST-2C-33M0000 | CTS晶振 | MXO46HST | 33MHz | 5V | ±100ppm | -20°C ~ 70°C | 40mA |
| MXO46HST-2C-50M0000 | CTS晶振 | MXO46HST | 50MHz | 5V | ±100ppm | -20°C ~ 70°C | 60mA |
| MXO46HST-2C-60M0000 | CTS晶振 | MXO46HST | 60MHz | 5V | ±100ppm | -20°C ~ 70°C | 60mA |
| MXO46T-2C-5M0000 | CTS晶振 | MXO46T | 5MHz | 5V | ±100ppm | -20°C ~ 70°C | 26mA |
| MXO46T-2I-33M0000 | CTS晶振 | MXO46T | 33MHz | 5V | ±100ppm | -40°C ~ 85°C | 40mA |
| MXO46T-2I-33M3300 | CTS晶振 | MXO46T | 33.33MHz | 5V | ±100ppm | -40°C ~ 85°C | 40mA |
| MXO45HSLV-2C-25M0000 | CTS晶振 | MXO45HSLV | 25MHz | 3.3V | ±100ppm | -20°C ~ 70°C | 25mA |
| MXO45HSTLV-2C-24M0000 | CTS晶振 | MXO45HSTLV | 24MHz | 3.3V | ±100ppm | -20°C ~ 70°C | 25mA |
| MXO45HSTLV-2C-50M0000 | CTS晶振 | MXO45HSTLV | 50MHz | 3.3V | ±100ppm | -20°C ~ 70°C | 35mA |
| MXO45T-2I-1M048576 | CTS晶振 | MXO45T | 1.048576MHz | 5V | ±100ppm | -40°C ~ 85°C | 26mA |
| MXO45TLV-2C-50M0000 | CTS晶振 | MXO45TLV | 50MHz | 3.3V | ±100ppm | -20°C ~ 70°C | 35mA |
| MXO45HSTLV-6C-37M0560 | CTS晶振 | MXO45HSTLV | 37.056MHz | 3.3V | ±20ppm | -20°C ~ 70°C | 25mA |
