ASAAIG-24.000MHZ-K-C-S-T,2016有源貼片晶振,Abracon車規晶振
頻率：24.000MHZ

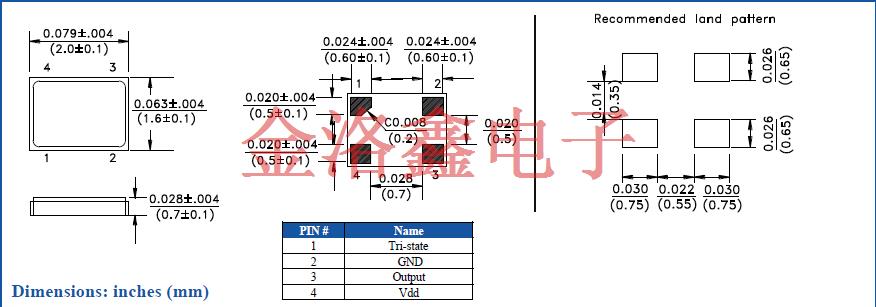

尺寸：2016mm
ASAAIG-24.000MHZ-K-C-S-T,2016有源貼片晶振,Abracon車規晶振
ASAAIG-24.000MHZ-K-C-S-T是Abracon艾博康晶振專為車載中控系統打造的2016有源貼片車規晶振,24MHz精準頻點為中控主機的多媒體解碼,導航定位,車機互聯等功能提供穩定時序.其2.0mm×1.6mm的2016超小封裝適配中控主板緊湊布局,同時通過AEC-Q200車規認證,可耐受-40℃至+125℃的車內極端溫差,抗電磁干擾與抗振動性能優異,為車載中控系統的流暢運行筑牢時基根基.
ASAAIG-24.000MHZ-K-C-S-T,2016有源貼片晶振,Abracon車規晶振
|
原廠型號 Originalmodel： |
ASAAIG-24.000MHZ-K-C-S-T |
品牌brand： |
Abracon |
|
Manufacturer品牌 |
Abracon |
OperatingTemperature溫度 |
-40+125℃ |
|
Series型號 |
ASAAIG |
Current-Supply(Max) |
- |
|
Type類型 |
XO |
PackageHeight高度 |
0.7mm |
|
Frequency頻率 |
24M |
Termination 腳位 |
4-pad |
|
輸出方式 Output： |
CMOS |
PackageType 封裝類型 |
4-Smd |
|
Voltage-Supply電壓 |
3.3V |
Packaging 包裝 |
TapeandReel |
|
FrequencyStability頻率穩定度 |
50PP |
安裝方式 Installation： |
Surfacemount |
|
Size/Dimension尺寸 |
最小包裝數MPQ： |
3000 |
