AB26TRB-32.768KHZ-T|石英SMD晶振|32.768KHz|-40~85°C

頻率：32.768KHz

尺寸：6.0 x 1.9mm

AB26TRB-32.768KHZ-T|石英SMD晶振|32.768KHz|-40~85°C,Abracon歐美晶振,AB26TRB-32.768KHZ-T晶振,石英SMD晶振,32.768KHz晶振,工作溫度-40~85°C,小體積晶振,耐高溫晶振,負載12.5pf,AB26TRB無源晶振,實時時鐘晶振,測量儀器晶振,藍牙音響晶振,無線應用晶振.

訂購熱線：0755-27837162

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

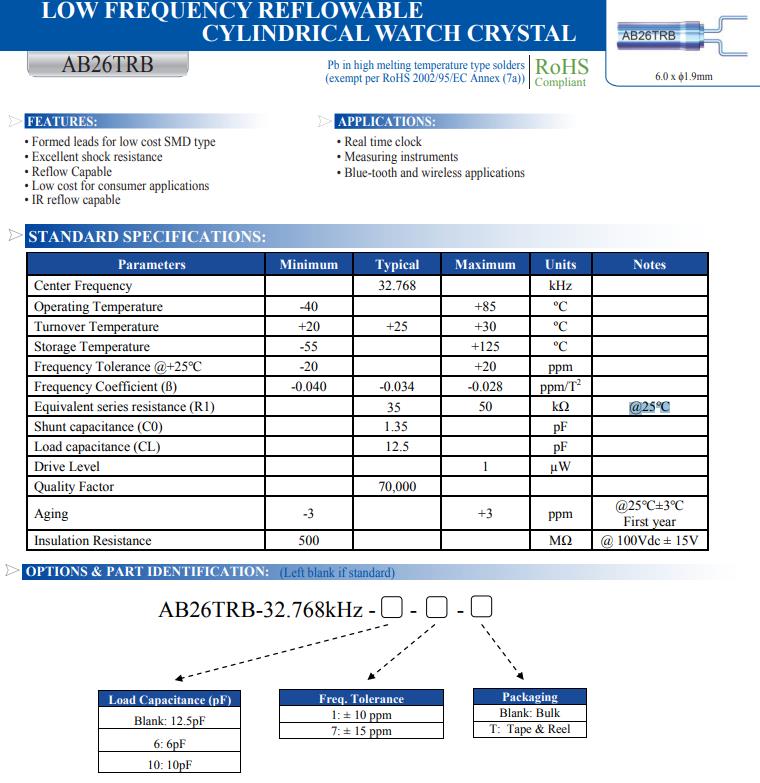

AB26TRB-32.768KHZ-T|石英SMD晶振|32.768KHz|-40~85°C 參數

ABRACON P/N			AB26TRB Series
頻率			32.768Hz
工作溫度			-40°C to +85°C
保存溫度			-55°C to +125°C
頻率公差			± 20PPM Max
頻率系數（?）			-0.034ppm/T2 typ
等效串聯電阻(R1)			50 KΩ Max @25°C
并聯電容 (C0)			1.35 pF typ
負載電容 (CL)			12.5 pF
激勵功率			1 μW max
老化性			±3 ppm max @25°C±3°C First year
絕緣電阻			500 MΩ@ 100Vdc ± 15V

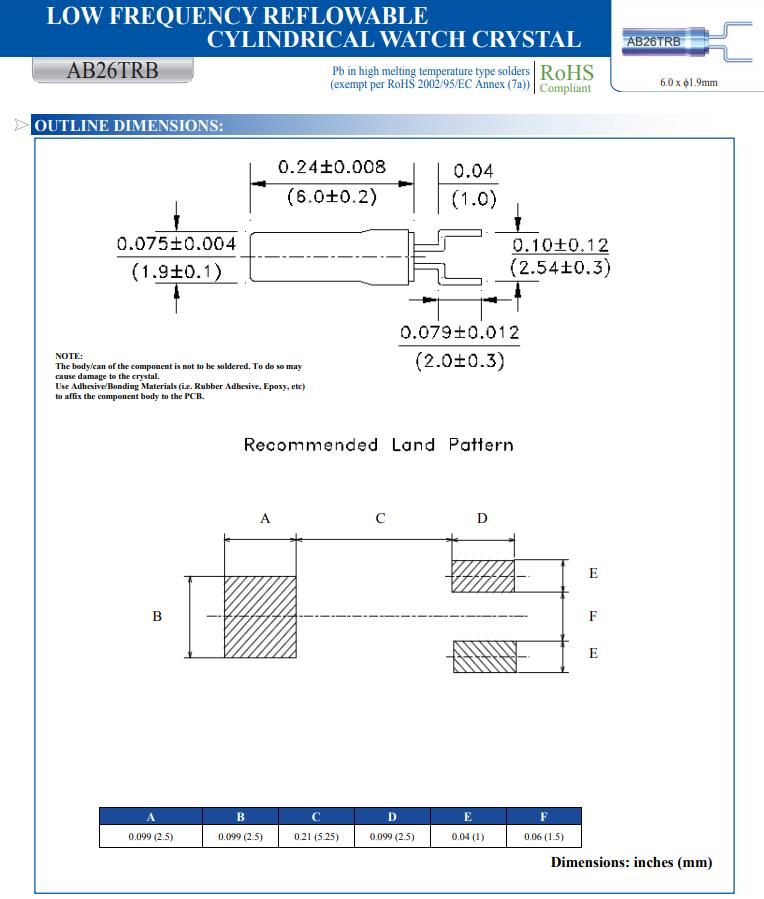

AB26TRB-32.768KHZ-T|石英SMD晶振|32.768KHz|-40~85°C 尺寸圖

原廠編碼	生產廠家	型號	頻率	頻率偏差	負載電容	工作溫度
AB26TRQ-32.768KHZ-T	Abracon晶振	AB26TRQ	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
AB26TRQ-32.768KHZ-T	Abracon晶振	AB26TRQ	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
AB26TRQ-32.768KHZ-T	Abracon晶振	AB26TRQ	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
AB26T-32.768KHZ	Abracon晶振	AB26T	32.768kHz	±20ppm	12.5pF	-10°C ~ 60°C
AB26TRB-32.768KHZ-T	Abracon晶振	AB26TRB	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
AB26TRB-32.768KHZ-T	Abracon晶振	AB26TRB	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
AB26TRB-32.768KHZ-T	Abracon晶振	AB26TRB	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
AB15T-32.768KHZ-T	Abracon晶振	AB15T	32.768kHz	±20ppm	12.5pF	-20°C ~ 70°C
AB308-4.000MHZ	Abracon晶振	AB308	4MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-10.000MHZ	Abracon晶振	AB308	10MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-12.000MHZ	Abracon晶振	AB308	12MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-12.288MHZ	Abracon晶振	AB308	12.288MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-12.352MHZ	Abracon晶振	AB308	12.352MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-14.31818MHZ	Abracon晶振	AB308	14.31818MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-14.7456MHZ	Abracon晶振	AB308	14.7456MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-16.000MHZ	Abracon晶振	AB308	16MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-16.257MHZ	Abracon晶振	AB308	16.257MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-16.667MHZ	Abracon晶振	AB308	16.667MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-20.000MHZ	Abracon晶振	AB308	20MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-4.9152MHZ	Abracon晶振	AB308	4.9152MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-5.000MHZ	Abracon晶振	AB308	5MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-6.000MHZ	Abracon晶振	AB308	6MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-7.3728MHZ	Abracon晶振	AB308	7.3728MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-8.000MHZ	Abracon晶振	AB308	8MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-28.000MHZ	Abracon晶振	AB308	28MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-28.6363MHZ	Abracon晶振	AB308	28.6363MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-29.4912MHZ	Abracon晶振	AB308	29.4912MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-53.125MHZ	Abracon晶振	AB308	53.125MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-8.000MHZ	Abracon晶振	AB308	8MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-10.000MHZ	Abracon晶振	AB308	10MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-12.000MHZ	Abracon晶振	AB308	12MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-16.000MHZ	Abracon晶振	AB308	16MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-20.000MHZ	Abracon晶振	AB308	20MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-5.000MHZ	Abracon晶振	AB308	5MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-6.000MHZ	Abracon晶振	AB308	6MHz	±30ppm	16pF	-10°C ~ 60°C
AB308-7.3728MHZ	Abracon晶振	AB308	7.3728MHz	±30ppm	16pF	-10°C ~ 60°C
