406C35B27M00000-6035mm-CTS石英晶振-27MHz-13pf

頻率：27MHz

尺寸：6.0mm x 3.5mm

406C35B27M00000-6035mm-CTS石英晶振-27MHz-13pf,406C35B27M00000晶振,6035mm晶振,CTS石英晶振,頻率27MHz,負載13pf,工作溫度-20~70°C,陶瓷晶振,四腳SMD晶振,無線通信晶振,寬帶接入晶振,測試和測量設備晶振,計算機外圍設備晶振,便攜式設備晶振.

訂購熱線：0755-27837162

406C35B27M00000-6035mm-CTS石英晶振-27MHz-13pf 特征

1.標準6.0mm x 3.5mm陶瓷表面貼裝封裝基本晶體設計

2.頻率范圍8 - 52MHz 頻率公差±30ppm標準 頻率穩定性±50ppm標準 工作溫度-40℃~ +85℃

3.穩定的頻率過溫和驅動電平膠帶和卷軸包裝標準, EIA-481 符合RoHS/綠色標準

4.406型是一種接縫密封陶瓷封裝石英諧振器，提供卓越的性能廣泛的應用，包括;無線通信、寬帶接入、WLAN/WiMax/WIFI，測試和測量，便攜式設備和計算機外圍設備

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

406C35B27M00000-6035mm-CTS石英晶振-27MHz-13pf 參數

項目			數值
頻率			27MHz
操作模式			Fundamental
晶體切割			AT-Cut
工作溫度			-20°C to +70°C
保存溫度			-40°C to +100°C
頻率公差 @ +25°C			± 30PPM
工作溫度范圍內的頻率穩定性 ( ref. to +25°C)			± 50PPM
等效串聯電阻(R1)			45 Ω
并聯電容 (C0)			5.0pF Typical, 7.0pF Maximum
負載電容 (CL)			13 pF
激勵功率			200 μW Max
老化 @ +25°C			±3ppm/yr Typical
絕緣電阻			500M Ohms @ DC 100V

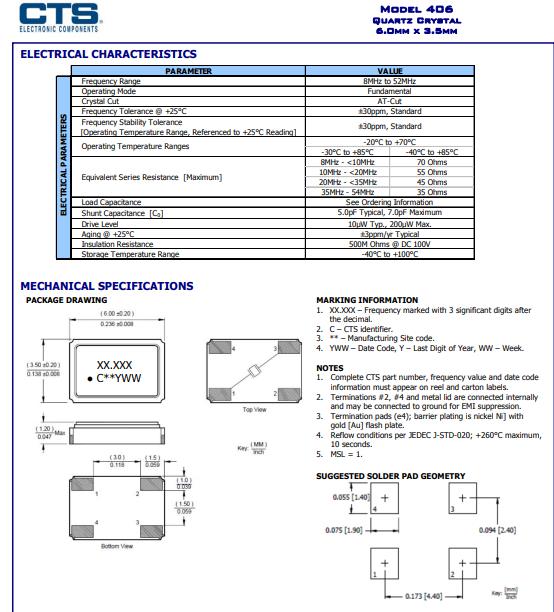

406C35B27M00000-6035mm-CTS石英晶振-27MHz-13pf 尺寸圖

原廠編碼	生產廠家	型號	頻率	頻率穩定度	頻率偏差	負載電容	ESR電阻	工作溫度
406C35B10M24500	CTS 晶振	406	10.245MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406I35D08M00000	CTS 晶振	406	8MHz	±50ppm	±30ppm	18pF	80 Ohm	-40°C ~ 85°C
406C35B13M00000	CTS 晶振	406	13MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406C35D12M00000	CTS 晶振	406	12MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
406C35B14M00000	CTS 晶振	406	14MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406C35B24M57600	CTS 晶振	406	24.576MHz	±50ppm	±30ppm	13pF	40 Ohm	-20°C ~ 70°C
406I35D10M00000	CTS 晶振	406	10MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
406I35D12M00000	CTS 晶振	406	12MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
406C35D25M00000	CTS 晶振	406	25MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
406C35B18M43200	CTS 晶振	406	18.432MHz	±50ppm	±30ppm	13pF	40 Ohm	-20°C ~ 70°C
406I35D14M31818	CTS 晶振	406	14.31818MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
406C35B10M00000	CTS 晶振	406	10MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406C35B44M54500	CTS 晶振	406	44.545MHz	±50ppm	±30ppm	13pF	40 Ohm	-20°C ~ 70°C
406C35B30M00000	CTS 晶振	406	30MHz	±50ppm	±30ppm	13pF	40 Ohm	-20°C ~ 70°C
406C35D24M00000	CTS 晶振	406	24MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
406C35B27M00000	CTS 晶振	406	27MHz	±50ppm	±30ppm	13pF	40 Ohm	-20°C ~ 70°C
406I35D16M00000	CTS 晶振	406	16MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
406C35B13M22500	CTS 晶振	406	13.225MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406C35B13M22500	CTS 晶振	406	13.225MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406C35B13M22500	CTS 晶振	406	13.225MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406I35D20M00000	CTS 晶振	406	20MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
406I35D20M00000	CTS 晶振	406	20MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
406I35D20M00000	CTS 晶振	406	20MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
406I35D24M00000	CTS 晶振	406	24MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
406I35D24M00000	CTS 晶振	406	24MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
406I35D24M00000	CTS 晶振	406	24MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
406I35D25M00000	CTS 晶振	406	25MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
406I35D25M00000	CTS 晶振	406	25MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
406I35D25M00000	CTS 晶振	406	25MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
406C35B12M28800	CTS晶振	406	12.288MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406C35B12M28800	CTS晶振	406	12.288MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406C35B12M28800	CTS晶振	406	12.288MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406C35B12M68800	CTS晶振	406	12.688MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406C35B12M68800	CTS晶振	406	12.688MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406C35B12M68800	CTS晶振	406	12.688MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406C35B14M31818	CTS晶振	406	14.31818MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406C35B14M85000	CTS晶振	406	14.85MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406C35B14M85000	CTS晶振	406	14.85MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406C35B14M85000	CTS晶振	406	14.85MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
406C35B19M44000	CTS晶振	406	19.44MHz	±50ppm	±30ppm	13pF	40 Ohm	-20°C ~ 70°C
406C35B19M44000	CTS晶振	406	19.44MHz	±50ppm	±30ppm	13pF	40 Ohm	-20°C ~ 70°C
406C35B19M44000	CTS晶振	406	19.44MHz	±50ppm	±30ppm	13pF	40 Ohm	-20°C ~ 70°C
406C35B20M48000	CTS晶振	406	20.48MHz	±50ppm	±30ppm	13pF	40 Ohm	-20°C ~ 70°C
406C35B22M00000	CTS晶振	406	22MHz	±50ppm	±30ppm	13pF	40 Ohm	-20°C ~ 70°C
406C35B32M76800	CTS晶振	406	32.768MHz	±50ppm	±30ppm	13pF	40 Ohm	-20°C ~ 70°C
406C35B32M76800	CTS晶振	406	32.768MHz	±50ppm	±30ppm	13pF	40 Ohm	-20°C ~ 70°C
406C35B32M76800	CTS晶振	406	32.768MHz	±50ppm	±30ppm	13pF	40 Ohm	-20°C ~ 70°C
406C35B35M32800	CTS晶振	406	35.328MHz	±50ppm	±30ppm	13pF	40 Ohm	-20°C ~ 70°C
406C35B35M32800	CTS晶振	406	35.328MHz	±50ppm	±30ppm	13pF	40 Ohm	-20°C ~ 70°C
406C35B35M32800	CTS晶振	406	35.328MHz	±50ppm	±30ppm	13pF	40 Ohm	-20°C ~ 70°C
