思佳訊晶振,3225mm晶振,549ACAA002302CCGR,6G無線網絡晶振

頻率：100MHZ

尺寸：3.2mm x 2.5mm

思佳訊晶振,3225mm晶振,549ACAA002302CCGR,6G無線網絡晶振,思佳訊晶振,Si549有源晶振,549ACAA002302CCGR晶振,貼片石英晶振,LV-PECL Crystal,3225mm石英振蕩器,頻率100MHz,電壓3.3V,工作溫度-40~85°C,頻率穩定性7ppm,高精度晶振,高品質晶振,6G無線網絡晶振,相干光學晶振,物聯網應用晶振,網絡終端晶振.




訂購熱線：0755-27837162
QQ咨詢 點擊這里給我發消息

ConnorWinfield-1思佳訊晶振,3225mm晶振,549ACAA002302CCGR,6G無線網絡晶振,思佳訊晶振,Si549有源晶振,549ACAA002302CCGR晶振,貼片石英晶振,LV-PECL Crystal,3225mm石英振蕩器,頻率100MHz,電壓3.3V,工作溫度-40~85°C,頻率穩定性7ppm,高精度晶振,高品質晶振,6G無線網絡晶振,相干光學晶振,物聯網應用晶振,網絡終端晶振.

思佳訊晶振,3225mm晶振,549ACAA002302CCGR,6G無線網絡晶振特點：

•I2C可編程到任何頻率從0.2到1500 MHz，分辨率< 1 ppb

•超低抖動:95 fs類型RMS (12 kHz - 20 MHz)

•配置多達4引腳可選擇的啟動頻率

•I2C接口支持100kbps、400kbps和1Mbps(快速模式+)

•出色的PSNR和電源抗噪性:-80 dBc類型

•3.3 V, 2.5 V和1.8 V VDD供電操作從相同的零件號

•LVPECL, LVDS, CML, HCSL, CMOS和Dual CMOS輸出選項

•2.5x3.2, 3.2x5, 5x7 mm包裝選項

•樣品交付周期為1-2周

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

思佳訊晶振,3225mm晶振,549ACAA002302CCGR,6G無線網絡晶振參數表

項目 符號 規格說明 條件
額定頻率 f_nom 100MHz 請聯系我們以便獲取其它可用頻率的相關信息
電源電壓 Vcc 3.3V
儲存溫度 T_stg -55℃~+125℃ 裸存
工作溫度 T_use -40℃~ +85℃
頻率穩定性 f_tol ±7 ppm +25℃,超出標準的規格說明請聯系我們以便獲取相關信息
電源電流 IDD 153mA Max
LVPECL
對稱性（占空比） SYM 45%~55% 在輸出交叉點
輸出電壓 VOC 1.275V Max
LVPECL
VO 0.9Vpp Max
輸入電壓 VIH 70%VDD Min

VIL 30%VDD Max
上升下降時間 tr/tf 350ps Max
LVPECL
起始時間 t str 3ms Max
相位抖動 tpj 150fs Max
100 MHz ≤ FCLK < 200 MHz

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

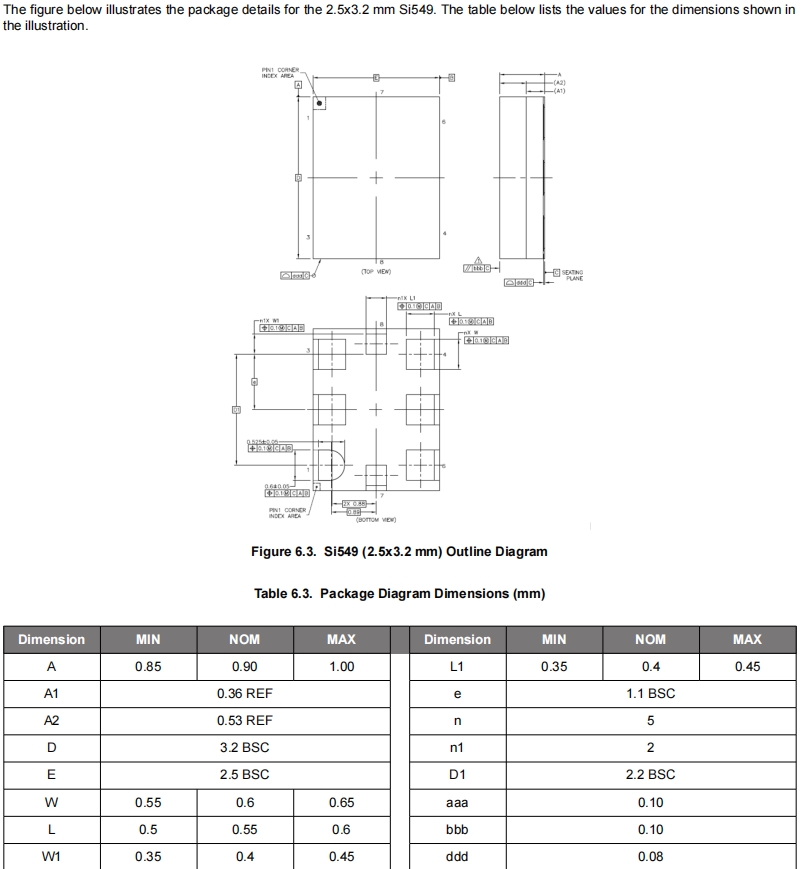

思佳訊晶振,3225mm晶振,549ACAA002302CCGR,6G無線網絡晶振尺寸圖

si549-3225

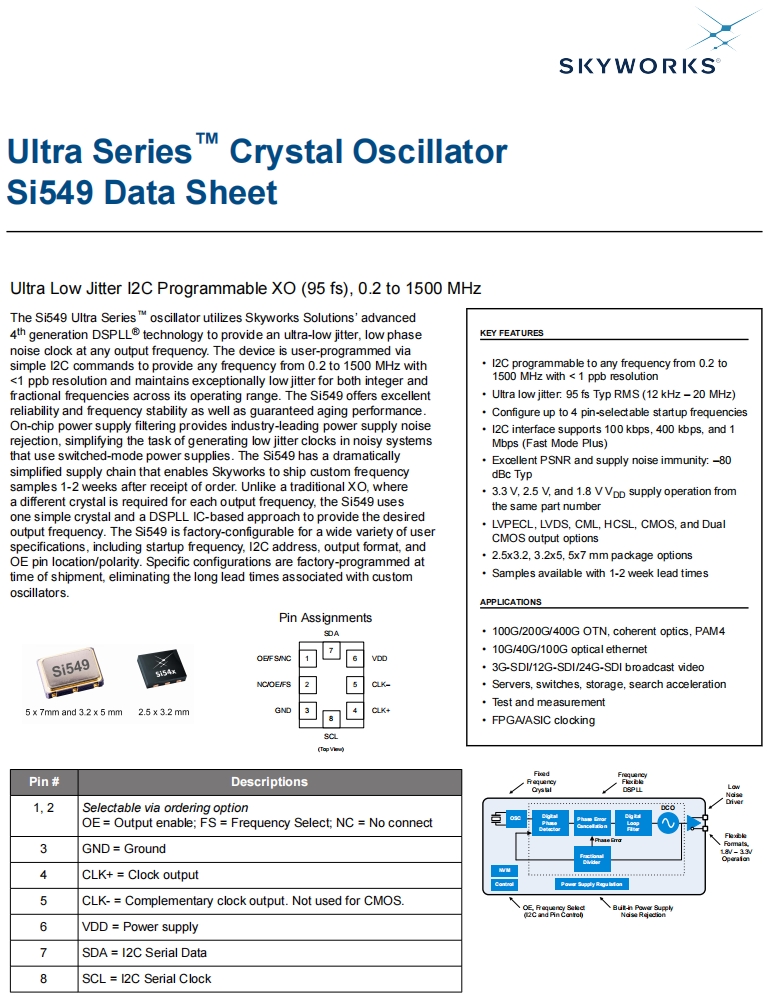

si549

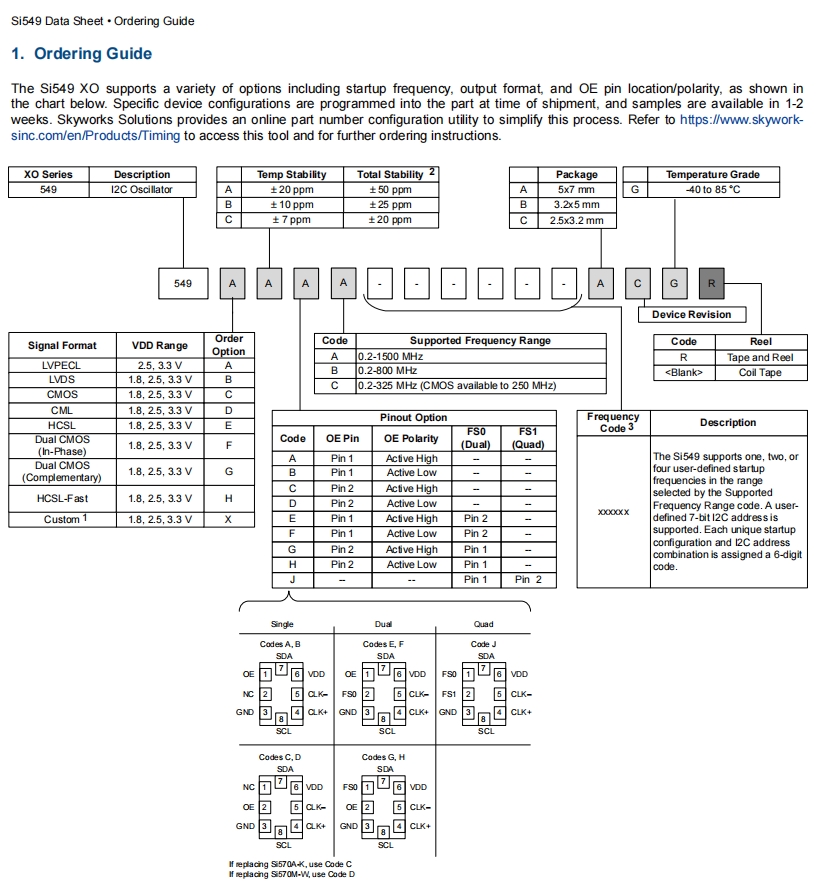

si549-1

原廠編碼 品牌 型號 頻率 輸出 電壓 頻率穩定性 工作溫度
549BAAB000212BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACB000148ACG Skyworks Solutions Inc. Ultra™ Si549 24.576 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549AAAC000118ACG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCCB002128ACG Skyworks Solutions Inc. Ultra™ Si549 200 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CCCC000141ACG Skyworks Solutions Inc. Ultra™ Si549 56.32 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BABA000368ACG Skyworks Solutions Inc. Ultra™ Si549 122.88 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549AAAA000426ACG Skyworks Solutions Inc. Ultra™ Si549 145 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAB001589ACG Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BBAA001968ACG Skyworks Solutions Inc. Ultra™ Si549 1.2 GHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549BAAC001741ACG Skyworks Solutions Inc. Ultra™ Si549 70.656 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAA000112ACG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549AAAA000112ACG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAB000118ACG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CCAC000141ACG Skyworks Solutions Inc. Ultra™ Si549 56.32 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CAAC000112ACG Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAA001968ACG Skyworks Solutions Inc. Ultra™ Si549 1.2 GHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACA001937ACG Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACA000112ACG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCCB002127ACG Skyworks Solutions Inc. Ultra™ Si549 200 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCBA000122ACG Skyworks Solutions Inc. Ultra™ Si549 1 GHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CAAA000112ACG Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACB000112ACG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAB000112ACG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCCB002129ACG Skyworks Solutions Inc. Ultra™ Si549 199 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCCB000126ACG Skyworks Solutions Inc. Ultra™ Si549 200 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CBAC000508ACG Skyworks Solutions Inc. Ultra™ Si549 25 MHz CMOS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549DACB001619ACG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz CML 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ACAA000112ACG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549CCAC000118ACG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549GCDC002122ACG Skyworks Solutions Inc. Ultra™ Si549 71.135 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549AAAA001372ACG Skyworks Solutions Inc. Ultra™ Si549 7 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAA000133ACG Skyworks Solutions Inc. Ultra™ Si549 500 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCCB001125ACG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549ACAA000111ACG Skyworks Solutions Inc. Ultra™ Si549 25 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549DAAB001963BCGR Skyworks Solutions Inc. Ultra™ Si549 304.125 MHz CML 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCCB002127ACGR Skyworks Solutions Inc. Ultra™ Si549 200 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CAAC000385BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549AAAA000426ACGR Skyworks Solutions Inc. Ultra™ Si549 145 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC000385BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CBAC000508ACGR Skyworks Solutions Inc. Ultra™ Si549 25 MHz CMOS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549DAAA000485BCG Skyworks Solutions Inc. Ultra™ Si549 625 MHz CML 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCCB002128ACGR Skyworks Solutions Inc. Ultra™ Si549 200 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAA000798BCG Skyworks Solutions Inc. Ultra™ Si549 1 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000111BCG Skyworks Solutions Inc. Ultra™ Si549 25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549GAAA000956BCG Skyworks Solutions Inc. Ultra™ Si549 6.78 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000115BCG Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ABAB000115BCGR Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVPECL 2.5V ~ 3.3V ±10ppm -40°C ~ 85°C
549BCAA000131BCGR Skyworks Solutions Inc. Ultra™ Si549 120 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CCAC002099BCG Skyworks Solutions Inc. Ultra™ Si549 1 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549AAAA000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC000306BCGR Skyworks Solutions Inc. Ultra™ Si549 22.5792 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BBAA000368BCGR Skyworks Solutions Inc. Ultra™ Si549 122.88 MHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549BAAB000544BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ABAA000131BCG Skyworks Solutions Inc. Ultra™ Si549 120 MHz LVPECL 2.5V ~ 3.3V ±10ppm -40°C ~ 85°C
549BCAC000177BCG Skyworks Solutions Inc. Ultra™ Si549 297 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAB000118ACGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAB001623BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACA000420BCGR Skyworks Solutions Inc. Ultra™ Si549 644.53125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACA001937ACGR Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAC000118BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CABC000121BCGR Skyworks Solutions Inc. Ultra™ Si549 100 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAA000112ACGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BABC002152BCGR Skyworks Solutions Inc. Ultra™ Si549 21.3333333 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC000306BCG Skyworks Solutions Inc. Ultra™ Si549 22.5792 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000115BCGR Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCCB002129ACGR Skyworks Solutions Inc. Ultra™ Si549 199 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CAAA000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549GCDC002122ACGR Skyworks Solutions Inc. Ultra™ Si549 71.135 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549DACB001619ACGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz CML 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549AAAA000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549ABAA000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±10ppm -40°C ~ 85°C
549BACB000148ACGR Skyworks Solutions Inc. Ultra™ Si549 24.576 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549GCAC000111BCG Skyworks Solutions Inc. Ultra™ Si549 25 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CBAC000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549BACA000281BCG Skyworks Solutions Inc. Ultra™ Si549 840 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000111BCGR Skyworks Solutions Inc. Ultra™ Si549 25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549GAAA000956BCGR Skyworks Solutions Inc. Ultra™ Si549 6.78 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549AAAA001372ACGR Skyworks Solutions Inc. Ultra™ Si549 7 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAA000133ACGR Skyworks Solutions Inc. Ultra™ Si549 500 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BABC002152BCG Skyworks Solutions Inc. Ultra™ Si549 21.3333333 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC001444BCG Skyworks Solutions Inc. Ultra™ Si549 38.4 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BBAA000313BCGR Skyworks Solutions Inc. Ultra™ Si549 300 MHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549AAAA000118BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAB000212BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CCAC000141ACGR Skyworks Solutions Inc. Ultra™ Si549 56.32 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCAA000131BCG Skyworks Solutions Inc. Ultra™ Si549 120 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAA000115BCGR Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549AAAA000118BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549ACAA000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAB001269BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAC000177BCGR Skyworks Solutions Inc. Ultra™ Si549 297 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAA001968ACGR Skyworks Solutions Inc. Ultra™ Si549 1.2 GHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC000148BCGR Skyworks Solutions Inc. Ultra™ Si549 24.576 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC001741ACGR Skyworks Solutions Inc. Ultra™ Si549 70.656 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ACAB000118BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549ACAA000112ACGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCAA000111BCG Skyworks Solutions Inc. Ultra™ Si549 25 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCAA000121BCG Skyworks Solutions Inc. Ultra™ Si549 100 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCCB001125ACGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BACC000520BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000544BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ACAA000118BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549AADA000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549CCAC000121BCG Skyworks Solutions Inc. Ultra™ Si549 100 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCAC000118BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CBAC000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549BACA000112ACGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAA000121BCGR Skyworks Solutions Inc. Ultra™ Si549 100 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000121BCGR Skyworks Solutions Inc. Ultra™ Si549 100 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000121BCG Skyworks Solutions Inc. Ultra™ Si549 100 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAB000112ACGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BBAA000313BCG Skyworks Solutions Inc. Ultra™ Si549 300 MHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549CAAC000112ACGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000118BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC001840BCGR Skyworks Solutions Inc. Ultra™ Si549 33.33 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BBAB000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549CAAA000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ACAA000111ACGR Skyworks Solutions Inc. Ultra™ Si549 25 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAC000544BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC001840BCG Skyworks Solutions Inc. Ultra™ Si549 33.33 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAA000798BCGR Skyworks Solutions Inc. Ultra™ Si549 1 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BBAA001968ACGR Skyworks Solutions Inc. Ultra™ Si549 1.2 GHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549BAAB000115BCG Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCBA000122ACGR Skyworks Solutions Inc. Ultra™ Si549 1 GHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549DABB001895BCG Skyworks Solutions Inc. Ultra™ Si549 100 MHz CML 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549AAAC000118ACGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549ABAA000131BCGR Skyworks Solutions Inc. Ultra™ Si549 120 MHz LVPECL 2.5V ~ 3.3V ±10ppm -40°C ~ 85°C
549CCAC000121BCGR Skyworks Solutions Inc. Ultra™ Si549 100 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549ACAA000118BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549DCAC000121BCG Skyworks Solutions Inc. Ultra™ Si549 100 MHz CML 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BACA000420BCG Skyworks Solutions Inc. Ultra™ Si549 644.53125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC000148BCG Skyworks Solutions Inc. Ultra™ Si549 24.576 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ACAA000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549CABC000121BCG Skyworks Solutions Inc. Ultra™ Si549 100 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000118BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549DAAB001963BCG Skyworks Solutions Inc. Ultra™ Si549 304.125 MHz CML 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACB001812BCGR Skyworks Solutions Inc. Ultra™ Si549 148.5 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BBAB000115BCGR Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549BAAA000121BCG Skyworks Solutions Inc. Ultra™ Si549 100 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549DABB001895BCGR Skyworks Solutions Inc. Ultra™ Si549 100 MHz CML 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAB001589ACGR Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549DCAC000121BCGR Skyworks Solutions Inc. Ultra™ Si549 100 MHz CML 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BACA000281BCGR Skyworks Solutions Inc. Ultra™ Si549 840 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACB001812BCG Skyworks Solutions Inc. Ultra™ Si549 148.5 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CCAC000885BCGR Skyworks Solutions Inc. Ultra™ Si549 32.768 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BBAA000368BCG Skyworks Solutions Inc. Ultra™ Si549 122.88 MHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549ACAC002076BCGR Skyworks Solutions Inc. Ultra™ Si549 455 kHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549ACAC002076BCG Skyworks Solutions Inc. Ultra™ Si549 455 kHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAA000112ACGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CCAC000885BCG Skyworks Solutions Inc. Ultra™ Si549 32.768 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549GCAC000111BCGR Skyworks Solutions Inc. Ultra™ Si549 25 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAB000115BCGR Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CAAC001444BCGR Skyworks Solutions Inc. Ultra™ Si549 38.4 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAA000111BCGR Skyworks Solutions Inc. Ultra™ Si549 25 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCCB000798BCG Skyworks Solutions Inc. Ultra™ Si549 1 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CAAC000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549GCCC000798BCGR Skyworks Solutions Inc. Ultra™ Si549 1 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCCB000798BCGR Skyworks Solutions Inc. Ultra™ Si549 1 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BBAB000115BCG Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549AAAA000112ACGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549AADA000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±20ppm -40°C ~ 85°C
549BABA000368ACGR Skyworks Solutions Inc. Ultra™ Si549 122.88 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAB001623BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACC000520BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549CCAC000118ACGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CAAC000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz CMOS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAA000313BCG Skyworks Solutions Inc. Ultra™ Si549 300 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCAA000313BCGR Skyworks Solutions Inc. Ultra™ Si549 300 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549GCCC000798BCG Skyworks Solutions Inc. Ultra™ Si549 1 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549CCAC002099BCGR Skyworks Solutions Inc. Ultra™ Si549 1 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549ACAB000118BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVPECL 2.5V ~ 3.3V ±7ppm -40°C ~ 85°C
549ABAC001975BCGR Skyworks Solutions Inc. Ultra™ Si549 40.8 MHz LVPECL 2.5V ~ 3.3V ±10ppm -40°C ~ 85°C
549BCCA000798BCGR Skyworks Solutions Inc. Ultra™ Si549 1 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BCCA000798BCG Skyworks Solutions Inc. Ultra™ Si549 1 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BBAB000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±10ppm -40°C ~ 85°C
549CCCC000141ACGR Skyworks Solutions Inc. Ultra™ Si549 56.32 MHz CMOS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BAAB000544BCGR Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAB001269BCG Skyworks Solutions Inc. Ultra™ Si549 156.25 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ABAA000112BCG Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVPECL 2.5V ~ 3.3V ±10ppm -40°C ~ 85°C
549ABAC001975BCG Skyworks Solutions Inc. Ultra™ Si549 40.8 MHz LVPECL 2.5V ~ 3.3V ±10ppm -40°C ~ 85°C
549BAAA000115BCG Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCAA000121BCGR Skyworks Solutions Inc. Ultra™ Si549 100 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549BACA001924BCGR Skyworks Solutions Inc. Ultra™ Si549 285 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BAAC000112BCGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BACA001924BCG Skyworks Solutions Inc. Ultra™ Si549 285 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549BCCB000126ACGR Skyworks Solutions Inc. Ultra™ Si549 200 MHz LVDS 1.8V ~ 3.3V ±7ppm -40°C ~ 85°C
549DAAA000485BCGR Skyworks Solutions Inc. Ultra™ Si549 625 MHz CML 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C
549ABAB000115BCG Skyworks Solutions Inc. Ultra™ Si549 125 MHz LVPECL 2.5V ~ 3.3V ±10ppm -40°C ~ 85°C
549BACB000112ACGR Skyworks Solutions Inc. Ultra™ Si549 10 MHz LVDS 1.8V ~ 3.3V ±20ppm -40°C ~ 85°C

JLX-6

RB-6

wxewm

公司名：深圳市金洛鑫電子有限公司

聯系人：茹紅青

手機：13510569637

電話：0755-27837162

QQ號：657116624

微信公眾號：CITIZENCRYSTAL

搜狐公眾號：晶振石英晶振NDK晶振

郵箱：jinluodz@163.com

地址：深圳市寶安區41區甲岸路19號

網址：http://www.908tw.com/

相關的產品 / Related Products

510BBA125M000AAGR,Skyworks有源晶振,LVDS差分輸出晶振
510BBA125M000AAGR,Skyworks有源晶振,LVDS差分輸出晶振

510BBA125M000AAGR,Skyworks有源晶振,LVDS差分輸出晶振,采用7.0×5.0mm標準貼片封裝,六腳無引腳設計,整體高度僅1.8mm,適配高密度PCB布局需求.該晶振固定輸出125MHz精準時鐘信號,搭載LVDS低壓差分輸出接口,遵循TIA/EIA-644標準,以3.5mA恒流源驅動,差分電壓擺幅典型值350mV,共模電壓1.2V,具備極強的抗共模干擾能力.


T-53652FS-LF-16.000MHz,KVG歐美進口晶振,T-53000低功耗晶振
T-53652FS-LF-16.000MHz,KVG歐美進口晶振,T-53000低功耗晶振

T-53652FS-LF-16.000MHz,KVG歐美進口晶振,T-53000低功耗晶振T-53652FS-LF-16.000MHz貼片晶振,彰顯KVG歐美進口的卓越品質,16.000MHz的精準頻率輸出經過多重嚴格測試與校準,能完美適配基站,交換機等電信核心設備,在數據傳輸過程中確保信號的穩定與準確,為通信網絡的高效運行提供堅實保障,T-53000低功耗晶振,具備輕量化且能耗低的顯著特點,其低功耗設計能有效降低物聯網設備的能量消耗,助力設備實現長期穩定運行,同時減少了設備維護和電池更換的頻率,大幅降低了維護成本

NKG車載多媒體晶振,S2SM進口晶振,S2SM18.0000F16M23-EXT超小型晶振
NKG車載多媒體晶振,S2SM進口晶振,S2SM18.0000F16M23-EXT超小型晶振

NKG車載多媒體晶振,S2SM進口晶振,S2SM18.0000F16M23-EXT超小型晶振,NKG晶振,S2SM晶振,石英晶振,無源晶振,S2SM18.0000F16M23-EXT晶振,四腳貼片晶振,石英晶體諧振器,2016mm晶振,SMD晶體,高精度晶振,輕薄小晶振,無鉛環保晶振,6G無線模塊晶振,筆記本電腦晶振,智能手機晶振,移動應用晶振.特點：微型包裝尺寸2.0 x 1.6 x 0.5mm與4個墊,優異的耐熱性和抗震性,真空密封，可靠性高，老化率低,符合AEC-Q200標準的汽車級產品可供選擇

JLX-PD

金洛鑫產品系列

PRODUCT LINE

石英晶振
QuartzCrystal

貼片晶振
SMDcrystal

諧振器濾波器
Resonator

溫補晶振
TCXOcrystal

32.768K
32768Kcrystal

霧化片
AtomizationPiece

智能穿戴

車載安防

通訊網絡

智能玩具

金洛鑫聯系方式
咨詢熱線：0755-27837162

手機：13510569637

QQ：QQ

郵箱：jinluodz@163.com

地址：廣東省深圳市寶安區寶安41區甲岸路

亚洲精品美女久久久久-激情综合网日韩av-日韩中文字幕中出av电影在线-99久久99热精品免费观看 | 99久久国产视频精精品蜜臀-久久久亚洲综合网站-久久久久久亚洲精品不卡-久久久久国产精品人妻a | 国产成人精品在线免费观看-久久十区精品视频-中文字幕+乱码+中文乱码91-97超碰在线在线 | 亚洲av电影在线播放-国产麻豆精品视频免费-激情婷婷人妻视频-欧美日韩久久久一区二区 | 日韩中文字幕天堂网-国产精品高潮粉嫩av-超碰牛牛在线观看-久久人妻中国字幕av | 在线免费观看日韩av网址-国产成人 精品视频-久久久夜快乐色精品亚洲av不卡-国产激情久久久人妻 | 国产精品久久久久久爽爽爽床戏-亚洲视频偷拍视频区-国产一级精品视频骚-日韩三级在线免费网站 | 欧美日韩中出在线播放-精品中文字幕久久久人妻-国产精品久久久久久久69-久久久久久人妻精品一区二百内谢 | 成人免费黄色大片v266-国产精品99久久久久久有的能-久久久久久久久久精品一区二区三区-日韩精品在线观看成人 | 日韩可以免费观看的黄页网-亚洲精品久久第一页-国产精品麻豆一只-大香蕉久久久久久久久久久 | 五月婷婷丁香婷婷爱爱-婷婷激情久久成人网-天天操天天草天天干天天日-欧美日韩一区二区一卡二卡 久久久,一区,二区-狠狠人妻久久久久久久综合-成人精品一区二区三区电影免费-欧美精品久久久在线 | 日韩人妻中文字幕合集-超碰98大香蕉-成人av精品免费观看网址-国产91欧美在线 | 日韩欧美国产精品免费-国产在线手机版在线-久久精品国产99精品国产-99精品热在线在线观看视频 | 五月婷婷六月色丁香-国产精品久久老阿姨-超碰97免费高清在线观看-麻豆精彩视频在线播放 | 国产免费一区二区三区四区六区在线-91精品国产综合久久久久久导航-欧美不卡免费一区二区-人人妻天天操夜夜爽 | 成人日韩电影在线-日韩av在线播放链接-日韩午夜精品在线视频-久久人人妻人人爽人人 | 91人妻人人澡人人爽人人精品6-国产精品综合久久久蜜臀-欧美91精品久久久久影视网-日韩av在线免费直播 | 91成人这里只有精品-91久久精品视频在线-91久久精品一区二区三区-欧美日韩国产在线观看吧 | 欧美精品丝袜久久久-91黄瓜视频污污污-亚洲欧美中文日韩一二三区-国产精品 国产精品 | 麻豆秘一区二区三区-日韩精彩视频在线观看一区-99re久久6热免费精品视频-成人午夜寂寞少妇 | 日韩国产激情www-9999一区二区在线观看-丁香情五月激情-亚洲欧美日韩另类在线观看 | 激情人妻,一区二区三区-欧美日韩爱爱网-中文字幕在线乱码免费-97超碰在线系列 | 国产av传媒中文字幕-国产一区二区三区官网-精品久久久久久中文字幕无碍-国产91精品久久久51www | 欧美激情 自拍 偷拍-丁香婷婷中文字幕在线-欧美亚洲国产另类在线-91老熟女老女人国产老太pp | 超碰捏巨乳少妇av-日韩av小说自拍1区-久久精品99在线观看-亚洲av中文精品字幕aa | 中文字幕日韩精品人妻-久久精品视频一区二区-国产精品福利九九热-粉嫩99精品99久久久久久火 | 国产又大又黄又色的视频-日本在线中文字幕在线-国产亚洲精品嫩草-久久传媒av性色av人人爽网站 | 久久人妻中文字幕系列-91久久人妻一区二区-亚洲av日韩久久久久久-欧美日韩一级片免费看 | 久久综合激情的五月天-色综合91av在线-久久av每日更新草草-国产又粗又长又又黄的 | 国产精品18久久久久久麻辣-91精品国产综合久久久久久久久-sm风月av午夜一区二区-久久播在线视频 超碰捏巨乳少妇av-日韩av小说自拍1区-久久精品99在线观看-亚洲av中文精品字幕aa | 人妻av 自拍偷拍-麻豆影视三级在线观看视频-亚洲天堂中文字幕麻豆-av激情影院久久 | 91人妻精品国产麻豆国产在线-国产精品久久久久久久久久综合-一本色道久久综合亚州精品-激情综合网激情综合 | 亚洲va国产va天堂va久久-17c久久精品国产亚洲-国产日本久久久久久久久婷婷-少妇精品久久久久久久久久 | 99人妻碰碰碰久久久久-欧美日韩精品久久久久免费看-中文字幕av一区二区三区人妻少妇在线-国产成人91在线播放 | 十八禁av一区二区-国产二区视频在线观看-国产免费一区二区三区av-国产精品久久综合色 | 日韩一区二区三区四区五区-国产精品久久久久久精品毛片-天天操天天干天天玩天天射-日韩av激情一区二区 | 岛国成人av电影在线-99久热re在线精品视频99r-日韩视频播放在线-人妻偷乱视频一区二区 | 久久热这里只有精品3-久久色之综合久久色-中文字幕一区 二区 三区 四区-色悠久久久综合网伊人 | 日本韩国亚洲欧美一区二区-亚洲视频中文字幕91-精品国产99国产精品亚洲-99青青草原在线视频 | xxxx在线观看免费视频-久久av蜜桃一区二区-中文字幕乱码乱码能人妻熟女-日韩三级视频在线播放 | 亚洲天堂万部av网-中文字幕人妻少妇乳区-日韩欧美日韩国产一区二区三区-91亚洲狠狠婷婷综合久久久 |
