12.88168晶振,KX-KT型號晶振,49SMD晶振,Geyer晶振
頻率：4.91520M
尺寸：11.4*4.5*4.2mm
12.88168晶振,KX-KT型號晶振,49SMD晶振,Geyer晶振
依托Geyer六十余年石英晶體制造經驗,該晶振在-40℃~+85℃工業寬溫范圍內頻率穩定性達±30ppm,高溫環境下可擴展至+125℃仍保持性能穩定,遠超普通商用晶振的標準.采用密封金屬封裝與石英晶體諧振技術,配合低至±5ppm/年的老化率,能抵御10~500Hz振動與196m/s²沖擊,有效避免工業現場或車載環境中的信號漂移與數據傳輸誤差.通過優化晶體切割工藝與電極設計,該晶振激勵功率低至100μW典型值,靜態電流較同類產品降低15%,顯著延長物聯網終端,智能電表等電池供電設備的續航周期.歡迎來電咨詢0755-27837162
12.88168晶振,KX-KT型號晶振,49SMD晶振,Geyer晶振
|
原廠型號 Originalmodel： |
12.88168 |
品牌brand： |
Geyer |
|
型號名稱 Modelname： |
KX-KT微處理器晶體 |

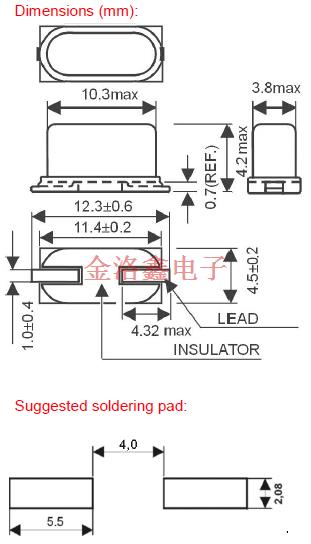

Size/Dimension尺寸 |
11.4*4.5*4.2mm |
|
Type系列： |
MHz Crystal |
高度PackageHeight： |
4.2mm |
|
頻率 frequency： |
|
溫度OperatingTemperature |
-40+85℃ |
|
Frequency Stability頻率穩定度 |
- |
腳位Termination： |
2pad |
|
frequencytolerance頻率容差 |
±30ppm |
封裝類型PackageType： |
|
|
Loadcapacitance 負載電容 |
16PF |
最小包裝數MPQ： |
|
12.88168晶振,KX-KT型號晶振,49SMD晶振,Geyer晶振
12.88168晶振,KX-KT型號晶振,49SMD晶振,Geyer晶振
|
12.87000 |
KX-327V |
1.25 | 1.05 | 0.5 mm |
32.768 kHz |
12.5 pF |
± 20 ppm |
|
12.87001 |
KX-327V |
1.25 | 1.05 | 0.5 mm |
32.768 kHz |
9 pF |
± 20 ppm |
|
12.87002 |
KX-327V |
1.25 | 1.05 | 0.5 mm |
32.768 kHz |
7 pF |
± 20 ppm |
|
12.87034 |
KX-327R |
2.0 | 1.2 | 0.6 mm |
32.768 kHz |
4 pF |
± 20 ppm |
|
12.87080 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
12.5 pF |
± 10 ppm |
|
12.87081 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
6 pF |
± 20 ppm |
|
12.87083 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
6 pF |
± 20 ppm |
|
12.87086 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
6 pF |
± 10 ppm |
|
12.87090 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
7 pF |
± 10 ppm |
|
12.87095 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
9 pF |
± 10 ppm |
|
12.87105 |
KX-327S |
8.2 | 3.8 | 2.5 mm |
32.768 kHz |
6 pF |
± 10 ppm |
|
12.87107 |
KX-327S |
8.2 | 3.8 | 2.5 mm |
32.768 kHz |
12.5 pF |
± 20 ppm |
|
12.87109 |
KX-327S |
8.2 | 3.8 | 2.5 mm |
32.768 kHz |
12 pF |
± 15 ppm |
|
12.87110 |
KX-327S |
8.2 | 3.8 | 2.5 mm |
32.768 kHz |
12.5 pF |
± 30 ppm |
|
12.87111 |
KX-327S |
8.2 | 3.8 | 2.5 mm |
32.768 kHz |
12.5 pF |
± 30 ppm |
|
12.87112 |
KX-327S |
8.2 | 3.8 | 2.5 mm |
32.768 kHz |
12.5 pF |
± 20 ppm |
|
12.87113 |
KX-327S |
8.2 | 3.8 | 2.5 mm |
32.768 kHz |
12.5 pF |
± 5.0 ppm |
|
12.87114 |
KX-327S |
8.2 | 3.8 | 2.5 mm |
32.768 kHz |
12.5 pF |
± 20 ppm |
|
12.87115 |
KX-327S |
8.2 | 3.8 | 2.5 mm |
32.768 kHz |
12.5 pF |
± 10 ppm |
|
12.87116 |
KX-327S |
8.2 | 3.8 | 2.5 mm |
32.768 kHz |
12.5 pF |
± 10 ppm |
|
12.87118 |
KX-327S |
8.2 | 3.8 | 2.5 mm |
32.768 kHz |
6 pF |
± 20 ppm |
|
12.87119 |
KX-327S |
8.2 | 3.8 | 2.5 mm |
32.768 kHz |
6 pF |
± 20 ppm |
|
12.87120 |
KX-327XS |
4.95 | 1.82 | 0.96 mm |
32.768 kHz |
12.5 pF |
± 30 ppm |
|
12.87121 |
KX-327XS |
4.95 | 1.82 | 0.96 mm |
32.768 kHz |
12.5 pF |
± 30 ppm |
|
12.87123 |
KX-327XS |
4.95 | 1.82 | 0.96 mm |
32.768 kHz |
6 pF |
± 30 ppm |
|
12.87126 |
KX-327XS |
4.95 | 1.82 | 0.96 mm |
32.768 kHz |
12.5 pF |
± 20 ppm |
|
12.87127 |
KX-327XS |
4.95 | 1.82 | 0.96 mm |
32.768 kHz |
6 pF |
± 30 ppm |
|
12.87128 |
KX-327XS |
4.95 | 1.82 | 0.96 mm |
32.768 kHz |
6 pF |
± 20 ppm |
|
12.87129 |
KX-327XS |
4.95 | 1.82 | 0.96 mm |
32.768 kHz |
12.5 pF |
± 20 ppm |
|
12.87130 |
KX-327L |
7.0 | 1.5 | 1.4 mm |
32.768 kHz |
12.5 pF |
± 20 ppm |
|
12.87131 |
KX-327L |
7.0 | 1.5 | 1.4 mm |
32.768 kHz |
12.5 pF |
± 20 ppm |
|
12.87132 |
KX-327L |
7.0 | 1.5 | 1.4 mm |
32.768 kHz |
7 pF |
± 20 ppm |
|
12.87133 |
KX-327L |
7.0 | 1.5 | 1.4 mm |
32.768 kHz |
12.5 pF |
± 10 ppm |
|
12.87134 |
KX-327L |
7.0 | 1.5 | 1.4 mm |
32.768 kHz |
7 pF |
± 10 ppm |
|
12.87135 |
KX-327L |
7.0 | 1.5 | 1.4 mm |
32.768 kHz |
7 pF |
± 20 ppm |
|
12.87136 |
KX-327L |
7.0 | 1.5 | 1.4 mm |
32.768 kHz |
12.5 pF |
± 10 ppm |
|
12.87137 |
KX-327L |
7.0 | 1.5 | 1.4 mm |
32.768 kHz |
9 pF |
± 20 ppm |
|
12.87138 |
KX-327L |
7.0 | 1.5 | 1.4 mm |
32.768 kHz |
12.5 pF |
± 5.0 ppm |
|
12.87139 |
KX-327L |
7.0 | 1.5 | 1.4 mm |
32.768 kHz |
7 pF |
± 10 ppm |
|
12.87143 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
9 pF |
± 20 ppm |
|
12.87144 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
7 pF |
± 5.0 ppm |
|
12.87145 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
12.5 pF |
± 20 ppm |
|
12.87146 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
9 pF |
± 10 ppm |
|
12.87147 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
7 pF |
± 10 ppm |
|
12.87148 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
7 pF |
± 20 ppm |
|
12.87149 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
9 pF |
± 20 ppm |
|
12.87150 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
12.5 pF |
± 20 ppm |
|
12.87151 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
9 pF |
± 30 ppm |
|
12.87152 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
12.5 pF |
± 20 ppm |
|
12.87153 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
7 pF |
± 20 ppm |
|
12.87155 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
12.5 pF |
± 30 ppm |
|
12.87157 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
12.5 pF |
± 5.0 ppm |
|
12.87158 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
12.5 pF |
± 10 ppm |
|
12.87159 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
12.5 pF |
± 20 ppm |
|
12.87160 |
KX-327R |
2.0 | 1.2 | 0.6 mm |
32.768 kHz |
12.5 pF |
± 20 ppm |
|
12.87161 |
KX-327R |
2.0 | 1.2 | 0.6 mm |
32.768 kHz |
12.5 pF |
± 5.0 ppm |
|
12.87163 |
KX-327R |
2.0 | 1.2 | 0.6 mm |
32.768 kHz |
7 pF |
± 20 ppm |
|
12.87164 |
KX-327R |
2.0 | 1.2 | 0.6 mm |
32.768 kHz |
9 pF |
± 30 ppm |
|
12.87165 |
KX-327R |
2.0 | 1.2 | 0.6 mm |
32.768 kHz |
9 pF |
± 20 ppm |
|
12.87166 |
KX-327R |
2.0 | 1.2 | 0.6 mm |
32.768 kHz |
12.5 pF |
± 20 ppm |
