M1004S050 12.288000,麥特倫皮石英晶振,12.288MHz
頻率：12.288MHz
尺寸：11.05mm x 4.65mm
M1004S050 12.288000,麥特倫皮石英晶振,12.288MHz,M1004S050 12.288000晶振,麥特倫皮石英晶振,頻率12.288MHz,HC-49S插件晶振,負載15pf,工作溫度-40~85°C,抗沖擊晶振,環保晶振,家用電視機頂盒晶振,家電影音系統晶振,攝像頭晶振,物聯網晶振,數字電表晶振.
M1004S050 12.288000,麥特倫皮石英晶振,12.288MHz,M1004S050 12.288000晶振,麥特倫皮石英晶振,頻率12.288MHz,HC-49S插件晶振,負載15pf,工作溫度-40~85°C,抗沖擊晶振,環保晶振,家用電視機頂盒晶振,家電影音系統晶振,攝像頭晶振,物聯網晶振,數字電表晶振.
M1004S050 12.288000,麥特倫皮石英晶振,12.288MHz 特征
•電阻焊接(HC-49S)
•AT-Cut基本和泛音模式
•掃描石英可選
M1004S050 12.288000,麥特倫皮石英晶振,12.288MHz 參數
項目
數值
條件
頻率
12.288MHz
頻率公差
±30PPM
@ +25°C, see ordering information.
頻率穩定性
±50PPM
Over the operating temperature range
老化
±5ppm Max
First year @ +25ºC.
工作溫度
-40°C to +85°C
See part numbering guide for options.
保存溫度
-55°C to +125°C
并聯電容 (C0)
7pF Max
負載電容 (CL)
15pF
激勵功率
500μW Max
絕緣電阻
500MΩ
串聯電阻ESR
80Ω
AT-Cut Fundamental.

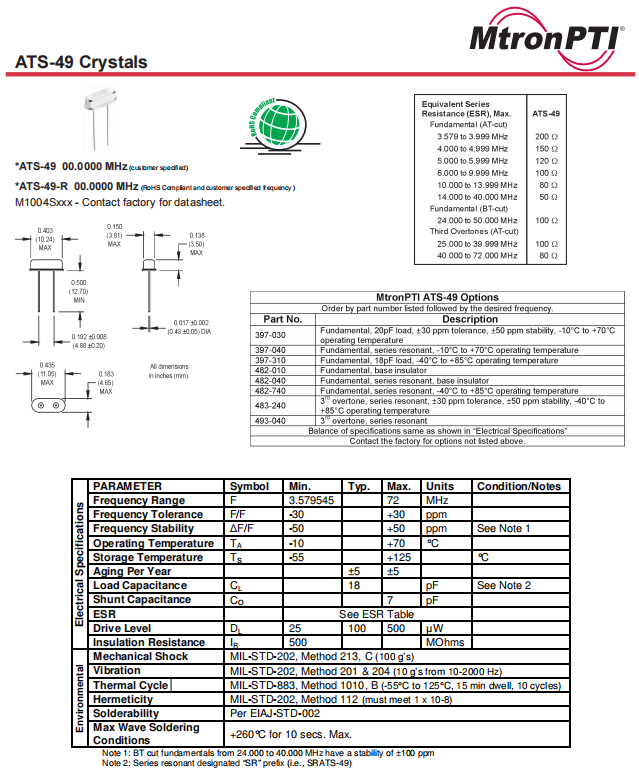

M1001S066 25.000000,ATSM-49-R 貼片晶振,25MHz 尺寸圖
| 原廠編碼 | 型號 | 頻率穩定度 | 頻率(MHz) | 頻率容差 | 老化 | 包裝 | 工作溫度 | 負載 |
| M1004S050 12.288000 | ATS-49 series | ±50 ppm | 12.288 | ±30 ppm | ±5 ppm | HC-49S | -40?C to +85?C | 15 pF |
| M1004S051 15.000000 | ATS-49 series | ±50 ppm | 15 | ±30 ppm | ±5 ppm | HC-49S | -40?C to +85?C | 15 pF |
| M1004S156 16.000000 | ATS-49 series | ±50 ppm | 16 | ±50 ppm | ±5 ppm | HC-49S | -40?C to +70?C | 5 pF |
| M1004S156 17.000000 | ATS-49 series | ±50 ppm | 17 | ±50 ppm | ±5 ppm | HC-49S | -40?C to +70?C | 5 pF |
| M1004S156 18.000000 | ATS-49 series | ±50 ppm | 18 | ±50 ppm | ±5 ppm | HC-49S | -40?C to +70?C | 5 pF |
| M1004S156 19.000000 | ATS-49 series | ±50 ppm | 19 | ±50 ppm | ±5 ppm | HC-49S | -40?C to +70?C | 5 pF |
| M1004S156 20.000000 | ATS-49 series | ±50 ppm | 20 | ±50 ppm | ±5 ppm | HC-49S | -40?C to +70?C | 5 pF |
| M1004S156 21.000000 | ATS-49 series | ±50 ppm | 21 | ±50 ppm | ±5 ppm | HC-49S | -40?C to +70?C | 5 pF |
| M1004S156 22.000000 | ATS-49 series | ±50 ppm | 22 | ±50 ppm | ±5 ppm | HC-49S | -40?C to +70?C | 5 pF |
| M1004S156 23.000000 | ATS-49 series | ±50 ppm | 23 | ±50 ppm | ±5 ppm | HC-49S | -40?C to +70?C | 5 pF |
| M1004S156 24.000000 | ATS-49 series | ±50 ppm | 24 | ±50 ppm | ±5 ppm | HC-49S | -40?C to +70?C | 5 pF |
| M1004S156 25.000000 | ATS-49 series | ±50 ppm | 25 | ±50 ppm | ±5 ppm | HC-49S | -40?C to +70?C | 5 pF |
| M1004S156 26.000000 | ATS-49 series | ±50 ppm | 26 | ±50 ppm | ±5 ppm | HC-49S | -40?C to +70?C | 5 pF |
| M1004S156 27.000000 | ATS-49 series | ±50 ppm | 27 | ±50 ppm | ±5 ppm | HC-49S | -40?C to +70?C | 5 pF |
| M1004S156 28.000000 | ATS-49 series | ±50 ppm | 28 | ±50 ppm | ±5 ppm | HC-49S | -40?C to +70?C | 5 pF |
| M1004S156 29.000000 | ATS-49 series | ±50 ppm | 29 | ±50 ppm | ±5 ppm | HC-49S | -40?C to +70?C | 5 pF |
| M1004S156 30.000000 | ATS-49 series | ±50 ppm | 30 | ±50 ppm | ±5 ppm | HC-49S | -40?C to +70?C | 5 pF |
| M1004S156 31.000000 | ATS-49 series | ±50 ppm | 31 | ±50 ppm | ±5 ppm | HC-49S | -40?C to +70?C | 5 pF |
| M1004S156 32.000000 | ATS-49 series | ±50 ppm | 32 | ±50 ppm | ±5 ppm | HC-49S | -40?C to +70?C | 5 pF |
| M1004S156 33.000000 | ATS-49 series | ±50 ppm | 33 | ±50 ppm | ±5 ppm | HC-49S | -40?C to +70?C | 5 pF |
| M1004S156 34.000000 | ATS-49 series | ±50 ppm | 34 | ±50 ppm | ±5 ppm | HC-49S | -40?C to +70?C | 5 pF |
| M1004S156 35.000000 | ATS-49 series | ±50 ppm | 35 | ±50 ppm | ±5 ppm | HC-49S | -40?C to +70?C | 5 pF |
| M1004S156 36.000000 | ATS-49 series | ±50 ppm | 36 | ±50 ppm | ±5 ppm | HC-49S | -40?C to +70?C | 5 pF |
