M1001S066 25.000000,ATSM-49-R 貼片晶振,25MHz
頻率：25MHz
尺寸：12.3mm x 4.85mm
M1001S066 25.000000,ATSM-49-R 貼片晶振,25MHz,MtronPTI進口晶振,M1001S066 25.000000,ATSM-49-R 貼片晶振,頻率25MHz,工作溫度-10~70°C,抗沖擊晶振,耐高溫晶振,航空電子與航空晶振,通信設備晶振,導航晶振,軍事無線電晶振,工業設備晶振,測量?jī)x器晶振.
M1001S066 25.000000,ATSM-49-R 貼片晶振,25MHz,MtronPTI進口晶振,M1001S066 25.000000,ATSM-49-R 貼片晶振,頻率25MHz,工作溫度-10~70°C,抗沖擊晶振,耐高溫晶振,航空電子與航空晶振,通信設備晶振,導航晶振,軍事無線電晶振,工業設備晶振,測量?jī)x器晶振.

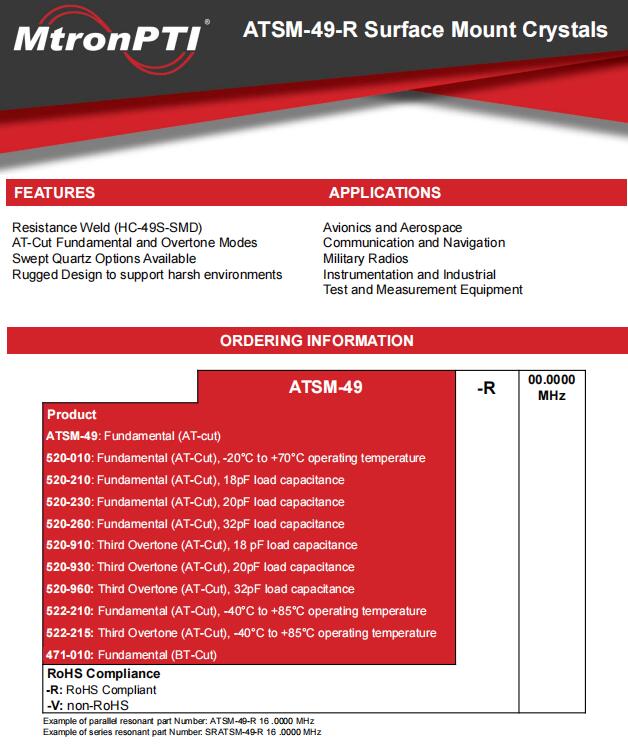

M1001S066 25.000000,ATSM-49-R 貼片晶振,25MHz 特征
•電阻焊接(HC-49S-SMD)
•AT-Cut基本和泛音模式
•掃描石英可選

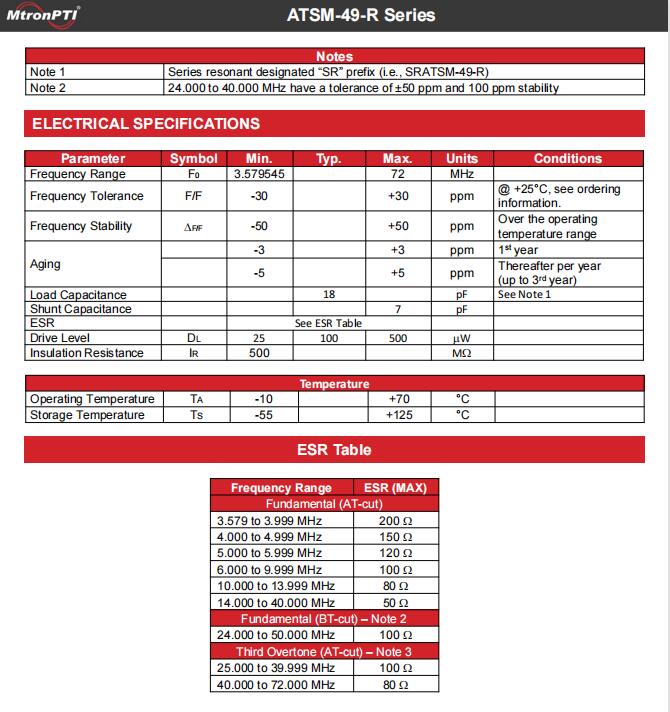

M1001S066 25.000000,ATSM-49-R 貼片晶振,25MHz 參數
項目
數值
條件
頻率
25MHz
頻率公差
±30PPM
@ +25°C, see ordering information.
頻率穩定性
±50PPM
Over the operating temperature range
老化
±3ppm Max
First year @ +25ºC.
工作溫度
-10°C to +70°C
See part numbering guide for options.
保存溫度
-55°C to +125°C
并聯電容 (C0)
7pF Max
負載電容 (CL)
12pF
激勵功率
500μW Max
絕緣電阻
500MΩ
串聯電阻ESR
50Ω
AT-Cut Fundamental.

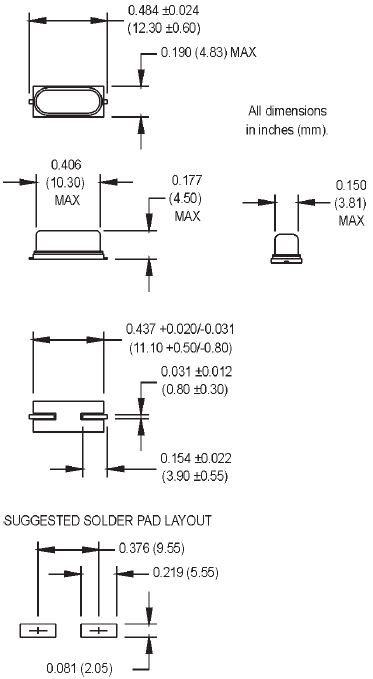

M1001S066 25.000000,ATSM-49-R 貼片晶振,25MHz 尺寸圖
| 原廠編碼 | 型號 | 頻率穩定度 | 頻率(MHz) | 頻率容差 | 老化 | 工作溫度 | 負載 |
| M1001S025-R 3.686400 | ATSM-49-R | ±50 ppm | 3.6864 | ±30 ppm | ±5 ppm | -40?C to +85?C | 18 pF |
| M1001S066 25.000000 | ATSM-49-R | ±50 ppm | 25 | ±30 ppm | ±5 ppm | -10?C to +70?C | 12 pF |
| M1001S096 24.000000 | ATSM-49-R | ±50 ppm | 24 | ±30 ppm | ±5 ppm | -40?C to +125?C | 12 pF |
| M1001S097 30.000000 | ATSM-49-R | ±50 ppm | 30 | ±30 ppm | ±5 ppm | -40?C to +125?C | 12 pF |
| M1001S175-R 4.000000 | ATSM-49-R | ±10 ppm | 4 | ±25 ppm | ±5 ppm | 0?C to +70?C | 20 pF |
| M1001S182 25.000000 | ATSM-49-R | ±50 ppm | 25 | ±30 ppm | ±5 ppm | -40?C to +85?C | 18 pF |
| M1001S214 8.000000 | ATSM-49-R | ±50 ppm | 8 | ±30 ppm | ±5 ppm | -40?C to +85?C | 18 pF |
| M1001S258 10.000000 | ATSM-49-R | ±50 ppm | 10 | ±50 ppm | ±5 ppm | -40?C to +125?C | 18 pF |
| M1001S286 26.000000 | ATSM-49-R | ±50 ppm | 26 | Varies | ±3 ppm | -20?C to +75?C | 3 pF |
| M1001S328 26.000000 | ATSM-49-R | ±15 ppm | 26 | ±10 ppm | ±3 ppm | -40?C to +85?C | 9 pF |
| M1001S445 50.000000 | ATSM-49-R | ±20 ppm | 50 | ±15 ppm | ±3 ppm | -40?C to +85?C | 10 pF |
| M1001S448 8.000000 | ATSM-49-R | ±50 ppm | 8 | ±50 ppm | ±5 ppm | -55?C to +105?C | 18 pF |
| M1001S483 4.194304 | ATSM-49-R | ±50 ppm | 4.1943 | ±30 ppm | ±5 ppm | -10?C to +70?C | 12 pF |
| M1001S554 25.000000 | ATSM-49-R | ±50 ppm | 25 | ±20 ppm | ±5 ppm | -20?C to +70?C | 18 pF |
| M1001S559 14.463660 | ATSM-49-R | ±30 ppm | 14.4637 | ±30 ppm | NS | -40?C to +105?C | 10 pF |
| M1001S599 24.576000 | ATSM-49-R | ±100 ppm | 24.576 | ±30 ppm | ±3 ppm | -55?C to +125?C | 8 pF |
| M1001S600 16.777216 | ATSM-49-R | ±50 ppm | 16.7772 | ±50 ppm | ±5 ppm | -40?C to +85?C | 15 pF |
| M1001S602 8.000000 | ATSM-49-R | ±50 ppm | 8 | ±30 ppm | ±5 ppm | 0?C to +70?C | 20 pF |
| M1001S609 4.000000 | ATSM-49-R | ±100 ppm | 4 | ±30 ppm | ±3 ppm | -40?C to +125?C | 18 pF |
