ELS25-32.768kHz-6-2-T,8038mm晶體,AEL時鐘晶振,陶瓷晶振，英國進口晶振，AEL艾爾晶振，型號：ELS25系列，編碼為：ELS25-32.768kHz-6-2-T，頻率：32.768KHz，負載電容：6pF，頻率容差：±20ppm，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：8.0x3.8x2.5mm，時鐘晶體，四腳貼片晶振，石英晶振，無源晶振，8038晶振，SMD晶振，石英晶體諧振器，陶瓷晶振，具有超小型晶振，輕薄型晶振，高品質晶振，耐熱及耐環境特點，應用于：移動通訊晶振，時鐘晶振，儀器儀表晶振，測試設備晶振，汽車電子晶振，智能家居晶振等應用。

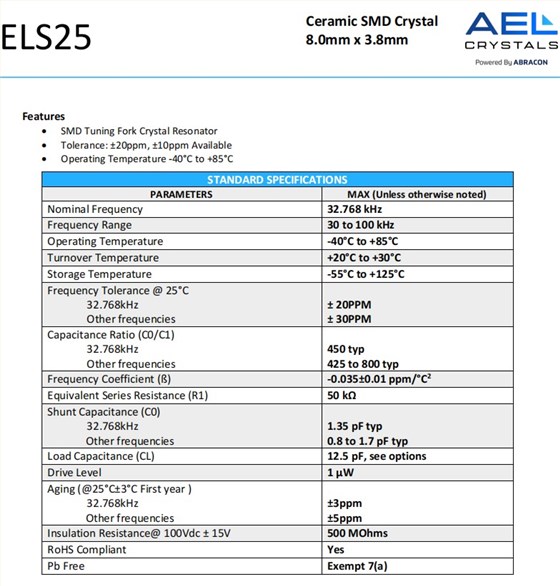

ELS25-32.768kHz-6-2-T,8038mm晶體,AEL時鐘晶振,陶瓷晶振,參數表
PARAMETERS
MAX (Unless otherwise noted)
Nominal Frequency
32.768 kHz
Frequency Range
30 to 100 kHz
Operating Temperature
-40°C to +85°C
Turnover Temperature
+20°C to +30°C
Storage Temperature
-55°C to +125°C
Frequency Tolerance @ 25°C
32.768kHz
Other frequencies
± 20PPM
± 30PPM
Capacitance Ratio (C0/C1)
32.768kHz
Other frequencies
450 typ
425 to 800 typ
Frequency Coefficient (β)
-0.035±0.01 ppm/°C2
Equivalent Series Resistance (R1)
50 kΩ
Shunt Capacitance (C0)
32.768kHz
Other frequencies
1.35 pF typ
0.8 to 1.7 pF typ
Load Capacitance (CL)
12.5 pF, see options
Drive Level
1 μW
Aging (@25°C±3°C First year )
32.768kHz
Other frequencies
±3ppm
±5ppm
Insulation Resistance@ 100Vdc ± 15V
500 MOhms
RoHS Compliant
Yes
Pb Free
Exempt 7(a)
