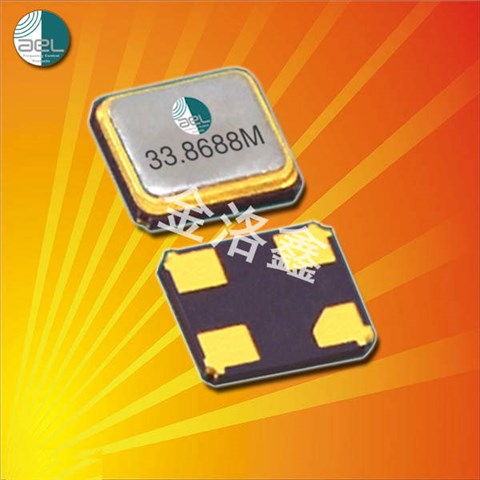

ELM12W-38.000MHz-6-R120-D7X-T|1612mm|38MHz|6pf,ELM12W-38.000MHz-6-R120-D7X-T晶振,1612mm晶振,頻率38MHz,負載6pf,超小型晶振,AEL進口晶振,小型通信設備晶振,無線網絡晶振,智能穿戴設備晶振,物聯網晶振.

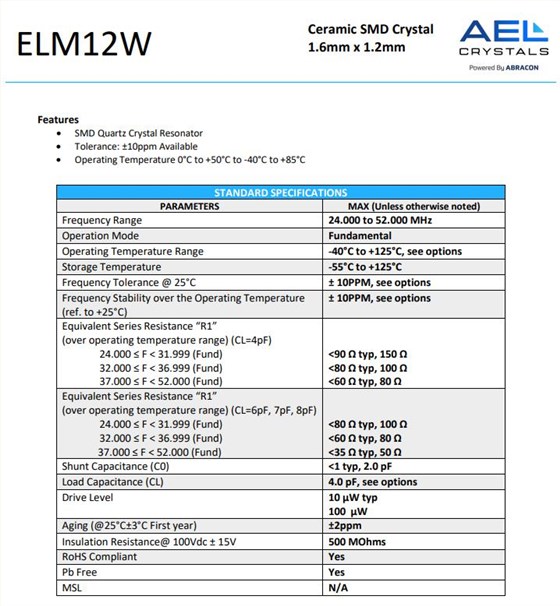

ELM12W-38.000MHz-6-R120-D7X-T|1612mm|38MHz|6pf參數表
| 規格參數 | MAX(除非有特殊說明) | |||||||
| 頻率 | 38MHz | |||||||
| 操作方式 | Fundamental | |||||||
| 工作溫度 | -40Cto+85°C | |||||||
| 保存溫度 | -55°Cto+125°C | |||||||
| 頻率公差 @ 25°C | ±15PPM | |||||||
| 頻率穩定性(ref. to +25°C) |
±20PPM |
|||||||
| 等效串聯電阻(ESR) | 80Ω | |||||||
| 并聯電容(C0) | 2.0pF | |||||||
| 負載電容 (CL) | 6pF | |||||||
| 激勵功率 |
10μWTyp 100μW |
|||||||
| 老化性(@25°C±3°C First year) | ±2ppm | |||||||
| 絕緣電阻@ 100Vdc ± 15V | 500MOhms | |||||||
| 通過無鉛認證 | Yes | |||||||
| 無鉛 | Yes | |||||||
| MSL | N/A | |||||||

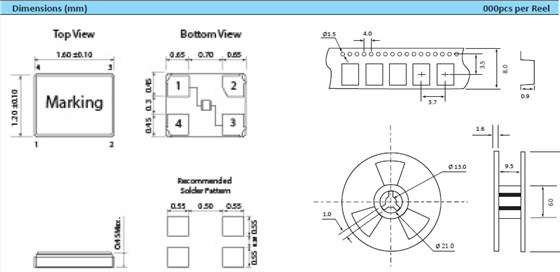

ELM12W-38.000MHz-6-R120-D7X-T|1612mm|38MHz|6pf尺寸圖
| AEL原廠編碼 | 品牌 | 型號 | 工作溫度 | 頻率 | 頻率穩定度 | 頻率公差 | 負載 |
| ELM12W-25.000MHz-6-R120-D7X-T | AEL晶振 | ELM12W | -40°C ~ 85°C | 25 MHz | ±20ppm | ±15ppm | 6 pF |
| ELM12W-26.000MHz-6-R120-D7X-T | AEL晶振 | ELM12W | -40°C ~ 85°C | 26 MHz | ±20ppm | ±15ppm | 6 pF |
| ELM12W-27.000MHz-6-R120-D7X-T | AEL晶振 | ELM12W | -40°C ~ 85°C | 27 MHz | ±20ppm | ±15ppm | 6 pF |
| ELM12W-28.000MHz-6-R120-D7X-T | AEL晶振 | ELM12W | -40°C ~ 85°C | 28 MHz | ±20ppm | ±15ppm | 6 pF |
| ELM12W-29.000MHz-6-R120-D7X-T | AEL晶振 | ELM12W | -40°C ~ 85°C | 29 MHz | ±20ppm | ±15ppm | 6 pF |
| ELM12W-30.000MHz-6-R120-D7X-T | AEL晶振 | ELM12W | -40°C ~ 85°C | 30 MHz | ±20ppm | ±15ppm | 6 pF |
| ELM12W-31.000MHz-6-R120-D7X-T | AEL晶振 | ELM12W | -40°C ~ 85°C | 31 MHz | ±20ppm | ±15ppm | 6 pF |
| ELM12W-32.000MHz-6-R120-D7X-T | AEL晶振 | ELM12W | -40°C ~ 85°C | 32 MHz | ±20ppm | ±15ppm | 6 pF |
| ELM12W-33.000MHz-6-R120-D7X-T | AEL晶振 | ELM12W | -40°C ~ 85°C | 33 MHz | ±20ppm | ±15ppm | 6 pF |
| ELM12W-34.000MHz-6-R120-D7X-T | AEL晶振 | ELM12W | -40°C ~ 85°C | 34 MHz | ±20ppm | ±15ppm | 6 pF |
| ELM12W-35.000MHz-6-R120-D7X-T | AEL晶振 | ELM12W | -40°C ~ 85°C | 35 MHz | ±20ppm | ±15ppm | 6 pF |
| ELM12W-36.000MHz-6-R120-D7X-T | AEL晶振 | ELM12W | -40°C ~ 85°C | 36 MHz | ±20ppm | ±15ppm | 6 pF |
| ELM12W-37.000MHz-6-R120-D7X-T | AEL晶振 | ELM12W | -40°C ~ 85°C | 37 MHz | ±20ppm | ±15ppm | 6 pF |
| ELM12W-38.000MHz-6-R120-D7X-T | AEL晶振 | ELM12W | -40°C ~ 85°C | 38 MHz | ±20ppm | ±15ppm | 6 pF |
| ELM12W-39.000MHz-6-R120-D7X-T | AEL晶振 | ELM12W | -40°C ~ 85°C | 39 MHz | ±20ppm | ±15ppm | 6 pF |
| ELM12W-40.000MHz-6-R120-D7X-T | AEL晶振 | ELM12W | -40°C ~ 85°C | 40 MHz | ±20ppm | ±15ppm | 6 pF |
| ELM12W-41.000MHz-6-R120-D7X-T | AEL晶振 | ELM12W | -40°C ~ 85°C | 41 MHz | ±20ppm | ±15ppm | 6 pF |
| ELM12W-24.000MHz-6-R120-D7X-T | AEL晶振 | ELM12W | -40°C ~ 85°C | 24 MHz | ±20ppm | ±15ppm | 6 pF |
