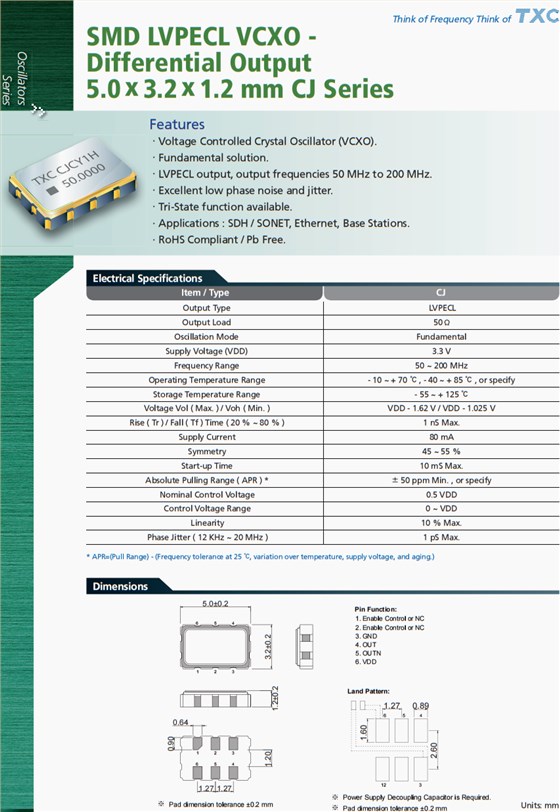

TXC壓控差分晶振,定速巡航專業晶振,CJ-61.440MBE-T晶振，CJ系列SMD LVPECL VCXO -差分輸出，5.0 x 3.2 x 1.2 mm，特性電壓控制晶體振蕩器(VCXO)?；镜慕鉀Q方案。LVPECL輸出，輸出頻率50mhz ~ 200mhz。出色的低相位噪聲和抖動。三態功能。應用范圍:SDH / SONET，以太網，基站。符合RoHS標準/無鉛。臺灣TXC晶振公司，高品質晶振，有源晶振，5032晶振，六腳晶振，貼片晶振，壓控晶振，VCXO晶振，LVPECL晶振，航空航天晶振，小尺寸晶振，高性能晶振。
TXC壓控差分晶振,定速巡航專業晶振,CJ-61.440MBE-T晶振
型號
CJ
輸出類型
LVPECL
輸出負載
50Ω
振動模式
Fundamental
電源電壓
3.3 V
頻率范圍
50 ~ 200 MHz
工作溫度范圍
- 10 ~ + 70 ℃ , - 40 ~ + 85 ℃ , or specify
儲存溫度范圍
- 55 ~ + 125 ℃
電壓最大值/最小值
VDD - 1.62 V / VDD - 1.025 V
上升/下降時間
1 nS Max.
供應電流
80 mA
對稱性
45 ~ 55 %
啟動時間
10 mS Max.
絕對牽引范圍
± 50 ppm Min. , or specify
標稱控制電壓
0.5 VDD
控制電壓范圍
0 ~ VDD
線性
10 % Max.
相位抖動
1 pS Max.
TXC壓控差分晶振,定速巡航專業晶振,CJ-61.440MBE-T晶振
| TXC原廠編碼 | 生產商品牌 | 型號 | 頻率 | 輸出 | 電源電壓 | 頻率穩定度 | 工作溫度 |
| CJ-153.600MBE-T | TXC晶振 | CJ | 153.6 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| CF-125.000MBE-T | TXC晶振 | CF | 125 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| CB-100.000MBE-T | TXC晶振 | CB | 100 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| CB-125.000MBE-T | TXC晶振 | CB | 125 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| CF-100.000MBE-T | TXC晶振 | CF | 100 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| CF-155.520MBB-T | TXC晶振 | CF | 155.52 MHz | LVDS | 3.3V | ±50ppm | -10°C ~ 70°C |
| CF-150.000MBB-T | TXC晶振 | CF | 150 MHz | LVDS | 3.3V | ±50ppm | -10°C ~ 70°C |
| CF-133.3330MBB-T | TXC晶振 | CF | 133.333 MHz | LVDS | 3.3V | ±50ppm | -10°C ~ 70°C |
| CF-156.250MBB-T | TXC晶振 | CF | 156.25 MHz | LVDS | 3.3V | ±50ppm | -10°C ~ 70°C |
| CJ-61.440MBE-T | TXC晶振 | CJ | 61.44 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| CJ-125.000MBE-T | TXC晶振 | CJ | 125 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| CJ-122.880MBE-T | TXC晶振 | CJ | 122.88 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| CJ-156.250MBE-T | TXC晶振 | CJ | 156.25 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| CS-425.000MCC-T | TXC晶振 | CS | 425 MHz | LVPECL | 2.5V | ±100ppm | -10°C ~ 70°C |
| CS-78.125MBB-T | TXC晶振 | CS | 78.125 MHz | LVPECL | 3.3V | ±50ppm | -10°C ~ 70°C |
| CS-425.000MBB-T | TXC晶振 | CS | 425 MHz | LVPECL | 3.3V | ±50ppm | -10°C ~ 70°C |
| CS-78.125MCB-T | TXC晶振 | CS | 78.125 MHz | LVPECL | 2.5V | ±50ppm | -10°C ~ 70°C |
| CS-425.000MCB-T | TXC晶振 | CS | 425 MHz | LVPECL | 2.5V | ±50ppm | -10°C ~ 70°C |
| CT-156.250MBC-T | TXC晶振 | CT | 156.25 MHz | LVDS | 3.3V | ±100ppm | -10°C ~ 70°C |
| CT-212.500MBC-T | TXC晶振 | CT | 212.5 MHz | LVDS | 3.3V | ±100ppm | -10°C ~ 70°C |
| CT-312.500MBC-T | TXC晶振 | CT | 312.5 MHz | LVDS | 3.3V | ±100ppm | -10°C ~ 70°C |
| CT-425.000MBC-T | TXC晶振 | CT | 425 MHz | LVDS | 3.3V | ±100ppm | -10°C ~ 70°C |
| CT-425.000MCC-T | TXC晶振 | CT | 425 MHz | LVDS | 2.5V | ±100ppm | -10°C ~ 70°C |
| CT-425.000MBB-T | TXC晶振 | CT | 425 MHz | LVDS | 3.3V | ±50ppm | -10°C ~ 70°C |
| CT-425.000MCB-T | TXC晶振 | CT | 425 MHz | LVDS | 2.5V | ±50ppm | -10°C ~ 70°C |
| CS-106.250MCC-T | TXC晶振 | CS | 106.25 MHz | LVPECL | 2.5V | ±100ppm | -10°C ~ 70°C |
| CS-156.250MCC-T | TXC晶振 | CS | 156.25 MHz | LVPECL | 2.5V | ±100ppm | -10°C ~ 70°C |
| CS-212.500MCC-T | TXC晶振 | CS | 212.5 MHz | LVPECL | 2.5V | ±100ppm | -10°C ~ 70°C |
| CS-312.500MCC-T | TXC晶振 | CS | 312.5 MHz | LVPECL | 2.5V | ±100ppm | -10°C ~ 70°C |
| CT-156.250MCC-T | TXC晶振 | CT | 156.25 MHz | LVDS | 2.5V | ±100ppm | -10°C ~ 70°C |
| CT-212.500MCC-T | TXC晶振 | CT | 212.5 MHz | LVDS | 2.5V | ±100ppm | -10°C ~ 70°C |
| CT-312.500MCC-T | TXC晶振 | CT | 312.5 MHz | LVDS | 2.5V | ±100ppm | -10°C ~ 70°C |
| CS-78.125MBC-T | TXC晶振 | CS | 78.125 MHz | LVPECL | 3.3V | ±100ppm | -10°C ~ 70°C |
| CS-106.250MBC-T | TXC晶振 | CS | 106.25 MHz | LVPECL | 3.3V | ±100ppm | -10°C ~ 70°C |
| CS-156.250MBC-T | TXC晶振 | CS | 156.25 MHz | LVPECL | 3.3V | ±100ppm | -10°C ~ 70°C |
| CS-212.500MBC-T | TXC晶振 | CS | 212.5 MHz | LVPECL | 3.3V | ±100ppm | -10°C ~ 70°C |
| CS-312.500MBC-T | TXC晶振 | CS | 312.5 MHz | LVPECL | 3.3V | ±100ppm | -10°C ~ 70°C |
| CS-425.000MBC-T | TXC晶振 | CS | 425 MHz | LVPECL | 3.3V | ±100ppm | -10°C ~ 70°C |
| CS-78.125MCC-T | TXC晶振 | CS | 78.125 MHz | LVPECL | 2.5V | ±100ppm | -10°C ~ 70°C |
| CB-133.330MBE-T | TXC晶振 | CB | 133.33 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| CB-150.000MBE-T | TXC晶振 | CB | 150 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| CB-156.250MBE-T | TXC晶振 | CB | 156 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| CBA2570001 | TXC晶振 | CB | 125 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| CBA3300002 | TXC晶振 | CB | 133.33 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
