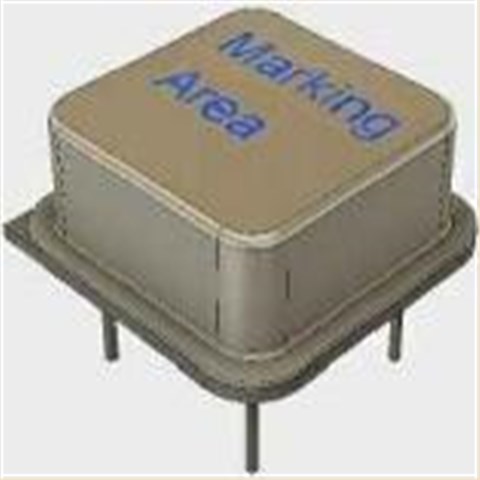

Anderson品牌,AE305晶振,正方形鐘振,6G光纖通道晶振,歐美晶振,Anderson品牌,AE305進口有源晶振,正方形鐘振,石英晶體振蕩器,四腳插件晶振,尺寸13.2×13.2×5.5mm,抗沖擊晶振,抗振動晶振,無鉛環保晶振,6G光纖通道晶振,消費電子產品晶振,網絡交換機晶振,服務器和存儲系統晶振.
Anderson品牌,AE305晶振,正方形鐘振,6G光纖通道晶振規格表
Output Waveform(Symmetrical
__squarewave
23.999 MHz
49.999 MHz
155.520 MHz

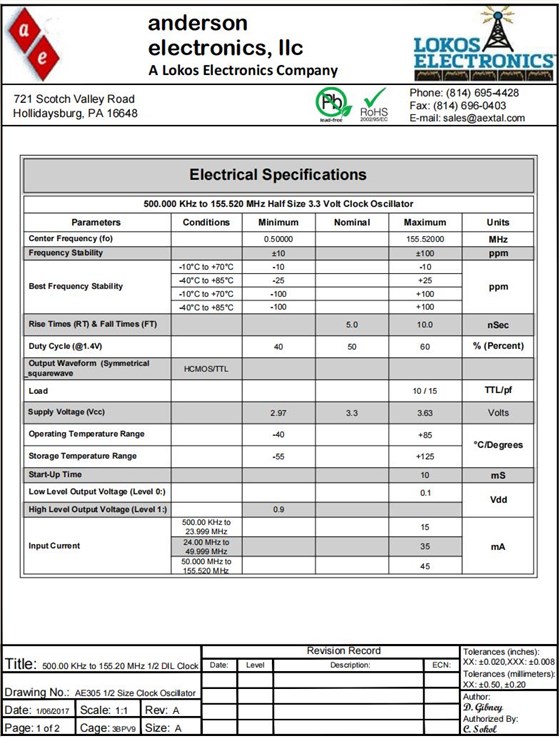

500.000 KHz to 155.520 MHz Half Size 3.3 Volt Clock Oscillator
Parameters
Conditions
Minimum
Nominal
Maximum
Units
Center Frequency (fo)
0.50000
155.52000
MHz
Frequency Stability
±10
±100
ppm
Best Frequency Stability
-10°C to +70°C
-10
-10
ppm
-40°C to +85°C
-25
+25
-10°C to +70°C
-100
+100
-40°C to +85°C
-100
+100
Rise Times (RT) & Fall Times (FT)
5.0
10.0
nSec
Duty Cycle (@1.4V)
40
50
60
% (Percent)
HCMOS/TTL
Load
10 / 15
TTL/pf
Supply Voltage (Vcc)
2.97
3.3
3.63
Volts
Operating Temperature Range
-40
+85
oc/Degrees
Storage Temperature Range
-55
+125
Start-Up Time
10
mS
Low Level Output Voltage (Level 0:)
0.1
Vdd
High Level Output Voltage (Level 1:)
0.9
Input Current
15
mA
35
45

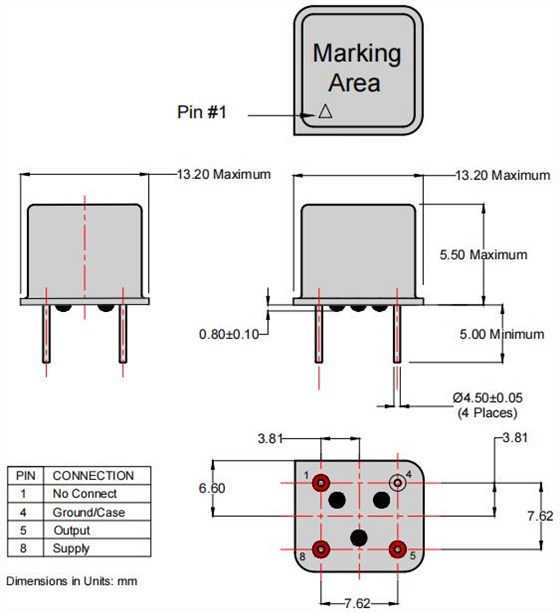

Anderson品牌,AE305晶振,正方形鐘振,6G光纖通道晶振尺寸圖
