BXFMSA-137M-SCCT,Bliley百利晶振,衛星通信晶振,航空電子晶振
頻率：137MHz

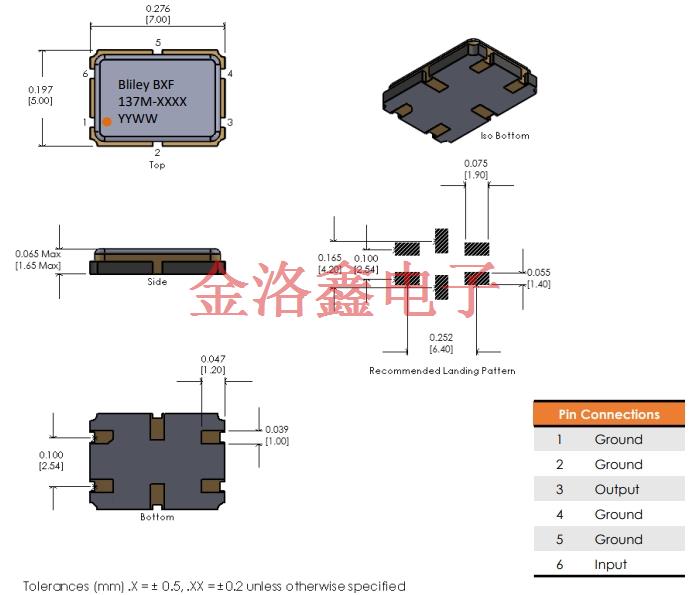

尺寸：7.0mm x 5.0mm
BXFMSA-137M-SCCT,Bliley百利晶振,衛星通信晶振,航空電子晶振
BXFMSA-137M-SCCT晶振,137MHz,精準匹配衛星通信,航空電子等領域關鍵頻段需求,為設備提供穩定時序基準.采用軍事通信晶振密封封裝,外殼具備優異密封性與抗腐蝕性,可抵御真空,高能粒子侵蝕及機械沖擊,適配極端環境.既能作為衛星通信核心頻率源,保障星地數據傳輸,衛星姿態控制等任務的穩定開展,經定制優化后,又可適配航空電子特種場景,滿足特種電子設備的嚴苛需求.適用衛星通信系統(星地數據傳輸,姿態控制),航空電子特種設備(航空雷達,敵我識別系統),高可靠性要求的工業控制設備等.
BXFMSA-137M-SCCT,Bliley百利晶振,衛星通信晶振,航空電子晶振
| 原廠型號 Original model ： | BXFMSA-137M-SCCT | 品牌 brand ： | Bliley晶振 |
| 品牌 brand ： | Bliley晶振 | ESR（等效串聯電阻） Resistance) | - |
| 型號名稱 Model name： | BXFMSA | 溫度 Operating Temperature | -40ºC to +85ºC |
| Type 系列： | MHz Crystal | 腳位 Termination： | 6 pad |
| 頻率 frequency ： | 137M | 封裝類型 Package Type： | 6-SMD |
| Frequency Stability頻率穩定度 | - | 高度 Package Height： | 1.65mm |
| frequency tolerance頻率容差 | ±10ppm | 最小包裝數 MPQ ： | 1000 |
| Load capacitance 負載電容 | - | 包裝 Packaging： | Tape and Reel |
| Size / Dimension 尺寸 | 7050貼片晶振 | 安裝方式 Mounting Style： | Surface Mount |
BXFMSA-137M-SCCT,Bliley百利晶振,衛星通信晶振,航空電子晶振
BXFMSA-137M-SCCT,Bliley百利晶振,衛星通信晶振,航空電子晶振
| OCETGCJTNF-48.000000 | Taitien | OC | XO (Standard) | 48 MHz | CMOS | 3.3V | ±50ppm |
| OXETDCJANF-0.032768 | Taitien | OX | XO (Standard) | 32.768 kHz | CMOS | 3.3V | ±25ppm |
| OCETDLJANF-25.000000 | Taitien | OC | XO (Standard) | 25 MHz | CMOS | 3.3V | ±25ppm |
| TZKTADSANF-26.000000 | Taitien | TZ | TCXO | 26 MHz | Clipped Sine Wave | 1.8V | ±500ppb |
| TXEABLSANF-24.000000 | Taitien | TX | VCTCXO | 24 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm |
| TXEABLSANF-26.000000 | Taitien | TX | VCTCXO | 26 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm |
| TXKTPCSANF-32.000000 | Taitien | TX | TCXO | 32 MHz | Clipped Sine Wave | 1.8V | ±1.5ppm |
| TXEAADSANF-20.000000 | Taitien | TX | VCTCXO | 20 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb |
| TXETALSANF-10.000000 | Taitien | TX | TCXO | 10 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb |
| TYETBCSANF-32.000000 | Taitien | TY | TCXO | 32 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm |
| TYETBLSANF-40.000000 | Taitien | TY | TCXO | 40 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm |
| TYEAPLSANF-40.000000 | Taitien | TY | VCTCXO | 40 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1.5ppm |
| TYETACSANF-26.000000 | Taitien | TY | TCXO | 26 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb |
| TYEAACSANF-38.400000 | Taitien | TY | VCTCXO | 38.4 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb |
| VLCUWCWTNF-100.000000 | Taitien | VLCU | VCXO | 100 MHz | Sine Wave | 5V | ±35ppm |
| TSEAALJANF-10.000000 | Taitien | TS | VCTCXO | 10 MHz | CMOS | 3.3V | ±500ppb |
| TWETALJANF-40.000000 | Taitien | TW | TCXO | 40 MHz | CMOS | 3.3V | ±500ppb |
| TWEAKLJANF-20.000000 | Taitien | TW | VCTCXO | 20 MHz | CMOS | 3.3V | ±280ppb |
| TTETKLJANF-10.000000 | Taitien | TT | TCXO | 10 MHz | CMOS | 3.3V | ±280ppb |
| TTEAKLJANF-10.000000 | Taitien | TT | VCTCXO | 10 MHz | CMOS | 3.3V | ±280ppb |
| TTETKLSANF-10.000000 | Taitien | TT | TCXO | 10 MHz | Clipped Sine Wave | 3.3V | ±280ppb |
| TSEATLJANF-10.000000 | Taitien | TS | VCTCXO | 10 MHz | CMOS | 3.3V | ±4.6ppm |
| TWETMCJANF-10.000000 | Taitien | TW | TCXO | 10 MHz | CMOS | 3.3V | ±100ppb |
| TTEAALJANF-50.000000 | Taitien | TT | VCTCXO | 50 MHz | CMOS | 3.3V | ±500ppb |
| NNENCLJNNF-10.000000 | Taitien | NN | OCXO | 10 MHz | CMOS | 3.3V | ±20ppb |
| NI-10M-2400 | Taitien | NI-10M-2400 | OCXO | 10 MHz | LVTTL | 5V | ±3ppb |
| NI-10M-2403 | Taitien | NI-10M-2400 | OCXO | 10 MHz | LVTTL | 5V | ±3ppb |
| NI-10M-2503 | Taitien | NI-10M-2500 | OCXO | 10 MHz | Sine Wave | 5V | ±3ppb |
| NI-100M-2900 | Taitien | NI-100M-2900 | OCXO | 100 MHz | Sine Wave | 12V | ±50ppb |
| NA-100M-6822 | Taitien | NA-100M-6800 | OCXO | 100 MHz | Sine Wave | 12V | ±100ppb |
| OCKTGLJANF-0.032768 | Taitien | OC | XO (Standard) | 32.768 kHz | CMOS | 3.3V | ±50ppm |
| OCETGLJTNF-100.000000 | Taitien | OC | XO (Standard) | 100 MHz | CMOS | 3.3V | ±50ppm |
| TXETCLSANF-40.000000 | Taitien | TX | TCXO | 40 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2ppm |
| TXETDDSANF-16.000000 | Taitien | TX | TCXO | 16 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2.5ppm |
| TXETDCSANF-20.000000 | Taitien | TX | TCXO | 20 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2.5ppm |
| TXETBLSANF-40.000000 | Taitien | TX | TCXO | 40 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm |
| TXEABDSANF-32.000000 | Taitien | TX | VCTCXO | 32 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm |
| TXETDDSANF-30.000000 | Taitien | TX | TCXO | 30 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2.5ppm |
| TXETBLSANF-26.000000 | Taitien | TX | TCXO | 26 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm |
| TXEAPDSANF-19.200000 | Taitien | TX | VCTCXO | 19.2 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1.5ppm |
| TXEAPLSANF-40.000000 | Taitien | TX | VCTCXO | 40 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1.5ppm |
| TXEACDSANF-26.000000 | Taitien | TX | VCTCXO | 26 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2ppm |
| TXEACDSANF-20.000000 | Taitien | TX | VCTCXO | 20 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2ppm |
| TXETBLSANF-27.000000 | Taitien | TX | TCXO | 27 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm |
| TXETBLSANF-19.200000 | Taitien | TX | TCXO | 19.2 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm |
| TXETALSANF-26.000000 | Taitien | TX | TCXO | 26 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb |
| TXEAACSANF-40.000000 | Taitien | TX | VCTCXO | 40 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb |
| TXEAADSANF-25.000000 | Taitien | TX | VCTCXO | 25 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb |
| TYETBLSANF-38.400000 | Taitien | TY | TCXO | 38.4 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm |
| TYETBCSANF-50.000000 | Taitien | TY | TCXO | 50 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±1ppm |
| TYETACSANF-32.000000 | Taitien | TY | TCXO | 32 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb |
| TYETACSANF-20.000000 | Taitien | TY | TCXO | 20 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb |
| PYEUCJJANF-100.000000 | Taitien | FASTXO | XO (Standard) | 100 MHz | CMOS | 2.8V ~ 3.3V | ±20ppm |
| TWEAALSANF-10.000000 | Taitien | TW | VCTCXO | 10 MHz | Clipped Sine Wave | 3.3V | ±500ppb |
| TTETKLJANF-30.720000 | Taitien | TT | TCXO | 30.72 MHz | CMOS | 3.3V | ±280ppb |
| TTEAMCSANF-10.000000 | Taitien | TT | VCTCXO | 10 MHz | Clipped Sine Wave | 3.3V | ±100ppb |
| OYKTGLJANF-0.032768 | Taitien | OY | XO (Standard) | 32.768 kHz | CMOS | 1.8V | ±50ppm |
| OYETDLJANF-25.000000 | Taitien | OY | XO (Standard) | 25 MHz | CMOS | 3.3V | ±25ppm |
| TXETDDSANF-19.200000 | Taitien | TX | TCXO | 19.2 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2.5ppm |
| TXETCLSANF-25.000000 | Taitien | TX | TCXO | 25 MHz | Clipped Sine Wave | 2.8V ~ 3.3V | ±2ppm |
