5G無線模塊專用晶振SG3225EAN編碼X1G004251002100

來源：金洛鑫瀏覽：- 發布日期：2022-09-09 15:22:20【大中小】

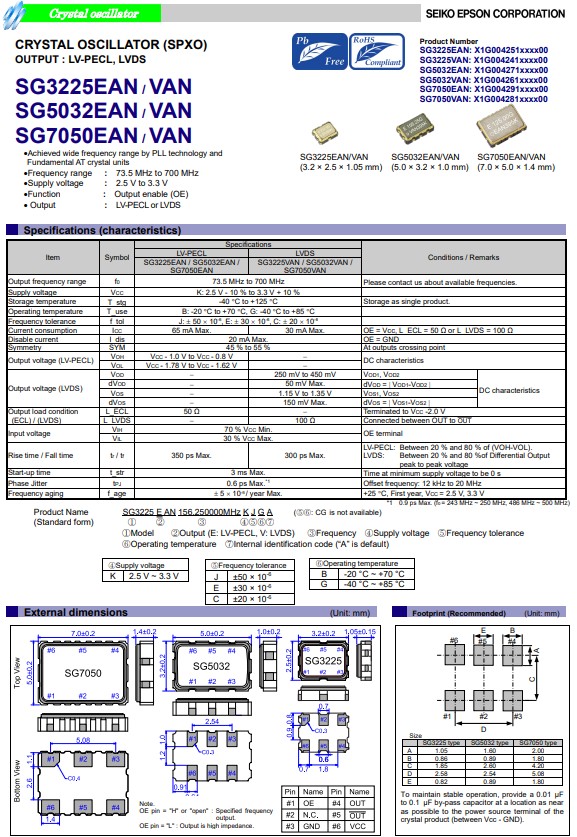

愛普生晶振SG3225EAN差分晶振通過使用PLL技術和AT晶體單元來實現寬頻率范圍,為用戶提供73.5MHZ至700MHZ高頻,可選任一頻點.具有低電流,低電源電壓可達到低值1V,這對于普通貼片晶振而言是做不到的,此款差分晶振的工作電壓范圍在2.5V至3.3V.差分晶振具有LVDS,HCSL和LV-PECL三態輸出功能,愛普生SG3225EAN差分晶振就是具有LV-PECL輸出功能的一款差分石英晶體振蕩器.
SG3225EAN晶振采用3.2x2.5mm封裝,具有6個腳位貼片晶振,耐高溫儲存溫度可達-40℃~+125℃范圍,工作溫度范圍-40℃~85℃.低老化的特點±5x10-6/year Max.差分晶振在產品中使用具有高可靠性.差分晶振的精度值（PPM）可精確到±10PM,±20PM,±30PM,±50PM等.

5G無線模塊專用晶振SG3225EAN編碼X1G004251002100

石英晶體振蕩器	型號	頻率	尺寸	輸出波	電源電壓	工作溫度
X1G004251000100	SG3225EAN	100.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251000200	SG3225EAN	156.250000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G004251000900	SG3225EAN	212.500000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251001200	SG3225EAN	75.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251001500	SG3225EAN	156.250000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251002000	SG3225EAN	700.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251002100	SG3225EAN	125.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251002400	SG3225EAN	100.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251002600	SG3225EAN	400.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251002800	SG3225EAN	212.500000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251003200	SG3225EAN	150.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251003400	SG3225EAN	156.250000MHz	3.20x2.50x1.20mm	LV-PECL Crystal	2.250 to 3.630 V	-40 to 85 °C
X1G004251003500	SG3225EAN	312.500000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251006200	SG3225EAN	100.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G004251010000	SG3225EAN	114.285000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C

X1G004251012100	SG3225EAN	161.132812MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251012200	SG3225EAN	155.520000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G004251012300	SG3225EAN	133.330000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251012400	SG3225EAN	322.562500MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251012500	SG3225EAN	133.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251012600	SG3225EAN	322.265625MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251012700	SG3225EAN	425.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251012800	SG3225EAN	156.253906MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251013100	SG3225EAN	360.500000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G004251013200	SG3225EAN	644.531200MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251013800	SG3225EAN	644.531250MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251013900	SG3225EAN	121.500000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G004251014000	SG3225EAN	650.000000MHz	3.20x2.50x1.20mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C

5G無線模塊專用晶振SG3225EAN編碼X1G004251002100
隨著無線網絡,智能家電,4G,5G網絡,自動駕駛汽車等高科技的發展,對于石英晶體振蕩器的使用性能也要求越來越高.比如現在我們所依賴的網絡,單從速度上就不能滿足我們的需求了,而高精度SG3225EAN晶振就是為千兆光纖通信而生,為了我們更好的使用高速網絡,為滿足網絡設備對高標準參考時鐘的需求.
