當前位置：首頁 » 石英晶振 » AKER晶振 » C7S-8.000-18-1030-X-R,臺灣進口晶振,智能手機晶振,C7S無源進口晶振

prevnext

C7S-8.000-18-1030-X-R,臺灣進口晶振,智能手機晶振,C7S無源進口晶振

頻率：8 MHz

尺寸：7.0mm x 5.0mm

C7S-8.000-18-1030-X-R,臺灣進口晶振,智能手機晶振,C7S無源進口晶振,實現全方位精準適配.在通信功能中,8.000MHz頻率可作為手機基帶芯片的基準時鐘,通過內部PLL倍頻至5G通信所需的高頻載波信號,低相位噪聲特性確保通話音質清晰,5G網絡下載速率穩定,避免因時鐘干擾導致的信號斷連或網速波動；在傳感器模塊中,該晶振可為陀螺儀,加速度傳感器提供數據采樣時鐘,保障手機計步,屏幕自動旋轉等功能的準確性,溫漂穩定性則避免了低溫環境下傳感器數據失真,在多媒體功能中,其穩定的頻率輸出能驅動音頻解碼芯片,屏幕顯示控制器,確保高清視頻播放無卡頓,音頻輸出無雜音.

訂購熱線：0755-27837162

JLX-1

C7S-8.000-18-1030-X-R,臺灣進口晶振,智能手機晶振,C7S無源進口晶振

C7S系列無源晶振,C7S-8.000-18-1030-X-R具備該系列專屬的性能與集成優勢,完美適配智能手機的設計需求.C7S系列采用優化的無源電路架構,無需內置驅動芯片,僅需搭配簡單的外部匹配電容即可工作,相比有源晶振體積更小,功耗更低,能適配智能手機內部緊湊的PCB布局,為電池,攝像頭等大尺寸元件預留更多空間；系列化設計確保該晶振與同系列其他頻率型號(如12MHz,26MHz)的封裝,引腳定義一致,智能手機廠商若需調整時鐘頻率,無需修改PCB設計,僅需替換晶振型號,大幅縮短研發與改款周期.此外,C7S系列晶振的起振速度快(通電后≤1ms穩定輸出),能滿足智能手機快速開機,功能即時響應的需求,避免因時鐘延遲導致的開機慢,APP啟動卡頓等問題,提升用戶使用體驗.

JLX-2

C7S-8.000-18-1030-X-R,臺灣進口晶振,智能手機晶振,C7S無源進口晶振

原廠型號 Original model ：	C7S-8.000-18-1030-X-R	品牌 brand ：	AKER晶振
品牌 brand ：	臺灣安基晶振	ESR（等效串聯電阻） Resistance)	70 Ohms
型號名稱 Model name：	C7S	溫度 Operating Temperature	-40°C ~ 85°C
Type 系列：	MHz Crystal	腳位 Termination：	4 pad
頻率 frequency ：	8 MHz	封裝類型 Package Type：	4-SMD
Frequency Stability頻率穩定度	±30ppm	高度 Package Height：	1.10mm
frequency tolerance頻率容差	±10ppm	最小包裝數 MPQ ：	1000
Load capacitance 負載電容	18pF	包裝 Packaging：	Tape and Reel
Size / Dimension 尺寸	7.00mm x 5.00mm	安裝方式 Mounting Style：	Surface Mount

JLX-3

C7S-8.000-18-1030-X-R,臺灣進口晶振,智能手機晶振,C7S無源進口晶振

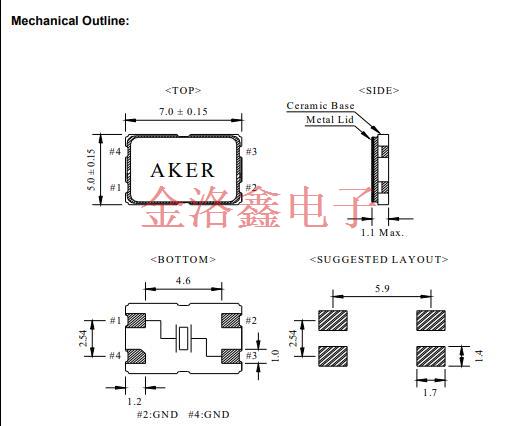

C7S尺寸圖

C7S-8.000-18-1030-X-R,臺灣進口晶振,智能手機晶振,C7S無源進口晶振

C16-26.000-8-1520-R	AKER晶振	C16	MHz Crystal	26 MHz	±20ppm	±15ppm	8pF	120 Ohms
C5S-26.000-16-1010-R	AKER晶振	C5S	MHz Crystal	26 MHz	±10ppm	±10ppm	16pF	25 Ohms
C5S-8.000-18-3030-R	AKER晶振	C5S	MHz Crystal	8 MHz	±30ppm	±30ppm	18pF	150 Ohms
CAA-4.000-18-3050-X-R	AKER晶振	CAA	MHz Crystal	4 MHz	±50ppm	±30ppm	18pF	120 Ohms
CAA-11.0592-18-3050-R	AKER晶振	CAA	MHz Crystal	11.0592 MHz	±50ppm	±30ppm	18pF	50 Ohms
CAA-8.000-18-3050-X-R	AKER晶振	CAA	MHz Crystal	8 MHz	±50ppm	±30ppm	18pF	60 Ohms
CAA-40.000-18-3050-R	AKER晶振	CAA	MHz Crystal	40 MHz	±50ppm	±30ppm	18pF	80 Ohms
C3E-24.000-9-1010-R	AKER晶振	C3E	MHz Crystal	24 MHz	±10ppm	±10ppm	9pF	50 Ohms
C3E-12.000-12-1020-X-R	AKER晶振	C3E	MHz Crystal	12 MHz	±10ppm	±20ppm	12pF	120 Ohms
C3E-12.000-18-1020-X-R	AKER晶振	C3E	MHz Crystal	12 MHz	±10ppm	±20ppm	18pF	120 Ohms
C3E-25.000-20-1015-X-R	AKER晶振	C3E	MHz Crystal	25 MHz	±15ppm	±10ppm	20pF	40 Ohms
C3E-24.000-9-1015-X-R	AKER晶振	C3E	MHz Crystal	24 MHz	±15ppm	±10ppm	9pF	50 Ohms
C3E-16.000-9-1015-X-R	AKER晶振	C3E	MHz Crystal	16 MHz	±15ppm	±10ppm	9pF	60 Ohms
C2E-12.000-18-1020-R	AKER晶振	C2E	MHz Crystal	12 MHz	±20ppm	±10ppm	18pF	200 Ohms
C3E-8.000-20-1020-R	AKER晶振	C3E	MHz Crystal	8 MHz	±20ppm	±10ppm	20pF	150 Ohms
C3E-8.000-18-1020-X-R	AKER晶振	C3E	MHz Crystal	8 MHz	±20ppm	±10ppm	18pF	500 Ohms
C3E-8.000-8-1015-R	AKER晶振	C3E	MHz Crystal	8 MHz	±10ppm	±15ppm	8pF	500 Ohms
C3E-12.000-8-2050-X1-R	AKER晶振	C3E X1	MHz Crystal	12 MHz	±50ppm	±20ppm	8pF	80 Ohms
C3E-16.000-10-3050-X1-R	AKER晶振	C3E X1	MHz Crystal	16 MHz	±50ppm	±30ppm	10pF	60 Ohms
C16-32.000-8-1515-X-R	AKER晶振	C16	MHz Crystal	32 MHz	±15ppm	±15ppm	8pF	100 Ohms
C3E-20.000-8-3050-X1-R	AKER晶振	C3E X1	MHz Crystal	20 MHz	±50ppm	±30ppm	8pF	50 Ohms
C2E-12.000-18-1020-X-R	AKER晶振	C2E	MHz Crystal	12 MHz	±20ppm	±10ppm	18pF	200 Ohms
C5S-12.000-18-1020-R	AKER晶振	C5S	MHz Crystal	12 MHz	±20ppm	±10ppm	18pF	35 Ohms
C3E-8.000-18-1020-R	AKER晶振	C3E	MHz Crystal	8 MHz	±20ppm	±10ppm	18pF	500 Ohms
C3E-8.000-12-1020-M	AKER晶振	C3E	MHz Crystal	8 MHz	±10ppm	±20ppm	12pF	500 Ohms
C2E-12.000-8-2050-X1-R	AKER晶振	C2E X1	MHz Crystal	12 MHz	±50ppm	±20ppm	8pF	200 Ohms
C3E-16.000-10-2050-X1-R	AKER晶振	C3E X1	MHz Crystal	10 MHz	±50ppm	±20ppm	10pF	60 Ohms
C3E-30.000-8-2050-X1-R	AKER晶振	C3E X1	MHz Crystal	30 MHz	±50ppm	±20ppm	8pF	40 Ohms
C7S-12.000-12-3030-X-R	AKER晶振	C7S	MHz Crystal	12 MHz	±30ppm	±30ppm	12pF	35 Ohms
C7S-8.000-18-1020-R	安基晶振	C7S	MHz Crystal	8 MHz	±20ppm	±10ppm	18pF	40 Ohms
C7S-8.000-18-1030-X-R	安基晶振	C7S	MHz Crystal	8 MHz	±30ppm	±10ppm	18pF	70 Ohms
CA4-16.000-18-3050-R	安基晶振	CA4	MHz Crystal	16 MHz	±50ppm	±30ppm	18pF	40 Ohms
CA4-8.000-16-3050-R	安基晶振	CA4	MHz Crystal	8 MHz	±50ppm	±30ppm	16pF	60 Ohms
C3E-8.000-10-1020-M	安基晶振	C3E	MHz Crystal	8 MHz	±20ppm	±10ppm	10pF	500 Ohms
C16-96.000-8-1520-X2-R	安基晶振	-	MHz Crystal	96 MHz	±15ppm	±20ppm	8pF	-
C1E-76.800-10-1012-X-M	安基晶振	C1E	MHz Crystal	76.8 MHz	±10ppm	±10ppm	10pF	60 Ohms
C1E-80.000-10-1015-X-M	安基晶振	C1E	MHz Crystal	80 MHz	±10ppm	±10ppm	10pF	40 Ohms
C1E-76.800-8-1012-X-M	安基晶振	C1E	MHz Crystal	46.8 MHz	±10ppm	±10ppm	8pF	60 Ohms
C1E-80.000-8-1015-X-M	安基晶振	C1E	MHz Crystal	80 MHz	±10ppm	±10ppm	8pF	10 Ohms
C3E-24.576-12-3030-X-R	安基晶振	C3E	MHz Crystal	24.576 MHz	±30ppm	±30ppm	12pF	100 Ohms
C3E-30.000-12-1020-X-R	安基晶振	C3E	MHz Crystal	30 MHz	±10ppm	±20ppm	12pF	120 Ohms
C3E-12.000-12-1015-R	安基晶振	C3E	MHz Crystal	12 MHz	±15ppm	±10ppm	12pF	100 Ohms
C3E-25.000-8-1015-X-R	安基晶振	C3E	MHz Crystal	25 MHz	±15ppm	±10ppm	8pF	100 Ohms
C3E-26.000-10-1015-X-R3	安基晶振	C3E	MHz Crystal	26 MHz	±15ppm	±10ppm	10pF	100 Ohms
C16-26.000-8-1010-R	安基晶振	C16	MHz Crystal	26 MHz	±10ppm	±10ppm	8pF	150 Ohms
C3E-16.000-8-2050-X1-R	安基晶振	C3E X1	MHz Crystal	16 MHz	±50ppm	±20ppm	8pF	60 Ohms
C3E-8.000-12-1020-R	安基晶振	C3E	MHz Crystal	8 MHz	±20ppm	±10ppm	12pF	500 Ohms
C2E-12.000-10-2050-X1-R	安基晶振	C2E X1	MHz Crystal	12 MHz	±50ppm	±20ppm	10pF	200 Ohms
C1E-96.000-8-1216-X2-R	安基晶振	C1E X2	MHz Crystal	96 MHz	±16ppm	±12ppm	8pF	20 Ohms
C3E-12.000-12-3030-X-R	安基晶振	C3E	MHz Crystal	12 MHz	±30ppm	±30ppm	12pF	100 Ohms
C3E-27.120-12-1010-R	安基晶振	C3E	MHz Crystal	27.12 MHz	±10ppm	±10ppm	12pF	100 Ohms
C3E-24.576-12-1010-R	安基晶振	C3E	MHz Crystal	24.576 MHz	±10ppm	±10ppm	12pF	100 Ohms
C3E-16.000-12-1015-R	安基晶振	C3E	MHz Crystal	16 MHz	±15ppm	±10ppm	12pF	100 Ohms
C3E-13.560-12-1530-X-R	安基晶振	C3E	MHz Crystal	13.56 MHz	±30ppm	±15ppm	12pF	100 Ohms
C2E-16.000-10-1010-R	安基晶振	C2E	MHz Crystal	16 MHz	±10ppm	±10ppm	10pF	90 Ohms
C1E-24.000-10-1015-M	安基晶振	C1E	MHz Crystal	24 MHz	±15ppm	±10ppm	10pF	100 Ohms
C2E-25.000-10-3030-X-M	安基晶振	C2E	MHz Crystal	25 MHz	±30ppm	±30ppm	10pF	100 Ohms
C2E-48.000-10-1020-X-R	安基晶振	C2E	MHz Crystal	48 MHz	±20ppm	±10ppm	10pF	50 Ohms
C3E-20.000-10-3050-X1-R	安基晶振	C3E X1	MHz Crystal	20 MHz	±50ppm	±30ppm	10pF	50 Ohms
C1E-96.000-9.9-1216-X2-R	安基晶振	C1E	MHz Crystal	96 MHz	±16ppm	±12ppm	9.9pF	60 Ohms
